17.3 Remote Control Button
17.3.1 SET Button
To check remote control transmission code and store the transmission code to EEPROM.
o Press “Set” button by using pointer.
o Press “Timer Set” button until a “beep” sound is heard as confirmation of transmission code change.
o LCD returns to original display if remote control does not operate for 30 seconds.

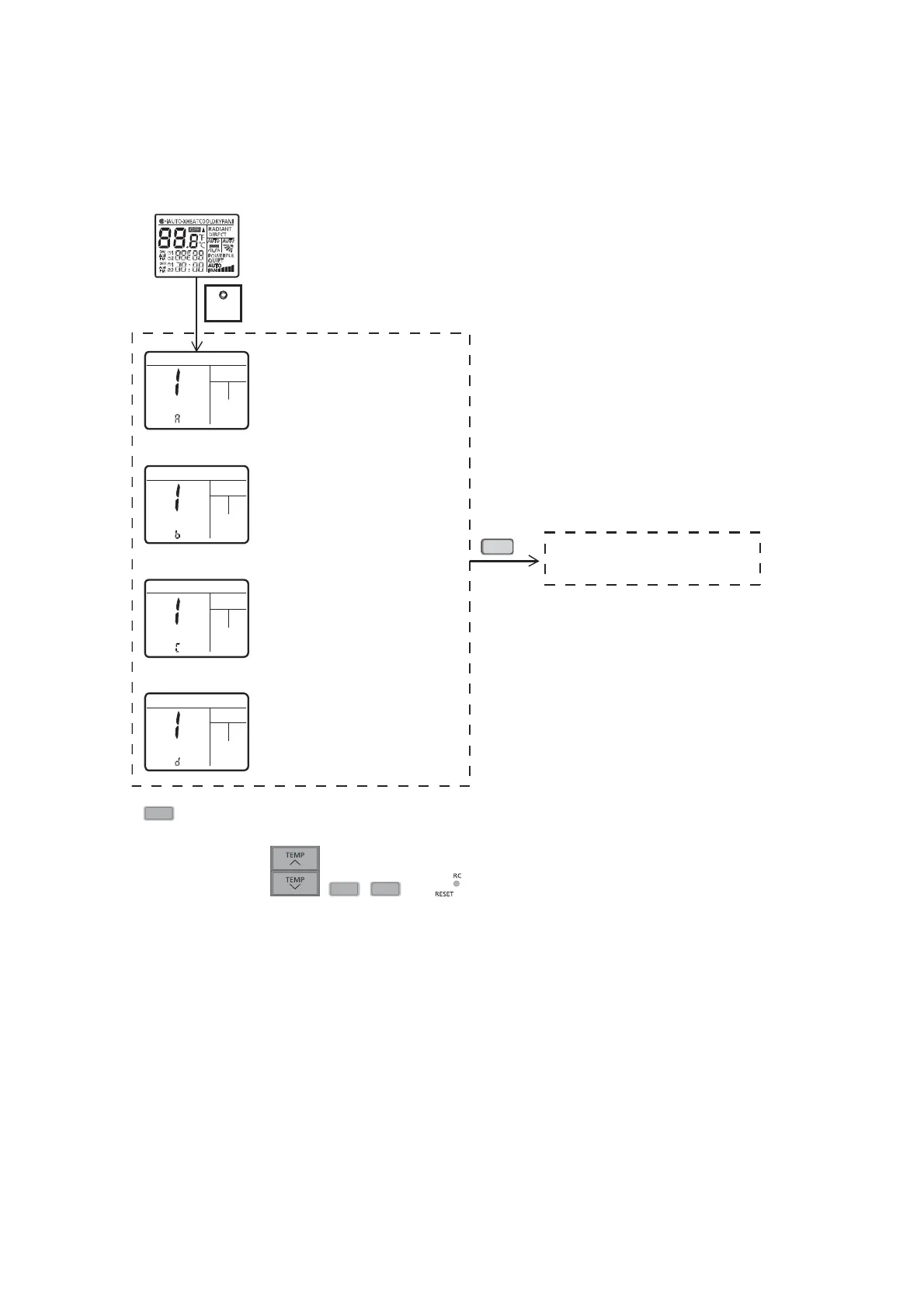

Transmit
“Remote control no.” code
Normal display mode
If jumper JA=Open & JB=Open
RC number = B
If jumper JA=Short & JB=Short
RC number = C
If jumper JA=Open & JB=Short
RC number = D
If jumper JA=Short & JB=Open
RC number = A
SET
OR
OR
OR
SET
o Press
CANCEL
SW, special setting is immediately cancelled and normal mode starts.
o If no SW is pressed for 30 secs, then special setting mode is cancelled and normal mode starts.
o Under this function, only
,
SET
,
CANCEL
and SW’s are effective.
