19.1.1.4 To Remove Discharge Grille

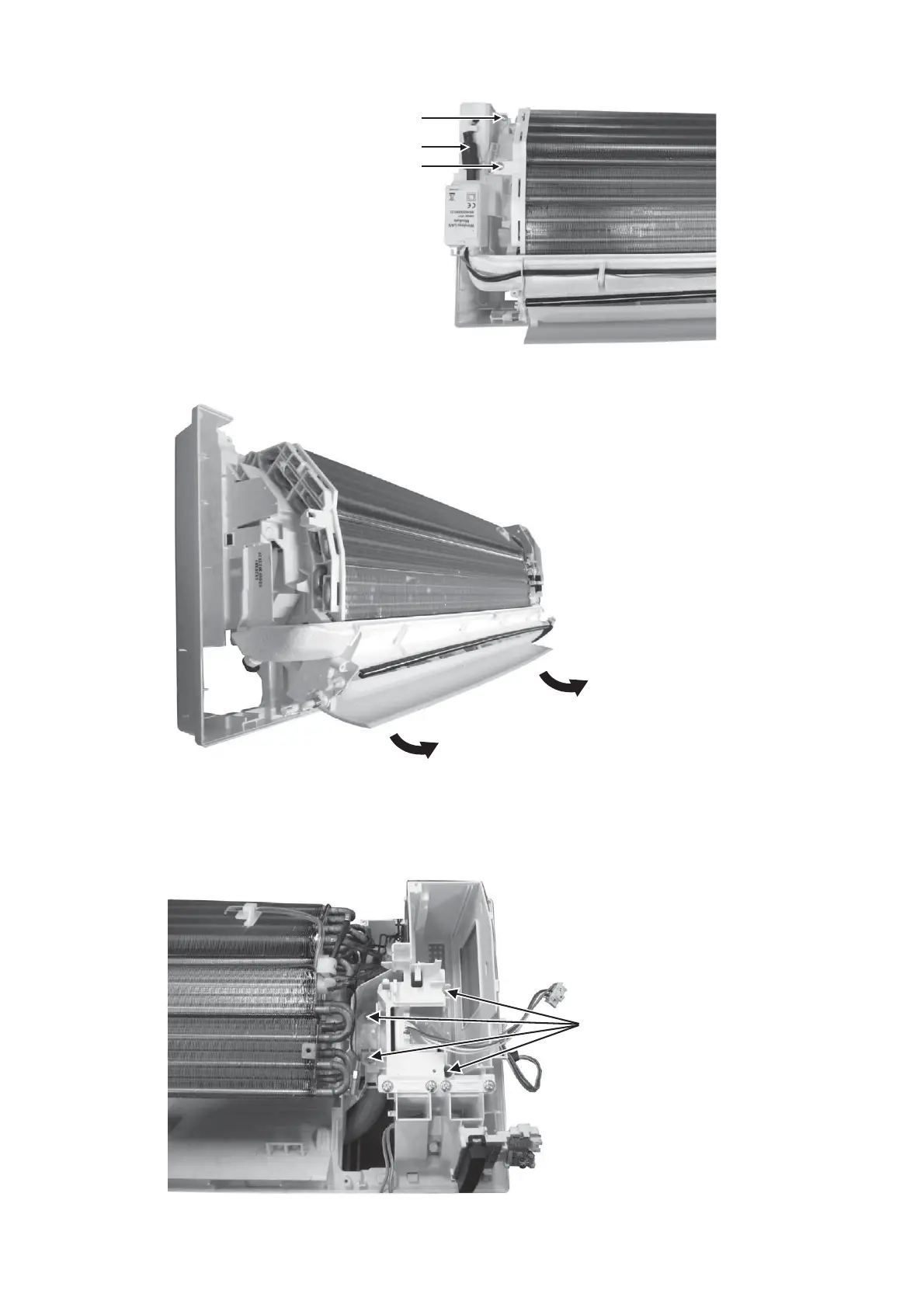

11. Remove the screw and
pull out the HVU unit.
HVU unit
12. Remove the screw and
pull out the WIFI module.
Figure 6
14. Then pull the discharge grille
downward gently to dismantle it.
13. Pull out and remove the drain hose
from the discharge grille.
Figure 7
19.1.1.5 To Remove Control Board
15. Remove the 4 screws holding
the control board, then pull out
the control board.
Figure 8
