145

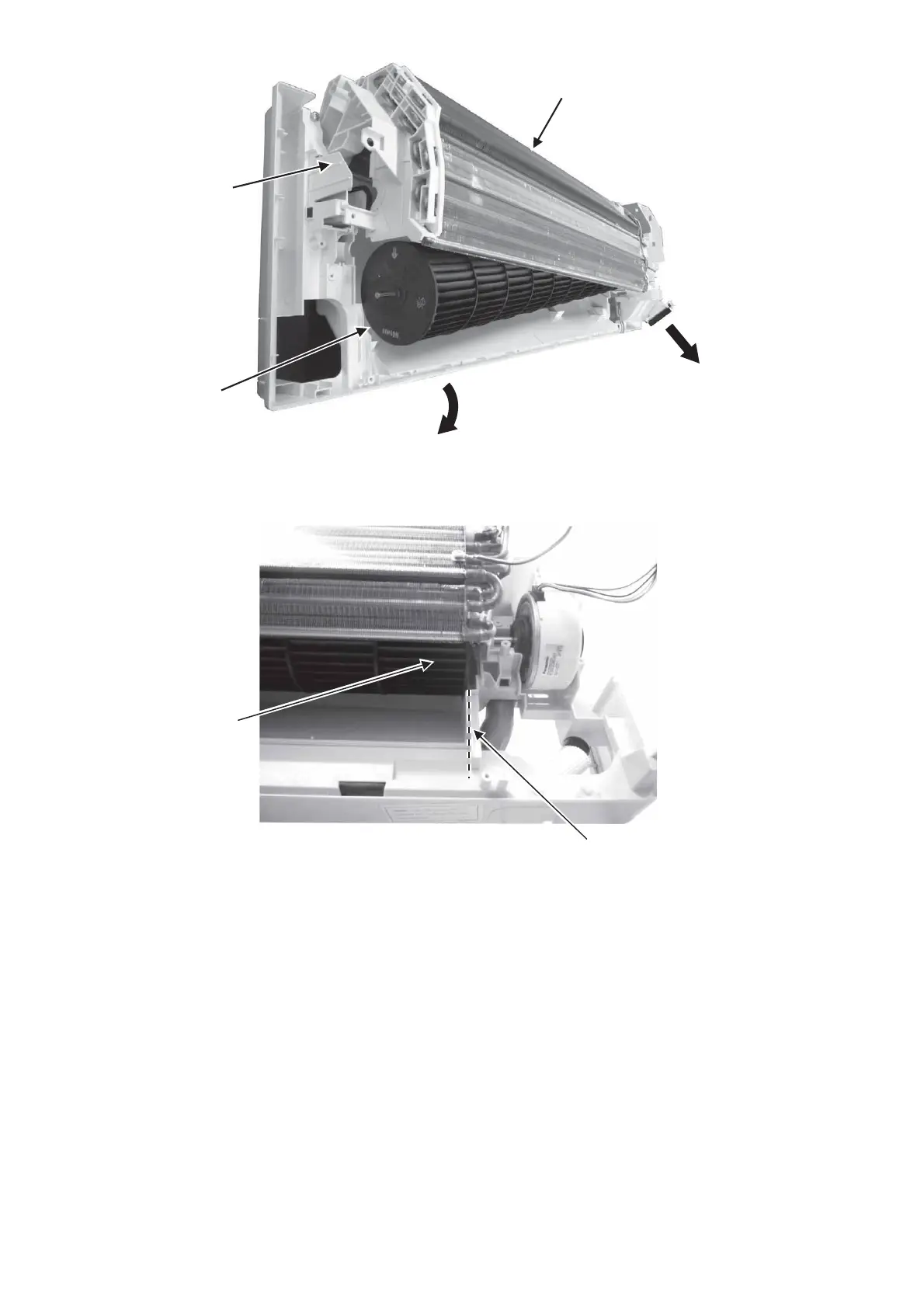

20. Remove the cross flow fan from the
unit by pulling it to the left and downward.
19. Push the holdfast to
the left and lift up the
evaporator.
Cross flow fan
21. Fan motor can be removed after
the removal of the cross flow fan.
Evaporator
Reminder: To reinstall the fan motor, adjust
the fan motor connector to 90° towards you
before fixing control board.
Figure 11
Reminder: To reinstall the cross flow
fan, ensure cross flow fan is in line as
shown in figure 12.
Cross Flow Fan
Figure 12
To Next Page
