122

18.4.28 F99 (DC Peak Detection)

Malfunction Decision Conditions

During startup and operation of cooling and heating, when inverter DC peak data is received by the outdoor internal

DC Peak sensing circuitry.

Malfunction Caused

 DC current peak due to compressor failure.

 DC current peak due to defective power transistor(s).

 DC current peak due to defective outdoor unit PCB.

 DC current peak due to short circuit.

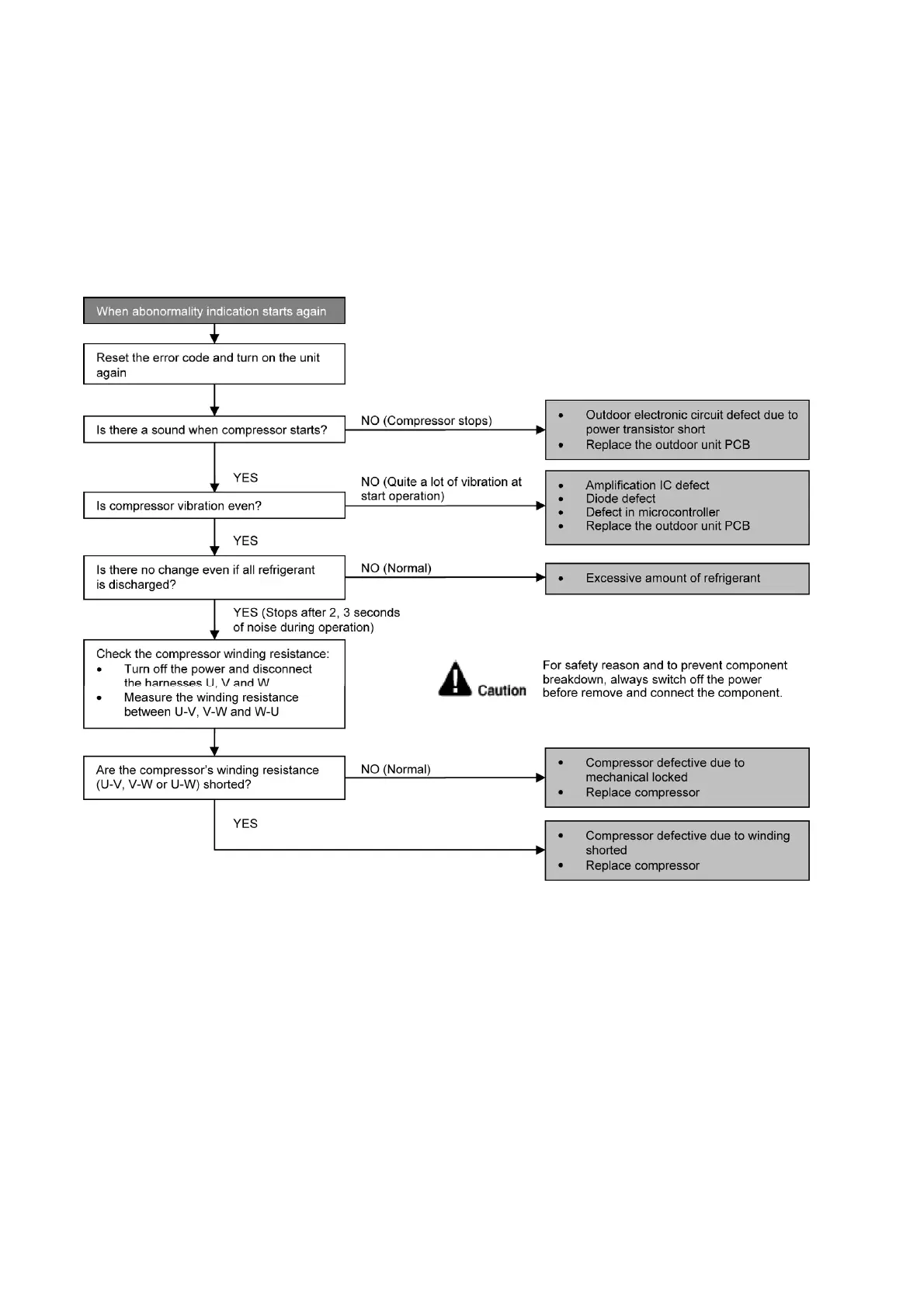

Troubleshooting
