128
19.2.3 CU-Z50UBEA CU-Z60UBEA
Caution! When handling electronic controller, be careful of electrostatic discharge.

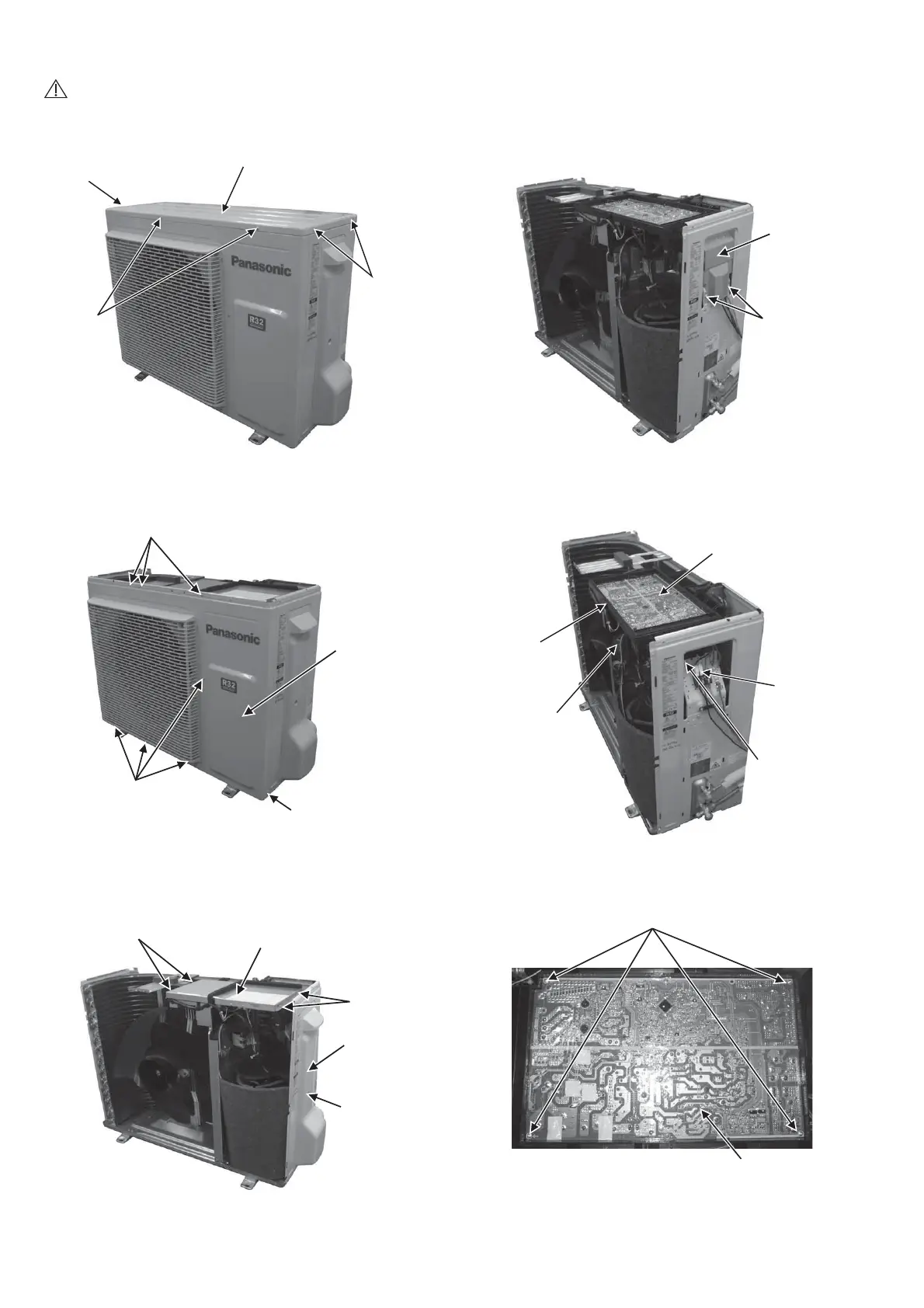

1 Remove the 5 screws of the Top Panel.
Screw
Top Panel
Screws
Screws
Fig. 1
2 Remove the 8 screws of the Front Panel.
Screws
Screw
Screws
Front Panel
Fig. 2
3 Remove the screw of the Terminal Board Cover.
4 Remove the Top Cover of the Electronic
Controller by 4 hooks.
Hooks
Screw
Terminal
Board
Cover
Hooks
Top Cover
Fig. 3
5 Remove 2 screws for the plate of Terminal Board
Cover.
Screws
Plate of
Terminal
Board
Cover
Fig. 4
6 Remove the Control Board.
Control Board
Release
screw of
Control Board
Release
3 terminal
connectors
Release
screw of
Control Board
Release of 6
connectors
Fig. 5
7. Remove the 4 screws of the Electronic Controller.
Electronic Controller
Screws
Fig. 6
To Next Page
