Panasonic CS-Z35YKEA Service Manual

170

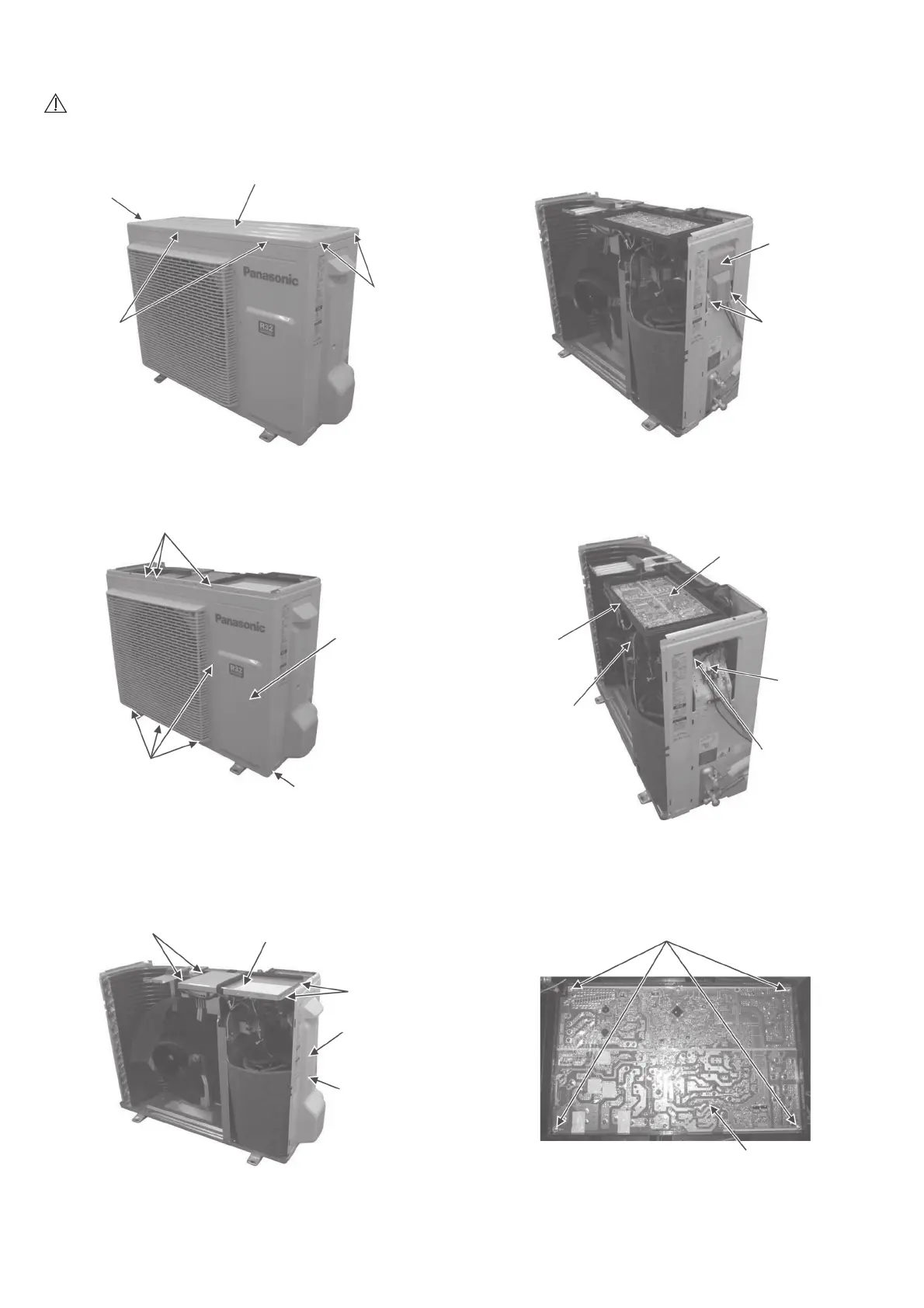

18.4.2 CU-Z50YKEA CU-Z71YKEA
Caution! When handling electronic controller, be careful of electrostatic discharge.
1 Remove the 5 screws of the Top Panel.
Fig. 1
2 Remove the 8 screws of the Front Panel.
Fig. 2
3 Remove the screw of the Terminal Board
Cover.
4 Remove the Top Cover of the Electronic
Controller by 4 hooks.
Fig. 3
5 Remove 2 screws for the plate of Terminal
Board Cover.
Fig. 4
6 Remove the Control Board.
Fig. 5
7 Remove the 4 screws of the Electronic
Controller.
Fig. 6
Top Panel
Screws
Screw
Screws
Screws
Screws
Screw
Front Panel
Hooks
Top Cover
Hooks
Terminal
Board
Cover
Screw
Screws
Plate of
Terminal
Board
Cover
Control Board
Release
3 terminal
connectors
Release of 6
connectors
Release
screw of
Control Board
Release
screw of
Control Board
Electronic Controller
Screws
