20.3 Piping Length Correction Factor
20.3.1 CS-Z25YKEA CU-Z25YKEA CS-Z35YKEA CU-Z35YKEA
CS-Z42YKEA CU-Z42YKEA
The characteristic of the unit has to be corrected in accordance with the piping length.
Note: The graphs show the factor after added right amount of additional refrigerant.

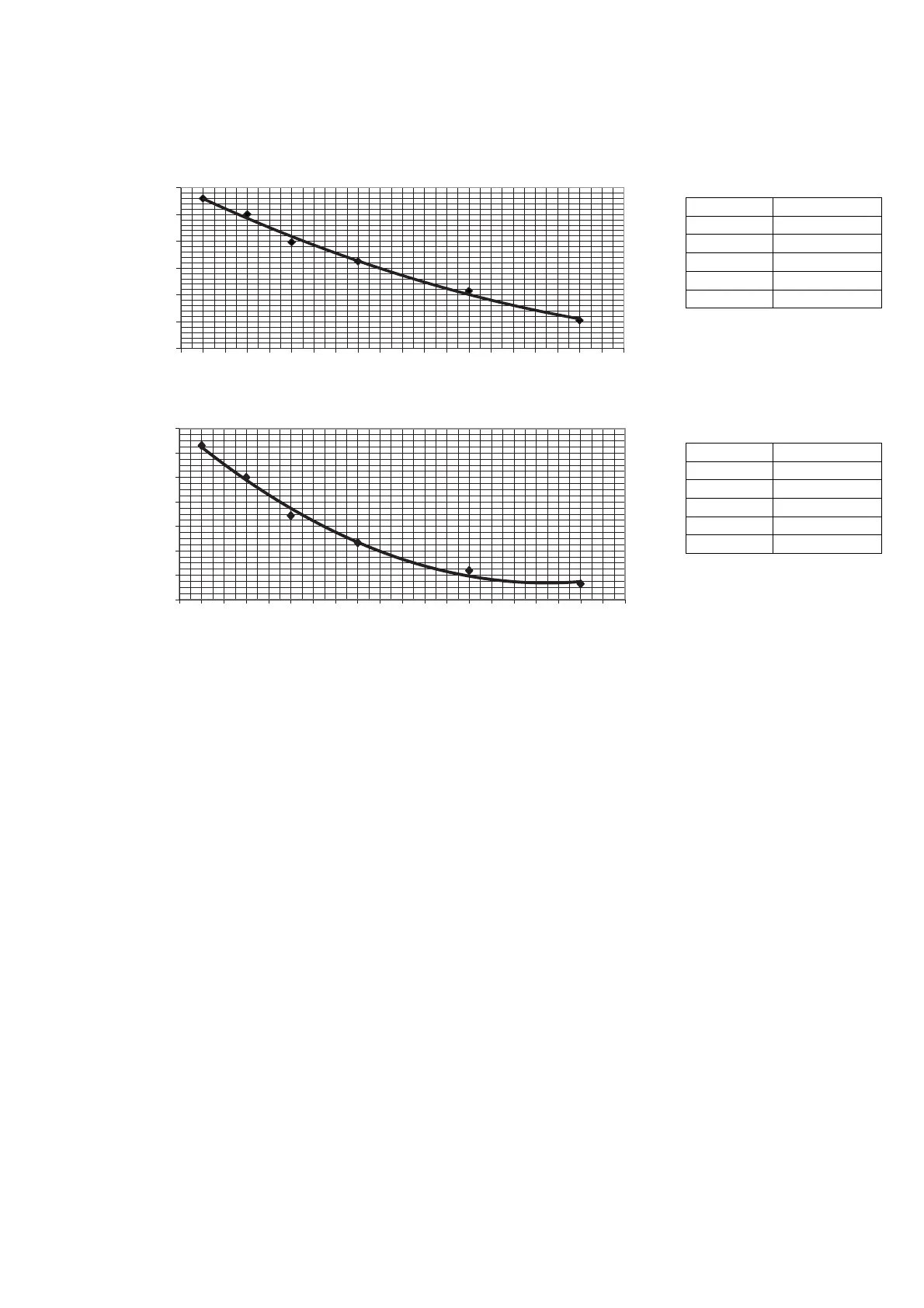

Cooling Capacity
3 1.0119
5 1.0000
7 0.9792
10 0.9650
15 0.9429
20 0.9209
Heating Capacity
3 1.0261
5 1.0000
7 0.9687
10 0.9465
15 0.9237
20 0.9128
Cooling Capacity
Correction Factor
Pipe Length (m)
0.90
0.92
0.94
0.96
0.98
1.00
1.02
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Heating Capacity
Correction Factor
Pipe Length (m)
0.90
0.92
0.94
0.96
0.98
1.00
1.02
1.04
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
