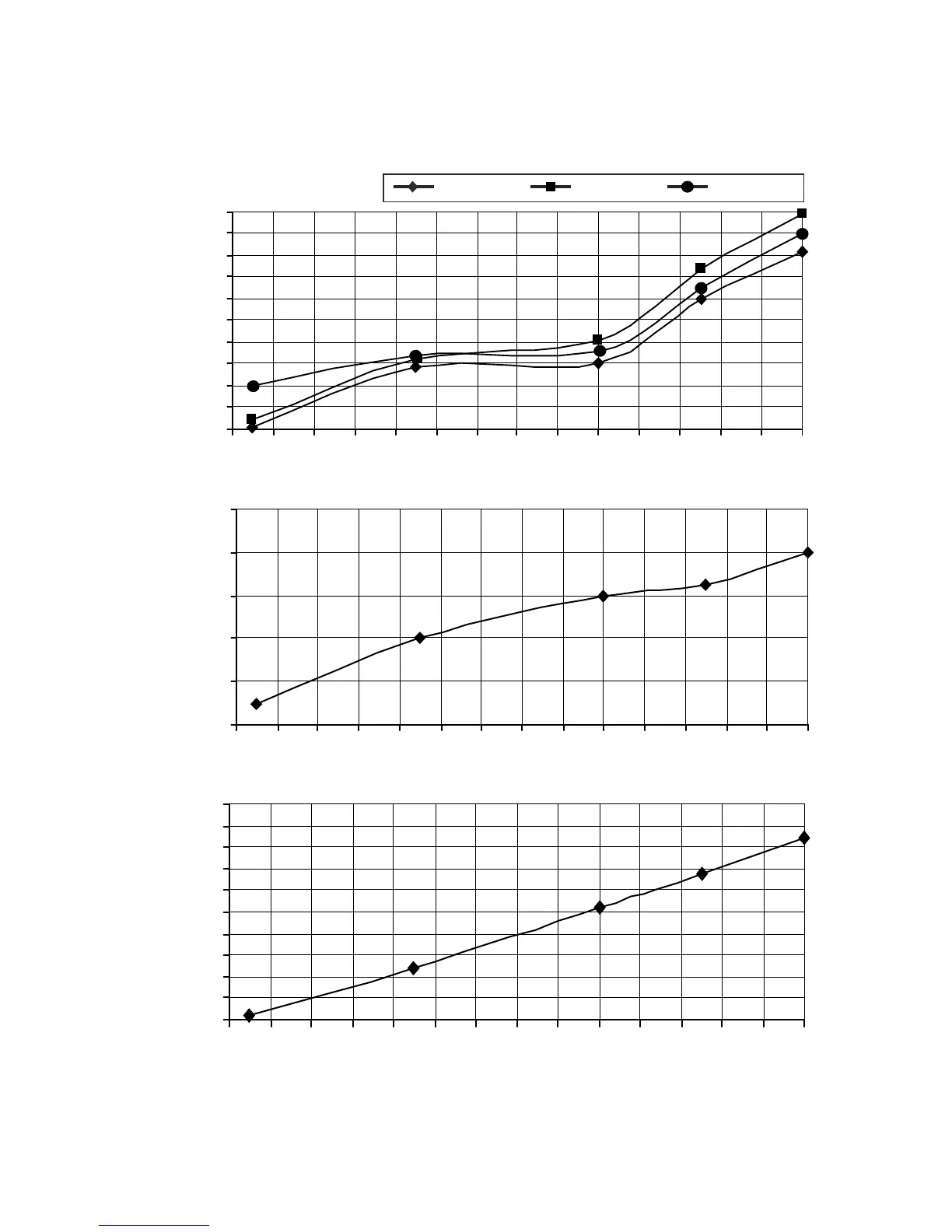

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Heating (2.0 + 2.5 + 4.2), CS-TZ20TKEW + CS-TZ25TKEW + CS-TZ42TKEW
Outdoor Air Temperature (°C)
Indoor Discharge Air
Temperature (°C)
TZ20TKEW TZ42TKEWTZ25TKEW
25.800
26.800
27.800
28.800
29.800
30.800
31.800
32.800
33.800
34.800
35.800
-16-14-12-10-8-6-4-2024681012
Outdoor Air Temperature (°C)
Current
(A)
8.000
8.400
8.800
9.200
9.600
10.000
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Outdoor Air Temperature (°C)
Gas Side Piping
Pressure (MPa)
1.900
1.950
2.000
2.050
2.100
2.150
2.200
2.250
2.300
2.350
2.400
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
