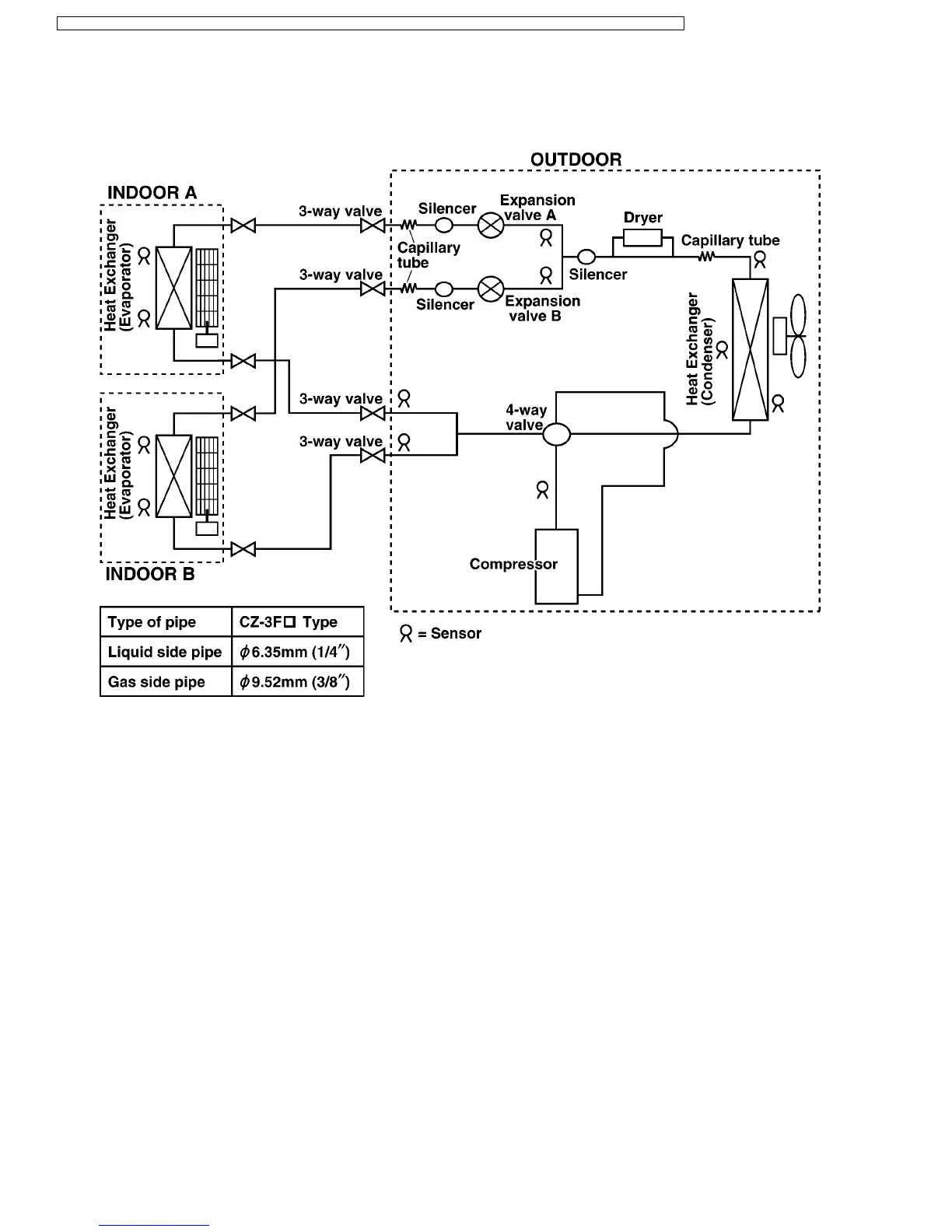

6 Refrigeration Cycle Diagram
6.1. OUTDOOR UNIT (CU-2E15CBPG/2E18CBPG)
16
CS-ME7CKPG / CS-ME10CKPG / CS-ME12CKPG / CS-ME14CKPG / CS-ME18CKPG / CU-2E15CBPG / CU-2E18CBPG / CU-3E23CBPG / CU-4E27CBPG
