9.1.3. Airflow direction Control

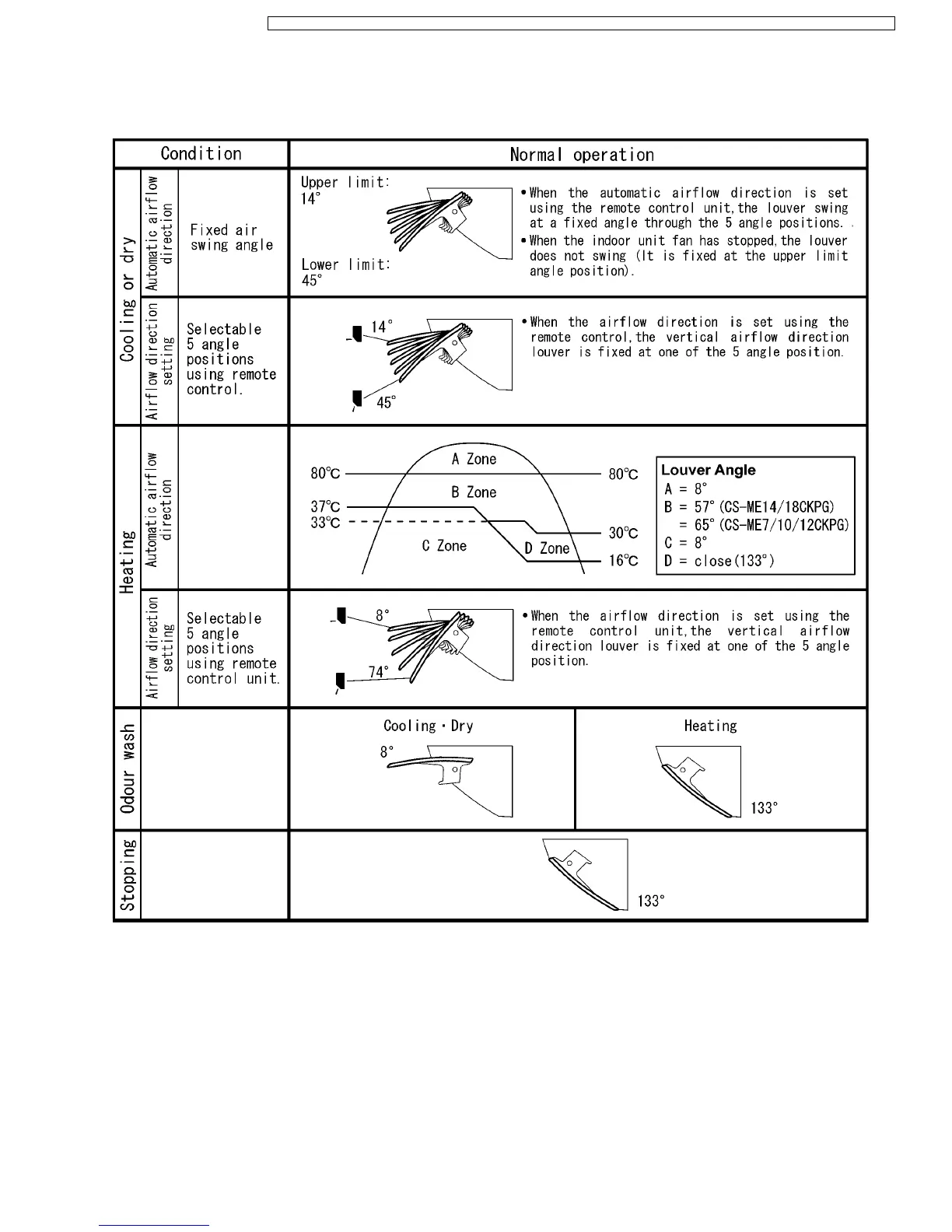

The vertical airflow direction louver is controlled as shown in the table below in response to the operation of the remote control air
swing button and the operating conditions.
·
When the air conditioner is operated using the remote control, the vertical airflow direction louvers first open, and then move
to the angle position which has been set.
·
When the power has been turned off during operation, the operation stop with the vertical airflow louver left open.
·
Horizontal airflow direction louvers are operated manually. Set them manually to the desired position.
25
CS-ME7CKPG / CS-ME10CKPG / CS-ME12CKPG / CS-ME14CKPG / CS-ME18CKPG / CU-2E15CBPG / CU-2E18CBPG / CU-3E23CBPG / CU-4E27CBPG
