16 Exploded View & Replacement Parts List
16.1. CS-ME7CKPG/ME10CKPG/ME12CKPG/ME14CKPG/ME18CKPG

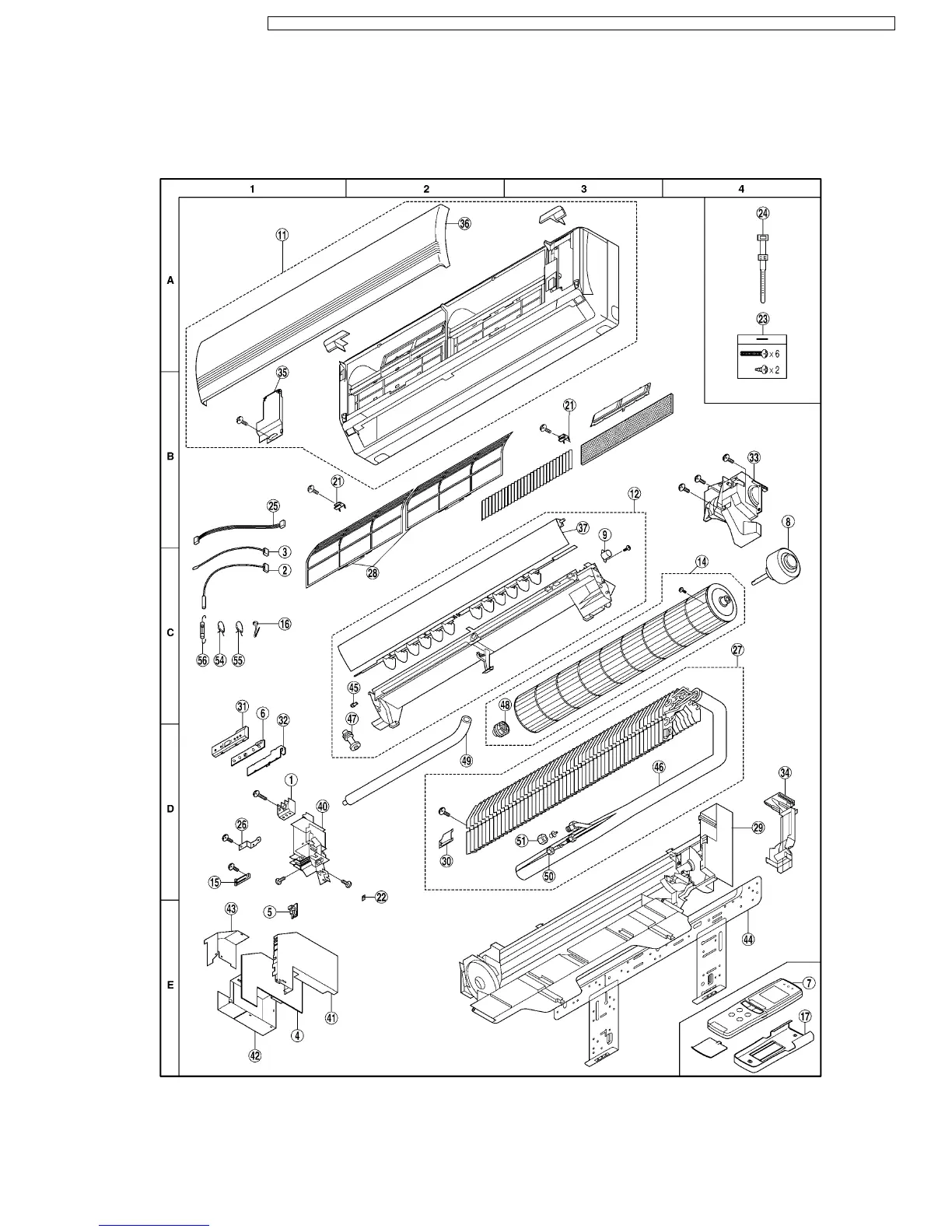

16.1.1. Exploded View
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
