Connection and Setting
The COMPONENT VIDEO OUT terminals on this unit can be used for either interlace or progressive output ( 82)
to provide a purer picture than the S VIDEO OUT terminal.

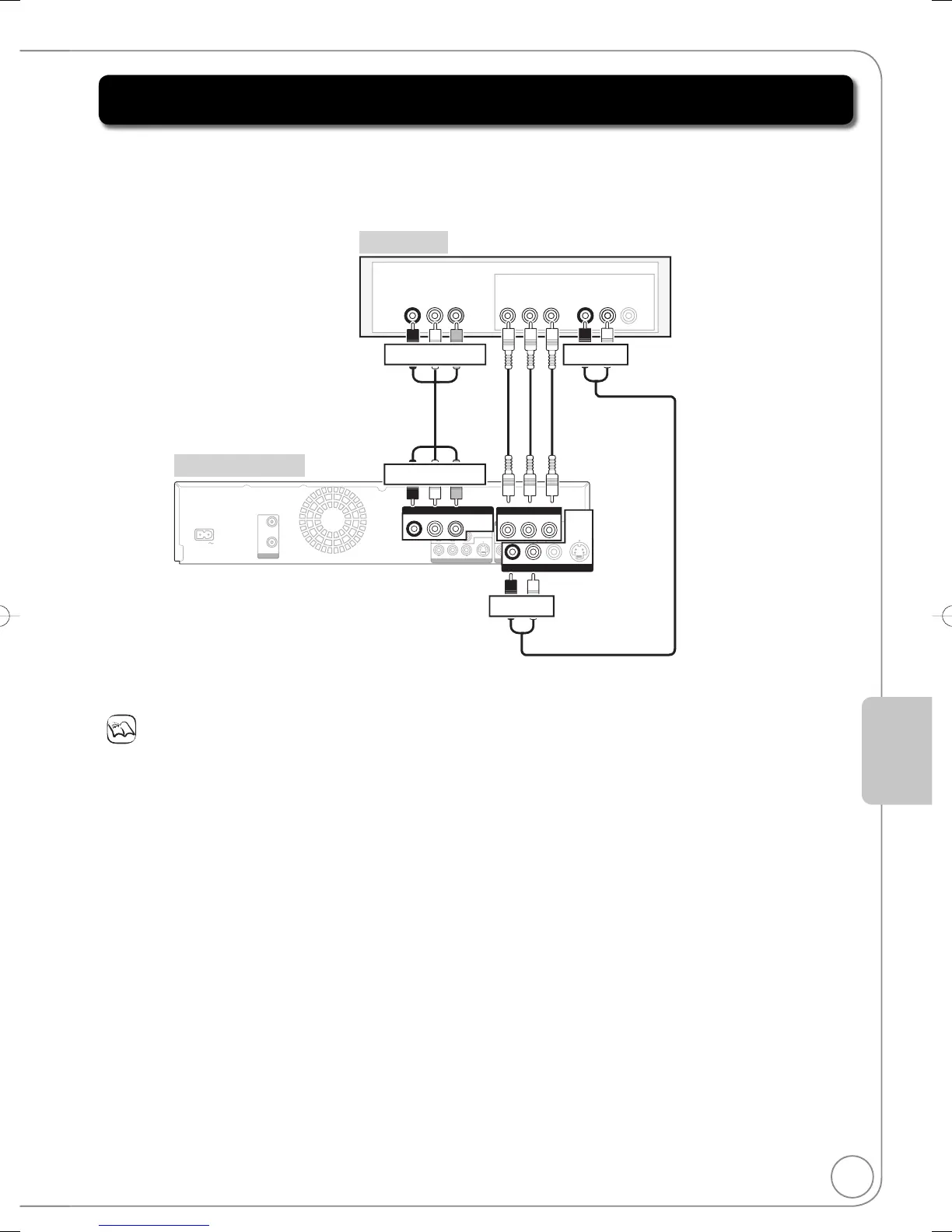

Using Component Video Cables for Better Video (Component Video Cables not
included)
Notes
Usually you can watch video from COMPONENT VIDEO input on TV. When you want to playback VHS while recording on DVD, switch to
input 1 on TV.
AC IN
P
R
Y
P
B
R-AUDIO
VIDEO
VIDEO
R-AUDIO-L
-L
S VIDEO
A
AU
COMPONENT VIDEO OUT
DVD/VHS COMMON OUT
COMPONENT
VIDEO IN
INPUT 1
AUDIO IN
VIDEO
R-AUDIO-L
VIDEO
O
S VIDEO
DVD PRIORITY OUT
DVD/VHS COMMON OUT
VIDEO
R-AUDIO-L
COMPONENT VIDEO OUT
PR
Y
P
B
AUDIO IN
VIDEO
IN
RL
RF
OUT
RF
IN
YP
B
P
R
Component
video cables
(not included)
Rear of TV
Audio/video cable
(included)
Rear of this unit
Audio cable
(not included)
Red White
Red White
Red White Yellow
Red White Yellow
