13
RQT8033

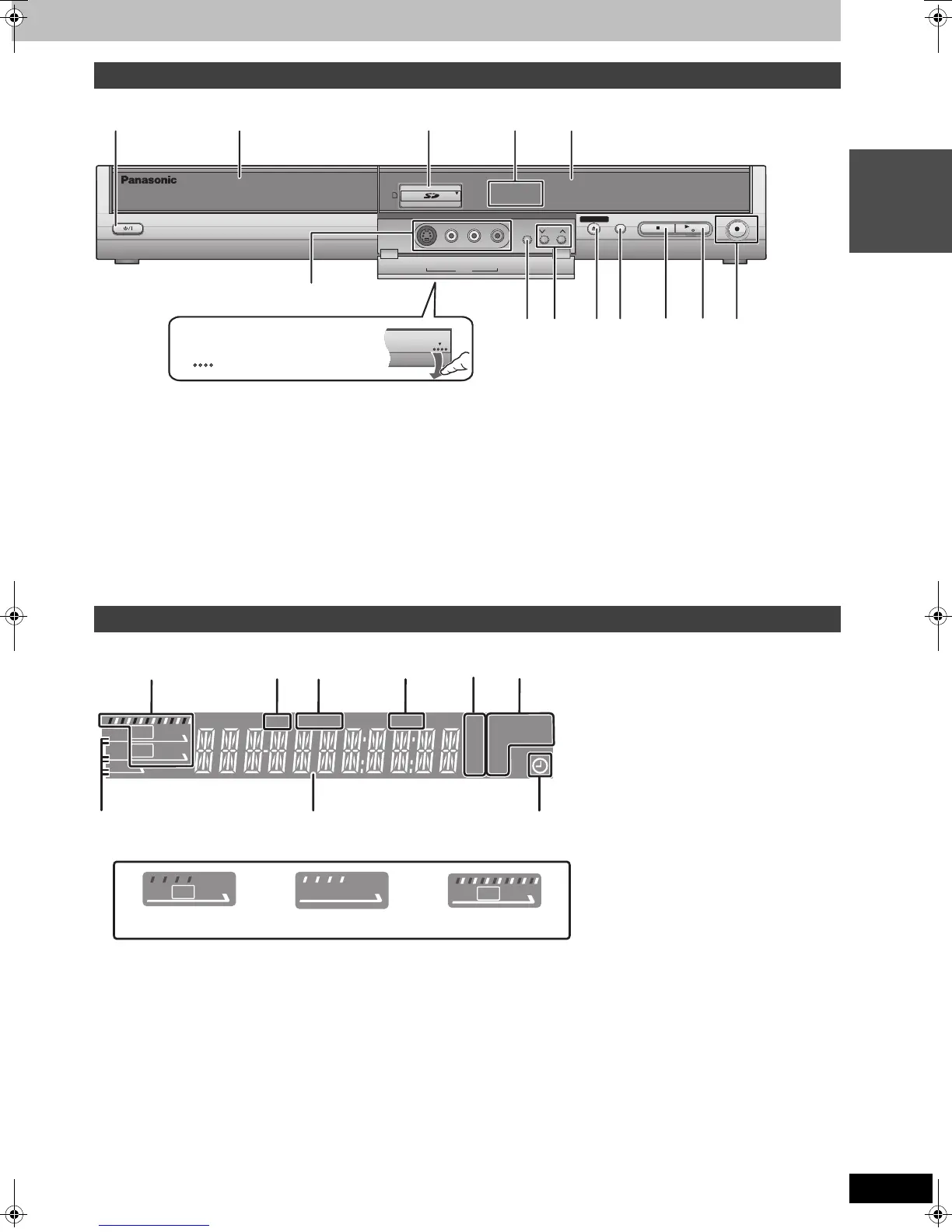

Getting started
1 Standby/on switch (Í/I) (➡ 19, 20)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
2 Disc tray (➡ 24, 32)
3 SD card slot (➡ 6)
4 Lights when the HDD, DVD or SD drive is selected
5 Display (➡ below)
6 Connection for camcorder etc. (➡ 49)
7 Linked timer recordings with external equipment (➡ 31)
8 Channel select (➡ 24)
9 Open/close disc tray (➡ 24, 32)
: Select drive (➡ 24, 32, 36)
Drive changes each time you press [DRIVE SELECT].
; Stop (➡ 24, 33)
< Start play (➡ 32)
= Start recording/Remote control signal sensor (➡ 24)
Specify a time to stop recording (➡ 25)
Rear panel terminals (➡ 15–17)
2 Transferring (dubbing) indicator
3 Linked timer recordings with external equipment indicator
4 D.MIX (multi-channel DVD-Audio only)
When lit: Down-mixing (➡ 69) is possible.
When off: The disc prevents down-mixing so only the two front channels can be played (➡ 10, Regarding DVD-Audio)
5 Recording mode
6 Disc type
7 Lights when the HDD, DVD or SD drive is selected
8 Main display section
9 Timer recording indicator
Main unit
HDD
HDD
DVD
DVD SD
SD
EXT LINK
CH
DRIVE
SELECT
REC
S VIDEO IN
VIDEO IN
L/MONO
-AUDIO IN-
AV 3
R
/k 1.3
OPEN/CLOSE
12 34
5
6
7
8
9
:
;
<
=
Opening the front panel
Press down on the
part with your finger
The unit’s display
XP
SP
LP
EP
CH
DUB
EXT
D.MIX
Link
DVD
AVC D
RWRAM
VR
SD
-
+
-
PLAY
REC
DVD
SD
HDD
REC
PLAY
PLAY
HDD
REC
HDD
PLAY
HDD
REC
PLAY
123456
78 9
1 e.g., [HDD]
Recording
Playback
Recording/Playback
