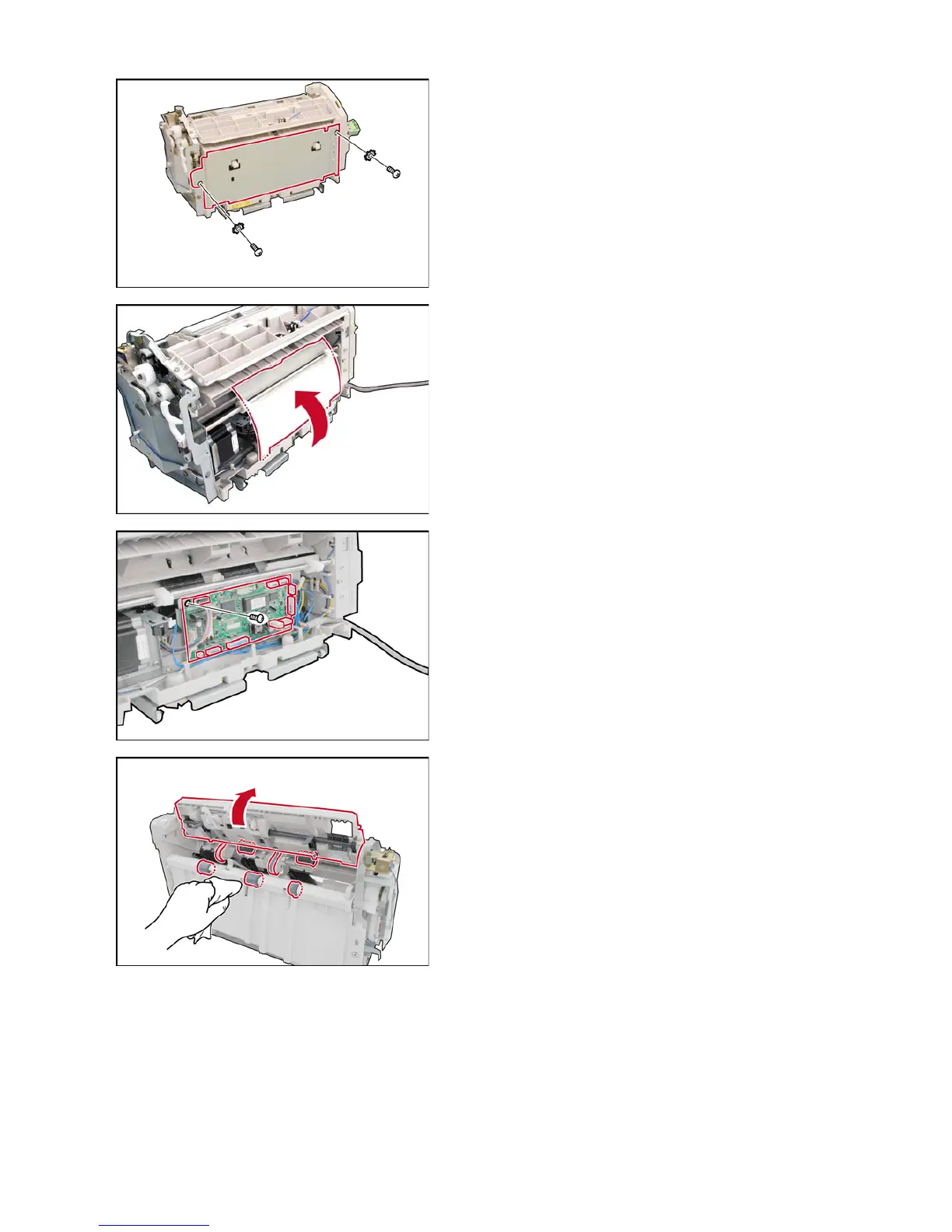

<Removing Finisher Controller PC Board>
(10) Remove 2 Screws (2632) and 2 Washers
(2634).
(11) Remove the Right Cover (2604).
(12) Lift the PCB Cover Mylar (2635) up.
(13) Disconnect all the Harnesses on the CONT PC
Board.
(14) Remove 1 Screw (2633).
(15) Remove the CONT PC Board (3028).
<Removing Rollers>
(16) Lift up the Guide Base (2801) Assembly.
(17) Clean the Exit Roller (2937).
