Panasonic DP-3010 - Cleaning the Intermediate Roller and 2 C25 Gear Rollers

77
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

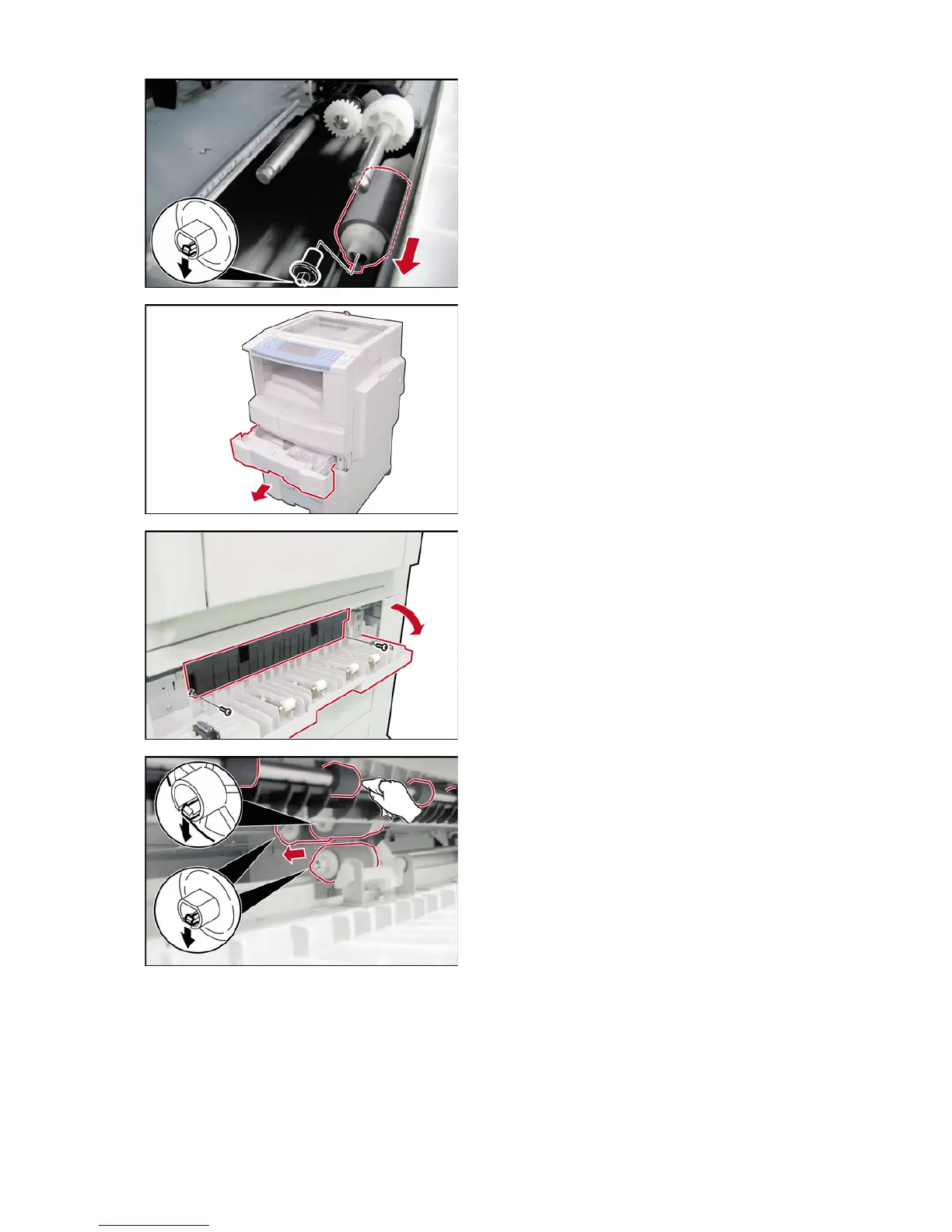

(11) Remove the Reverse Clutch (1132) and Spring
D (1178).
(12) Remove the C25 Gear Roller (1145).
<Cleaning C25 Gear Roller>
Clean the surface of the C25 Gear Roller with a
soft cloth, saturated with isopropyl alcohol.
(13) Slide the 2nd Paper Tray out.
(14) Open the Jam Access Cover (2307).
(15) Remove 2 Screws (19).
(16) Remove the Paper Guide (1127).
(17) Remove the Paper Feed Roller (1144).
(18) Remove 2 Reverse Clutches (1132).
(19) Remove the Spring D (1178).
(20) Remove 2 C25 Gear Rollers (1145).
<Cleaning the Intermediate Roller and 2 C25 Gear
Rollers>
Clean the Intermediate Roller and 2 C25 Gear
Rollers with a soft cloth, saturated with isopropyl
alcohol.
