Panasonic DP-3010 - Removing the Motors

448
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

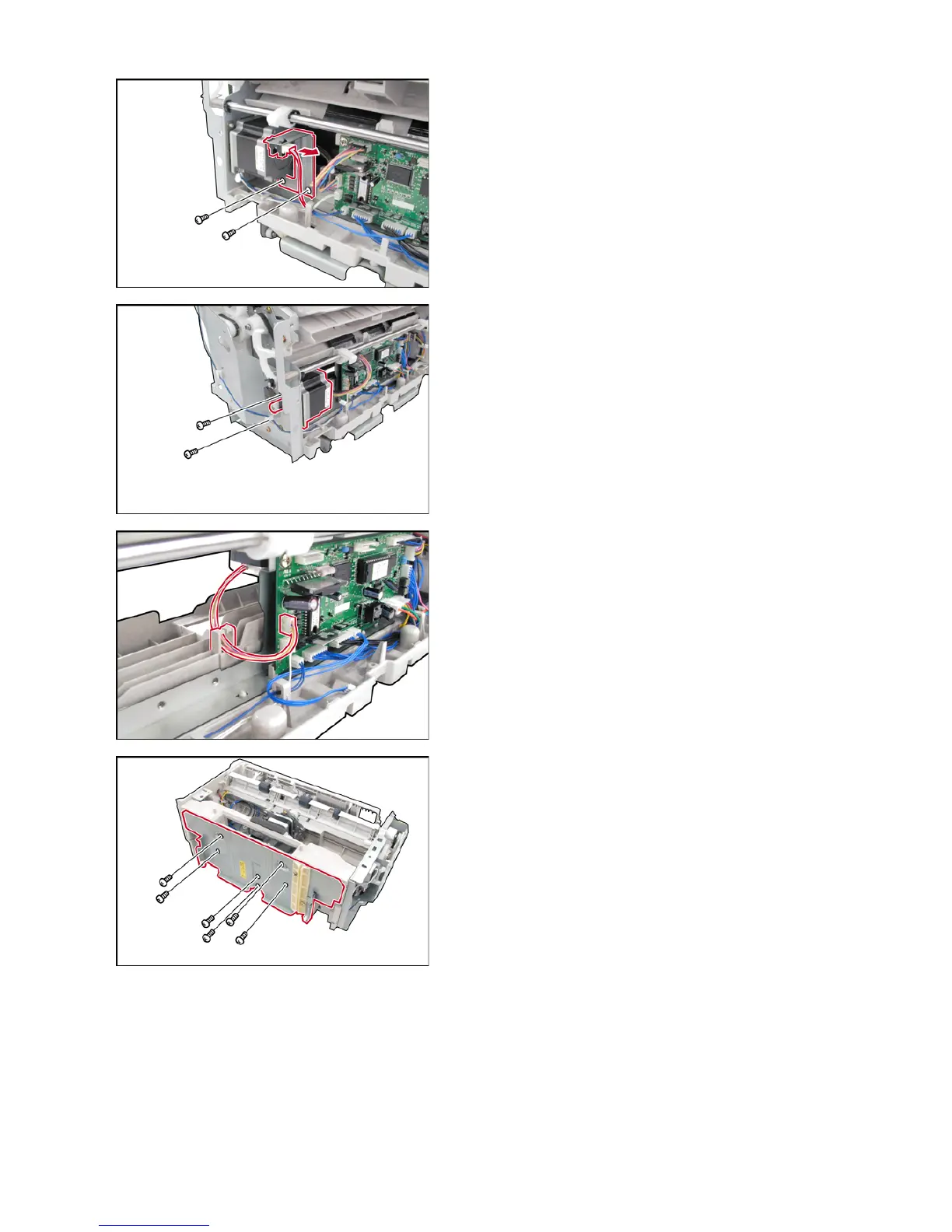

<Removing the Motors>
(54) Disconnect the Harness.
(55) Remove 2 Screws (3030).
(56) Remove the Sensor Hold Bracket (3008).
(57) Remove 2 Screws (2633).
(58) Remove the Drive Motor (3014).
(59) Disconnect the Harness.
(60) Release the Harness from the Clamp.
(61) Remove 4 Screws (2632).
(62) Remove 2 Screws (2521).
(63) Remove the Slide Base Bracket (3003).
