63
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

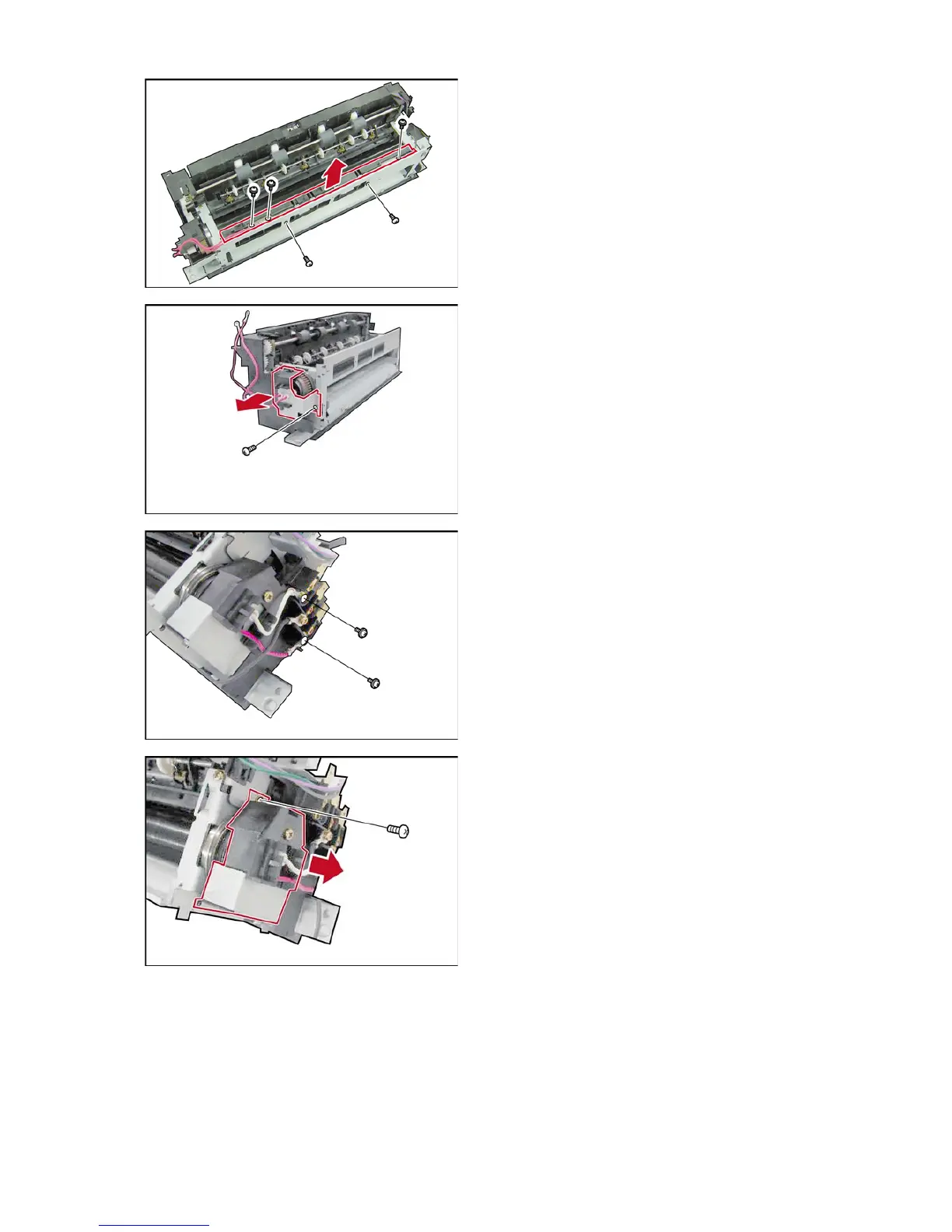

(31) Remove 3 Screws (23).
(32) Remove 2 Screws (19).
(33) Remove the Harness Guide (1004).
(34) Remove 1 Screw (21).
(35) Remove the Rear Lamp Holder (1021).
(36) Remove 2 Screws (16).
(37) Remove 1 Screw (21).
(38) Remove the Front Lamp Holder (1018).
