32 Installation Manual
Access Cover to Terminal Block Connectors
• The cover must be removed when making or modifying connections
in the distribution box, and reinstalled when connections have been
completed.

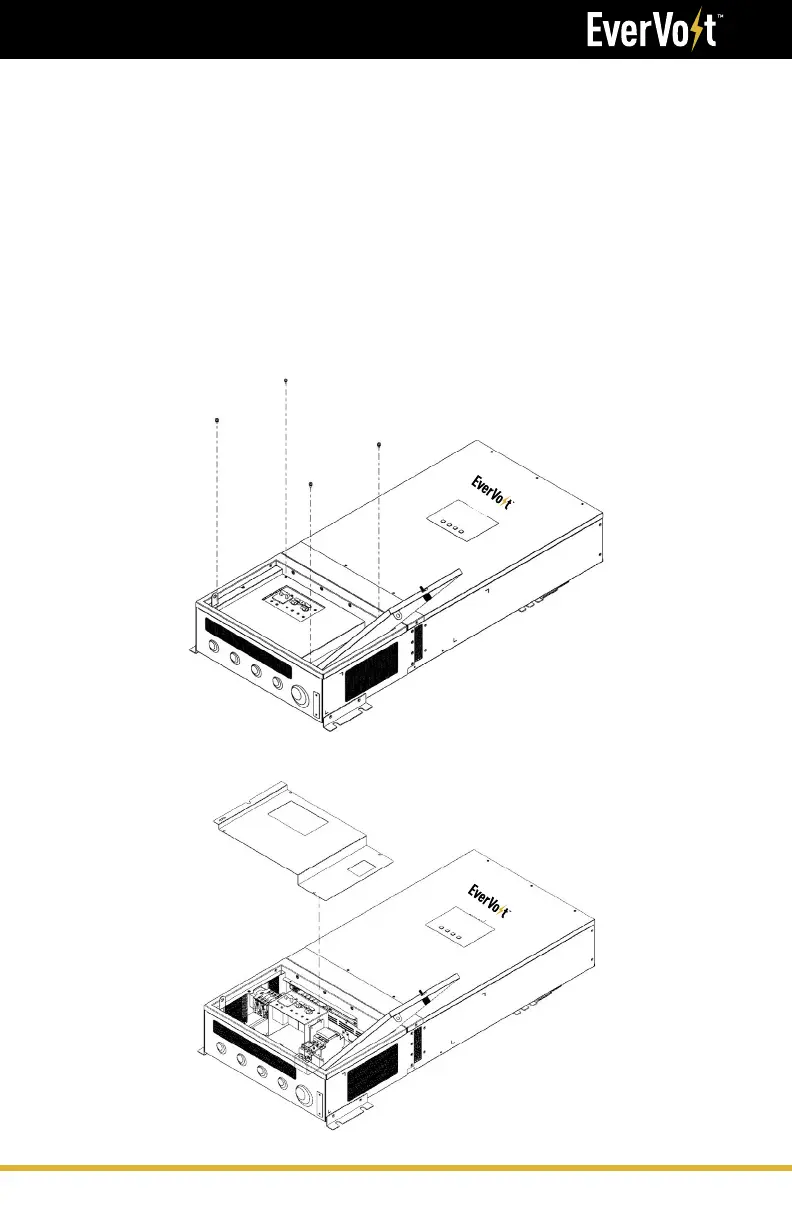

• To remove the cover, use the following steps.
• Reverse the steps to reinstall the cover.
1. Remove the screws from the cover.
2. Pull off the cover.
Mounting the Inverter
