Planning for Installation
Planning for Installation
1. Essential Load Sizing: Assure there are enough batteries so that the
essential load doesn't exceed 1100W continuous per battery module.
2. Internet Connectivity: The most reliable connection is a CAT5/6
hardcable to the router. Other options are wifi (included), PLC
(included), and cellular.
3. System Placement: (a) Placement of the physical system so that
the batteries rest on the feet of the battery enclosure (b) a conduit
between the battery and inverter be placed for easy routing of the 1/0
or 2/0 wire. The clearance spacing needs to be observed to allow for
adequate cooling and servicing of the equipment.
4. Outlet Placement: 120V AC outlet needs to be within 4 ft of the
inverter to plug in the power supply to power the SmartHub. This
outlet must be fed from the backed up loads panel to ensure EverVolt
maintains internet connectivity during a power outage.

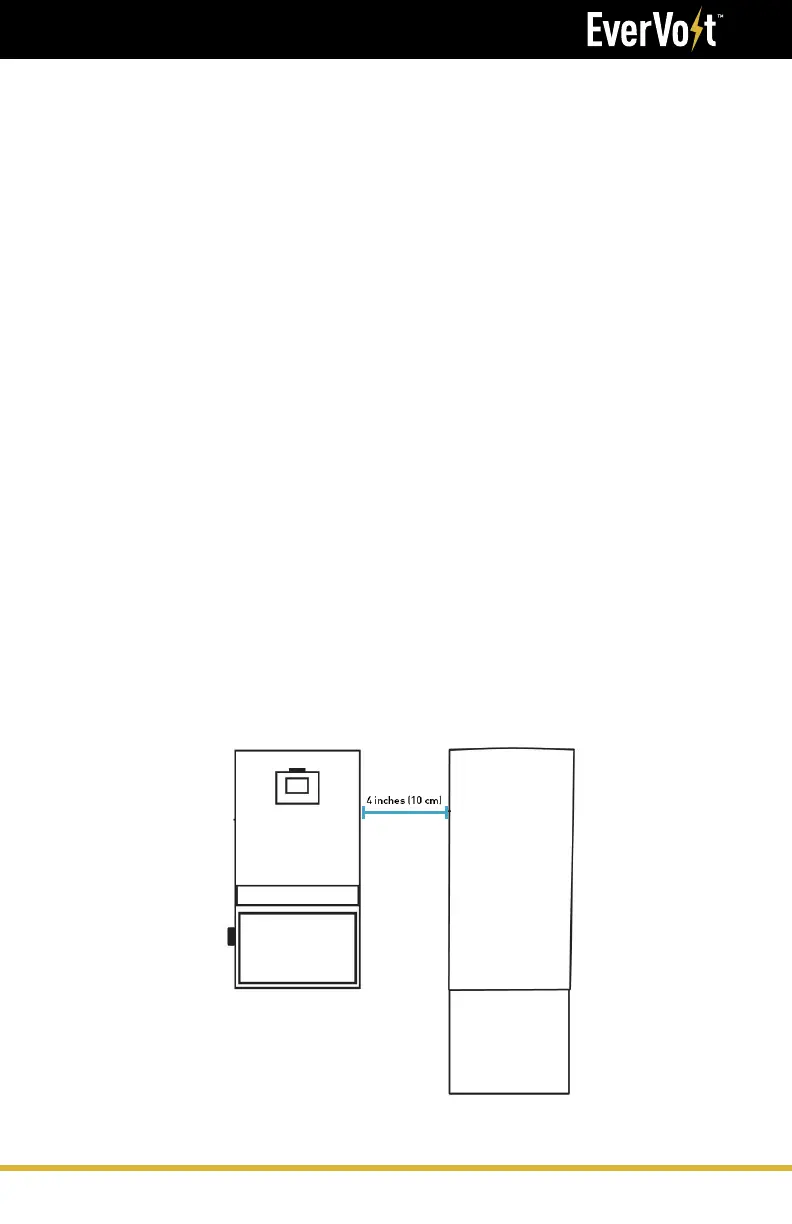

System Layout & Dimensions
66" x 24" x 10.5" (battery) & 17.5" x 39" x 6" (inverter). The minimum
spacing between the inverter and battery enclosure is 4".
