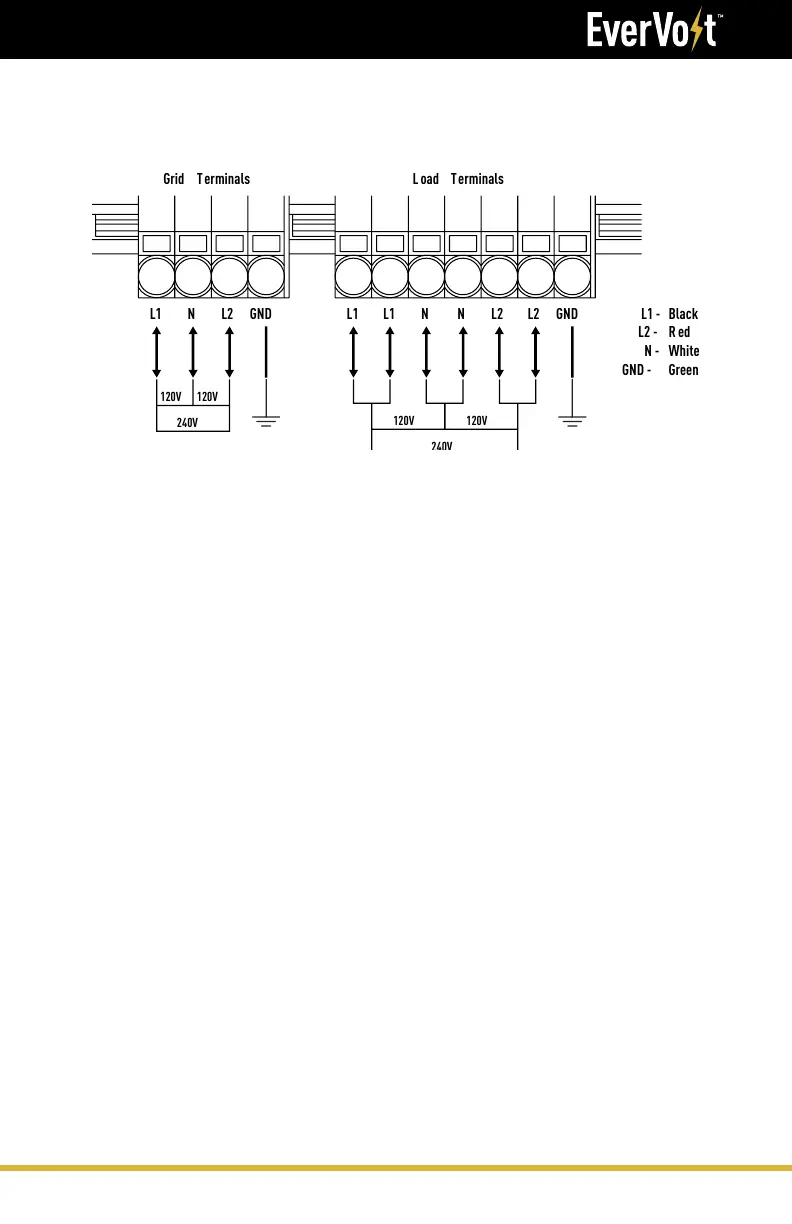

15. GRID AND LOAD TERMINALS
240V/120V 60HZ SPLIT-PHASE SYSTEM (USA)
Grid and Load Terminals
L1 -
L2 -
N -
GND -
Black
R ed
White
Green
240V/120V 60HZ SPLI T -PH A SE S Y S TEM (U S A)
L1 L1 L2L2 GNDN NL1 N L2 GND
120V120V
240V
120V 120V
240V
Grid Terminals L oad Terminals
