35 Installation Manual
Connections
ASSEMBLY (Continued)
4. General Connections
• Order of connections should be Grid, Load, then Battery.
• Order of wire connections should be Ground, N, L1, L2.
• Connect AC wires according to the labels on the terminal block or
your system
• Make sure the circuit breaker is off before making or modifying any
connections.
• To prevent the risk of electric shock, make sure the ground wire
is properly earthed before operating this unit whether the grid is
connected or not.
• To reduce the risk of injury, use the recommended wire/cable size.
• Do not apply anti-oxidant substance on battery terminals connections
where are made.
WARNINGS

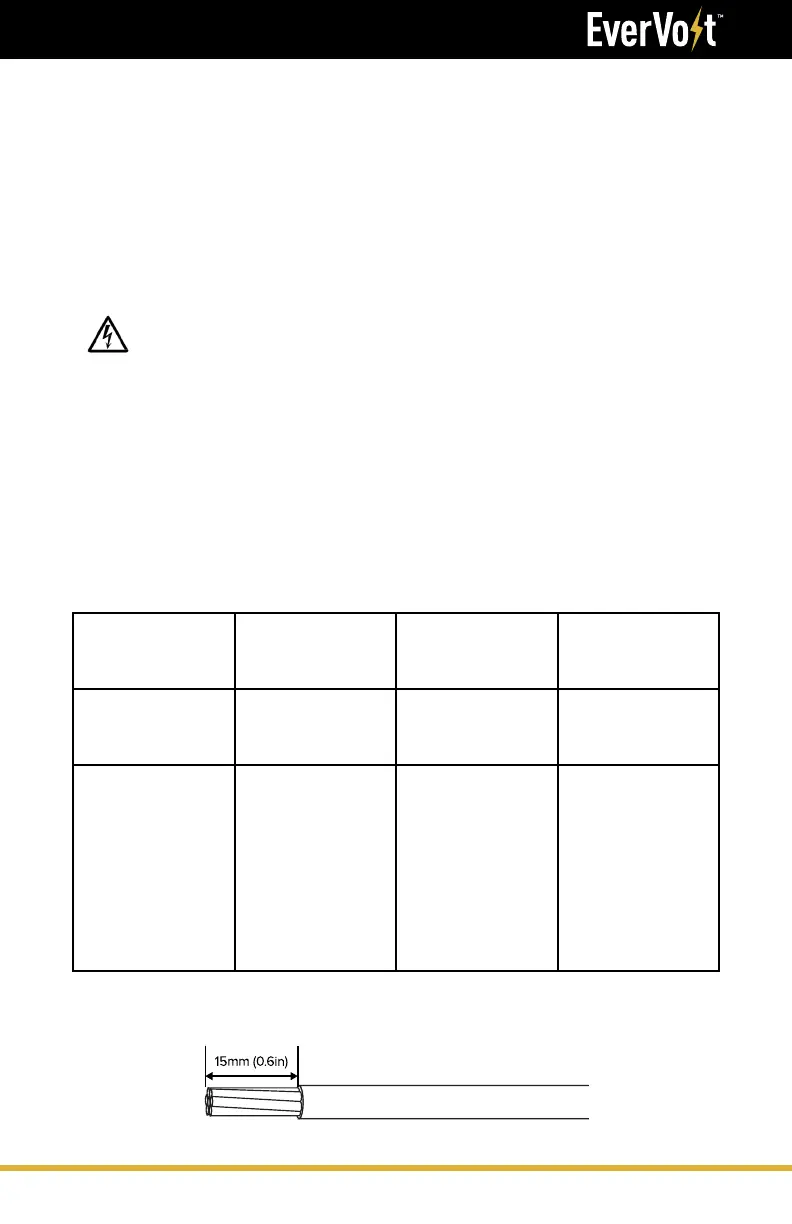

Wire/Cable Requirements
Strip 15mm(0.6in) off the AC wires and battery cables.
GRID LOAD BATTERY
SIZE Rated for 40 AAC Rated for 30 AAC Rated for 150 ADC
LENGTH -- --
Use supplied 6 ft
cable. If cable over
16 ft. is needed,
increase wire by
one AWG size or
more.
