Grid (Utility) Connection

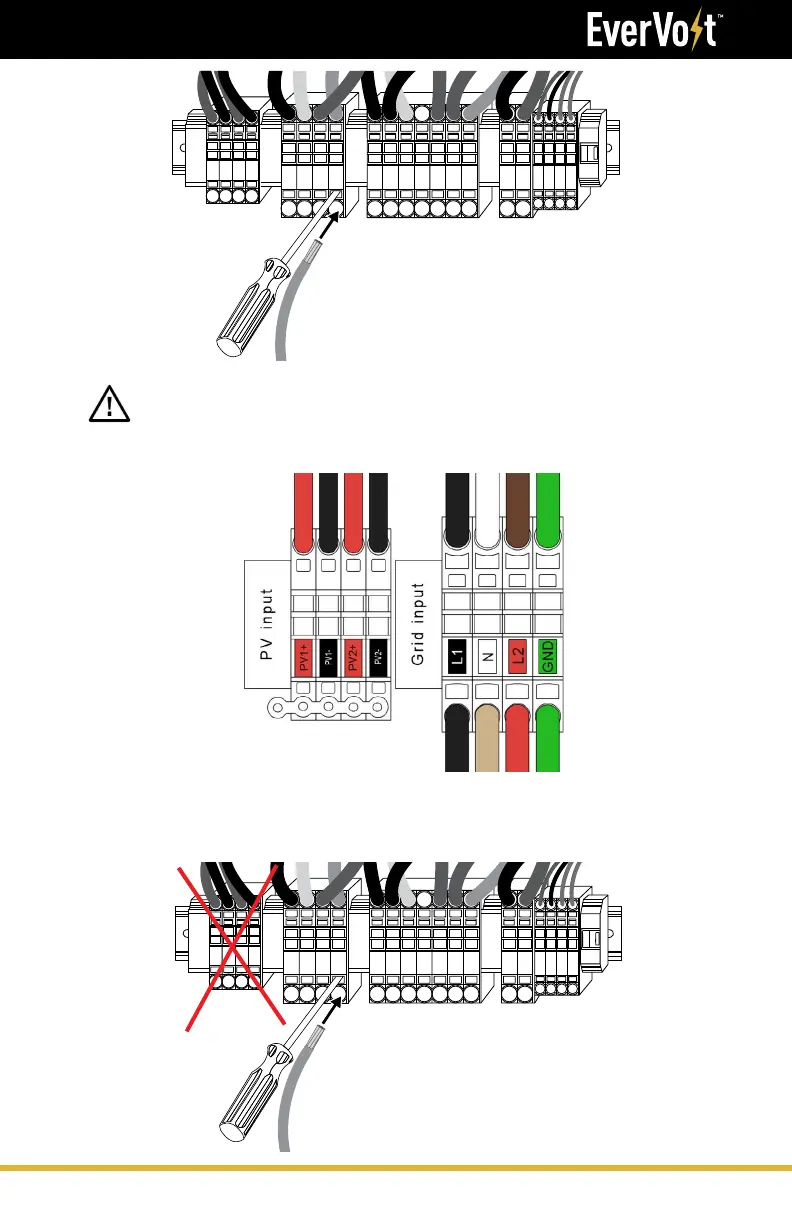

1. Put a screwdriver into the terminal, insert the wire into the terminal
and then remove the screwdriver. Do not install wires into PV Inputs
for AC-Coupled installations..
PV Input
Grid Input
Load Ouput
AC Input II
PV Input
Grid Input
Load Ouput
AC Input II
CAUTION: DO NOT USE PV INPUT TERMINALS ON AC
COUPLED SYSTEMS. Plug (cap) all PV Input terminals for
AC-Coupled installations. Under no circumstances will the
PV Input terminals be used for AC-COUPLED.
