Battery Connection & Charging Information
WARNING: Shock Hazard. Installation must be performed
with care due to high battery current.
Inverter Battery Connection

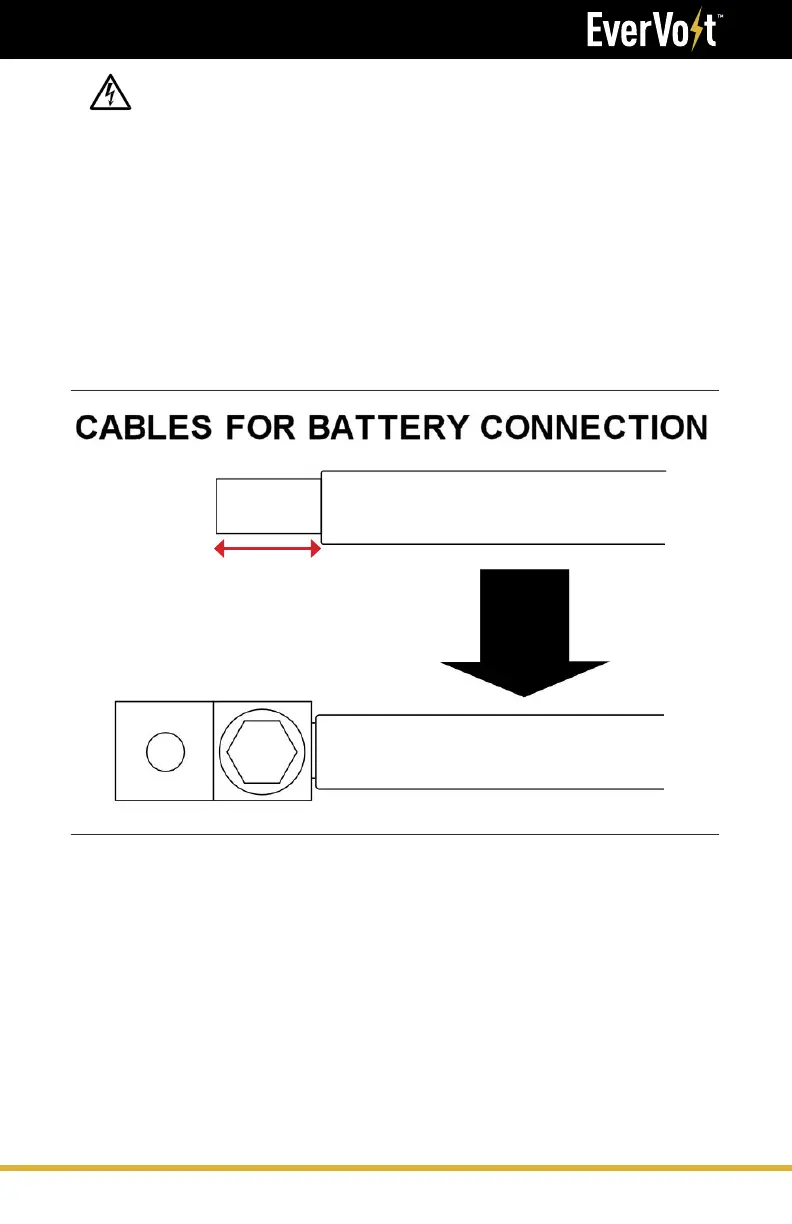

Step 3. Strip 15mm(0.6in) of insulation from each battery cable and
insert it into a ring lug. See Cable Length table above for connecting four
batteries in one enclosure.
Crimp or bolt ring lugs to the battery cables.
15 mm (0.6 in)
