The explanation below shows the case that pulses are output from Y0 when using forward rotation and
Y1 when using reverse rotation with the following conditions; Initial speed: 1 kHz, Target speed: 7kHz,
Acceleraiton time: 100 ms, Deceleration time: 100 ms.

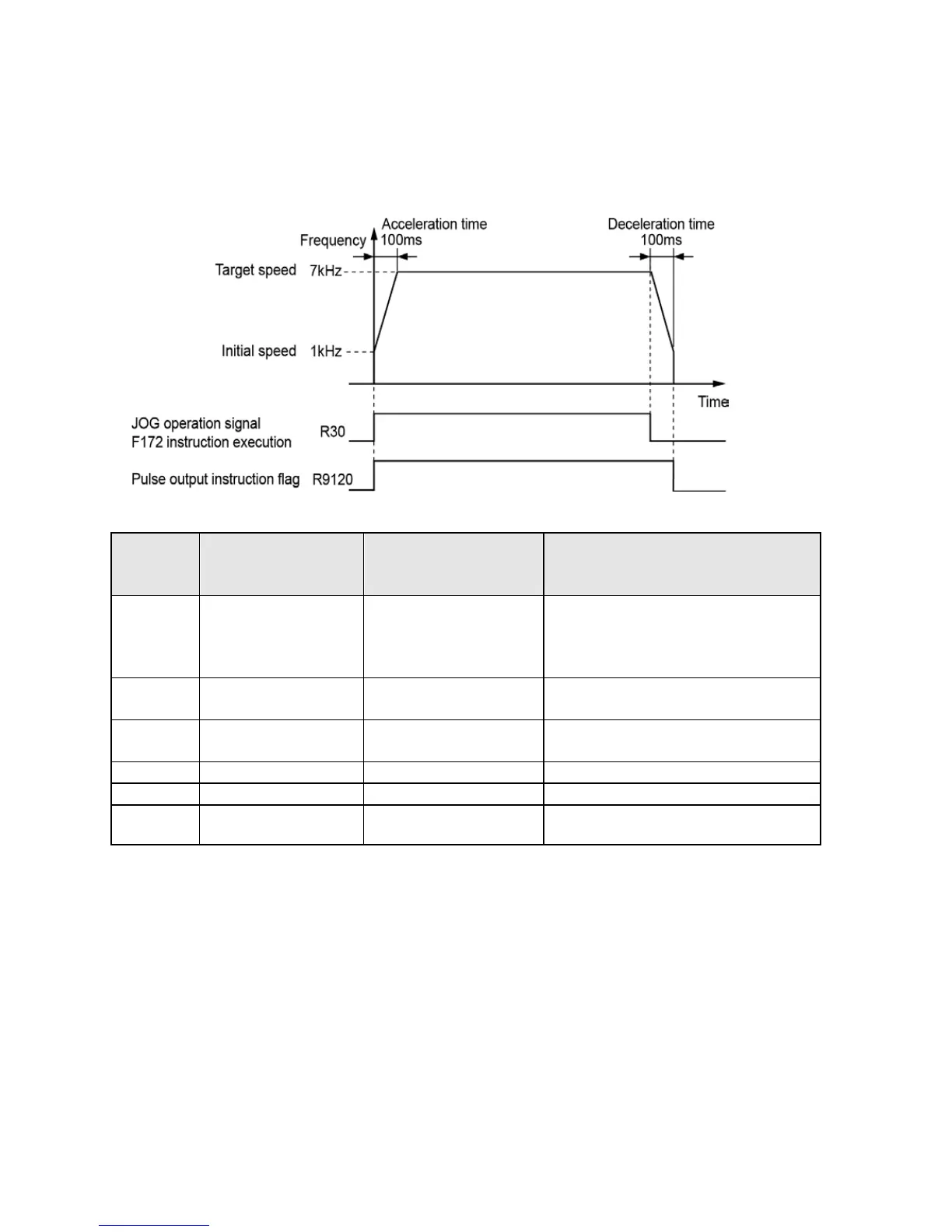

Example of timing chart
Setting item (Unit)
Example of sample
program
Settable range
DT300 Control code
Type 0 (No target value)
Output type: CW/CCW
H1000 0000 (Forward)
Set according to the control code
on the next page.
DT302 Initial speed (Hz) K1000
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
DT304 Target speed (Hz) K7000
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
DT306 Acceleration time (ms) K100 K1 to K32760
DT310 Target value (pulses ) K0 K－2,147,483,648 to K＋2,147,483,647
Note) When the control code is set to Type 0 (No target value), specify "0" for the target value.
