The explanation below shows the case that home return is performed with the following conditions; Initial
speed: 1 kHz, Target speed: 5 kHz, Creep speed: 500Hz, Acceleration time: 300 ms, Deceleration time:
500 ms.

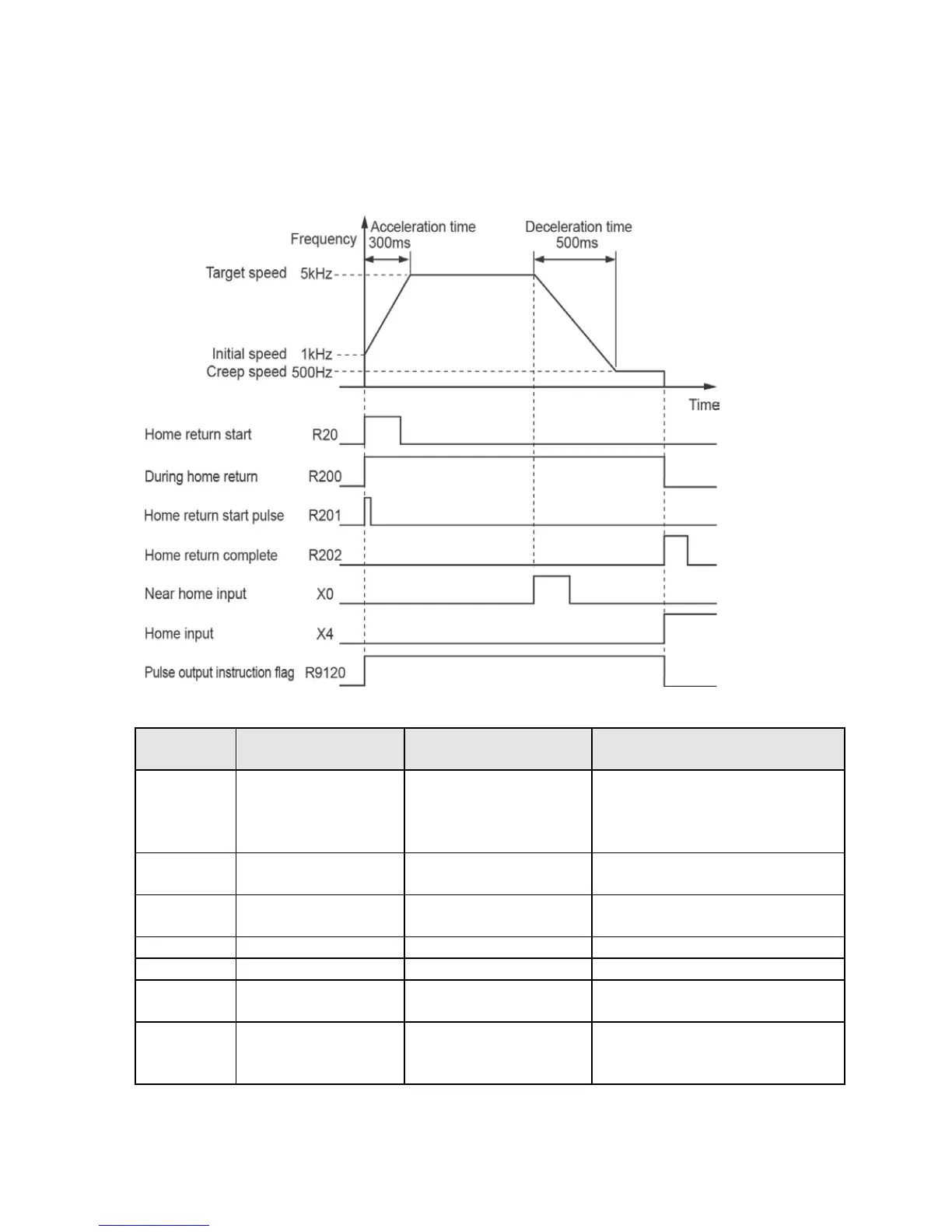

Example of timing chart
Data table
Data
register No.
Setting item (Unit)
Example of sample
program
Settable range
DT200 Control code
Home return type 1
Operation mode: Reverse
CW/CCW
H1001 0010
Set according to the control code
on the next page.
DT202 Initial speed (Hz) K1000
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
DT204 Target speed (Hz) K5000
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
DT206 Acceleration time (ms) K300 K1 to K32760
DT208
Deceleration time (ms)
K500
K1 to K32760
DT210 Creep speed (Hz) K500
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
DT212
Deviation counter clear
signal output time
K0 (Not output)
K0:Not output deviation counter
clear signal
K1 to K200 x 0.5ms(0.5ms～100ms)
