7.4.10 Data Table Control Instruction (F174)
- Pulses are output from the specified channel according to the specified data table.
- Positioning is performed sequentially according to the values of data tables, and stops at the data table
that the value of pulse output stop (K0) is written.
- When the deceleration stop is requested by the F0 instruction during the pulse output, the deceleration
stop is performed.

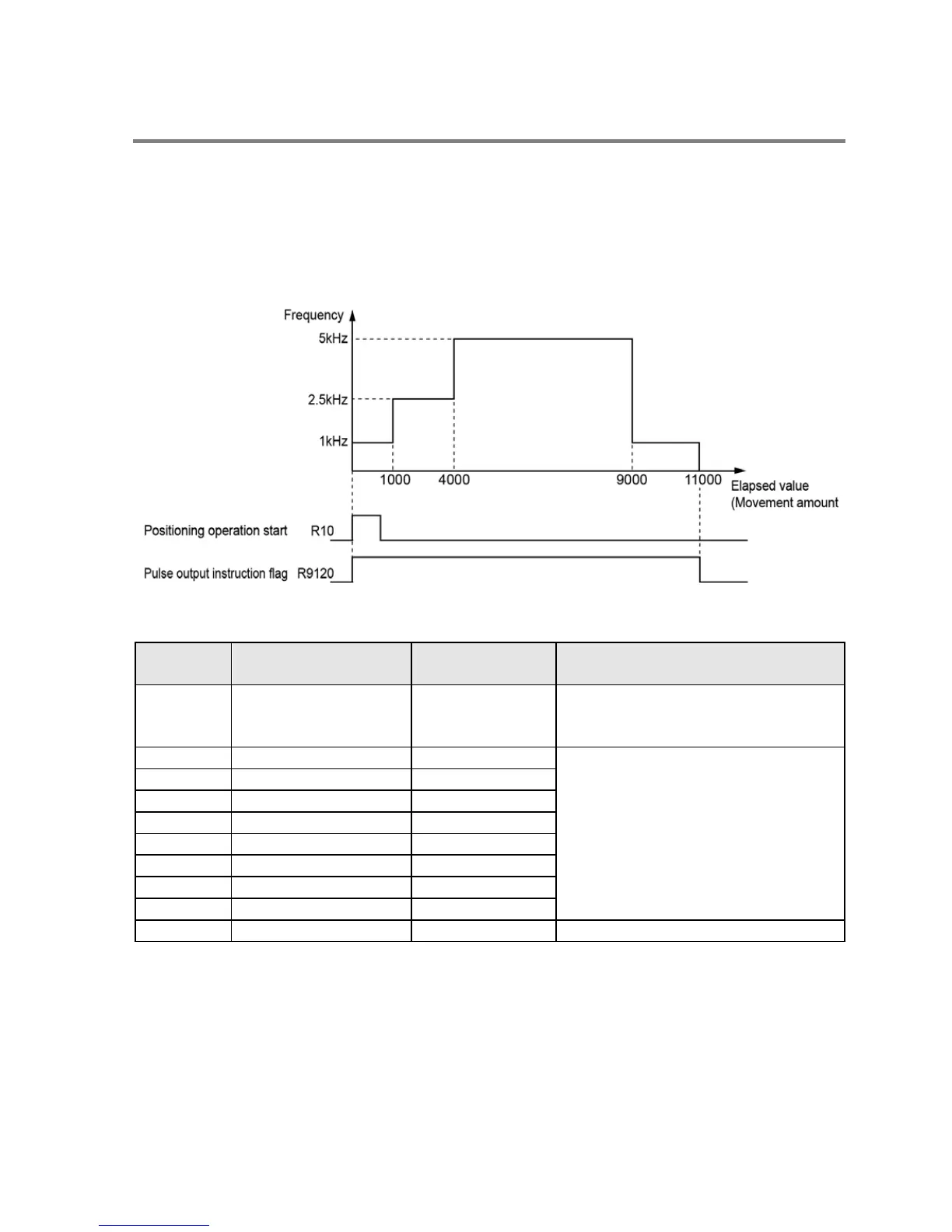

Example of timing chart
Data table
Data
register No.
Setting item (Unit)
Example of
sample program
Settable range
DT100 Control code
H1000 0010
Absolute
CW/CCW
Set according to the control code on the
next page.
DT102 Frequency 1 (Hz) K1000
Set frequencies in the following range.
K1 to K20000 (L14/L30 type)
K1 to K50000 (L40/L60 type)
Set target values in the following range.
K－2,147,483,648 to K＋2,147,483,647
DT104 Target value 1 (pulses) K1000
DT106
Frequency 2 (Hz)
K2500
DT108
Target value 2 (pulses)
K4000
DT110 Frequency 3 (Hz) K5000
DT112 Target value 3 (pulses) K9000
DT114
Frequency 4 (Hz)
K1000
DT116
Target value 4 (pulses)
K11000
DT118 End of table K0 K0 fixed
