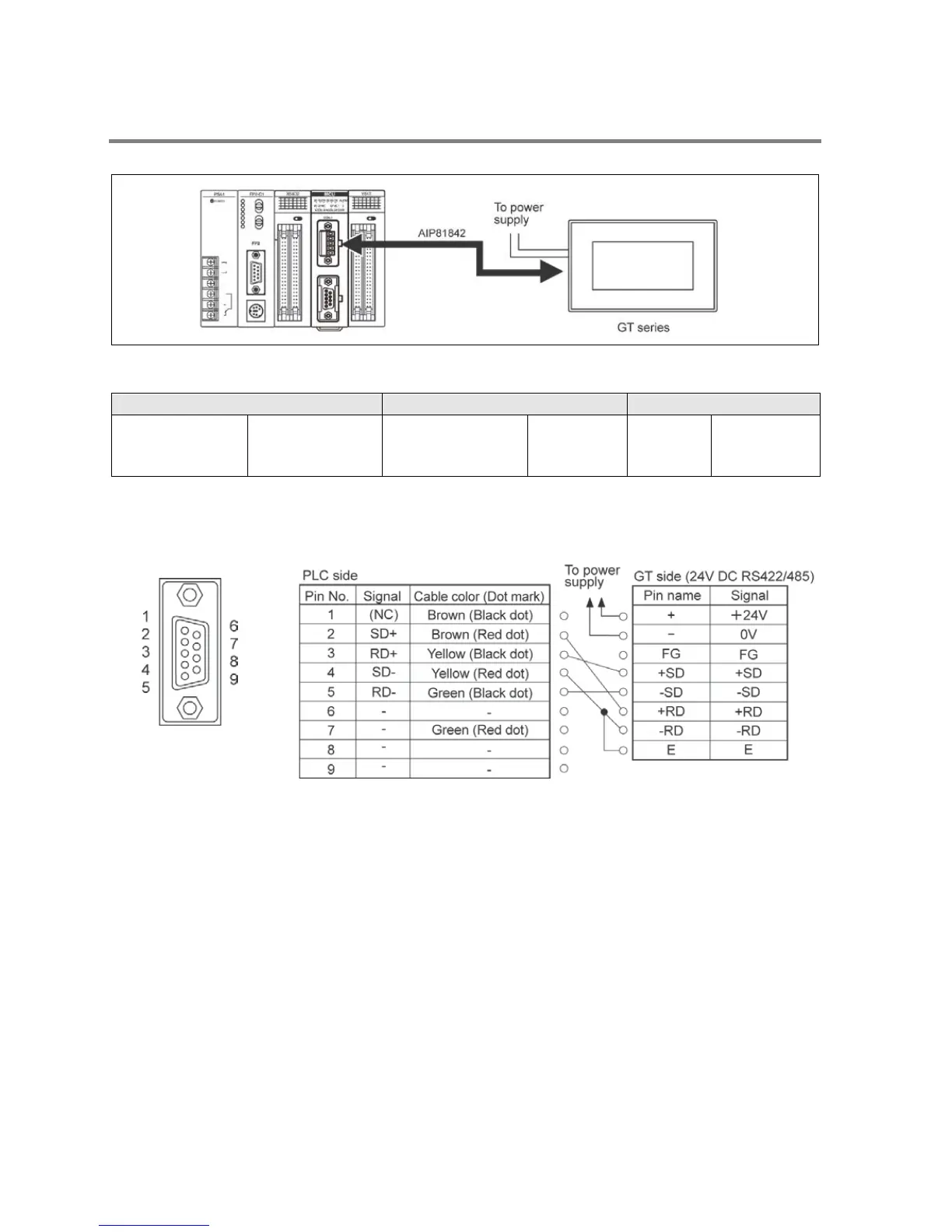

4.3.3 RS422 Connection with FP2/FP2SH COM Port

Connecting to the COM port

Usable models

PLC

PLC communication cable

Programmable display

FP2 Multi

Communication

Unit

Communication

block

FP2-CB422

D-SUB 9-pin

loose-wire cable

AIP81842

5 V DC

24 V DC

RS422/

RS485 type

Connecting to the FP2 Multi Communication Unit (MCU) + Communication block (RS422)
