Panasonic HDC-SD1 - Parts identification and handling

Before using
15
VQT1D38

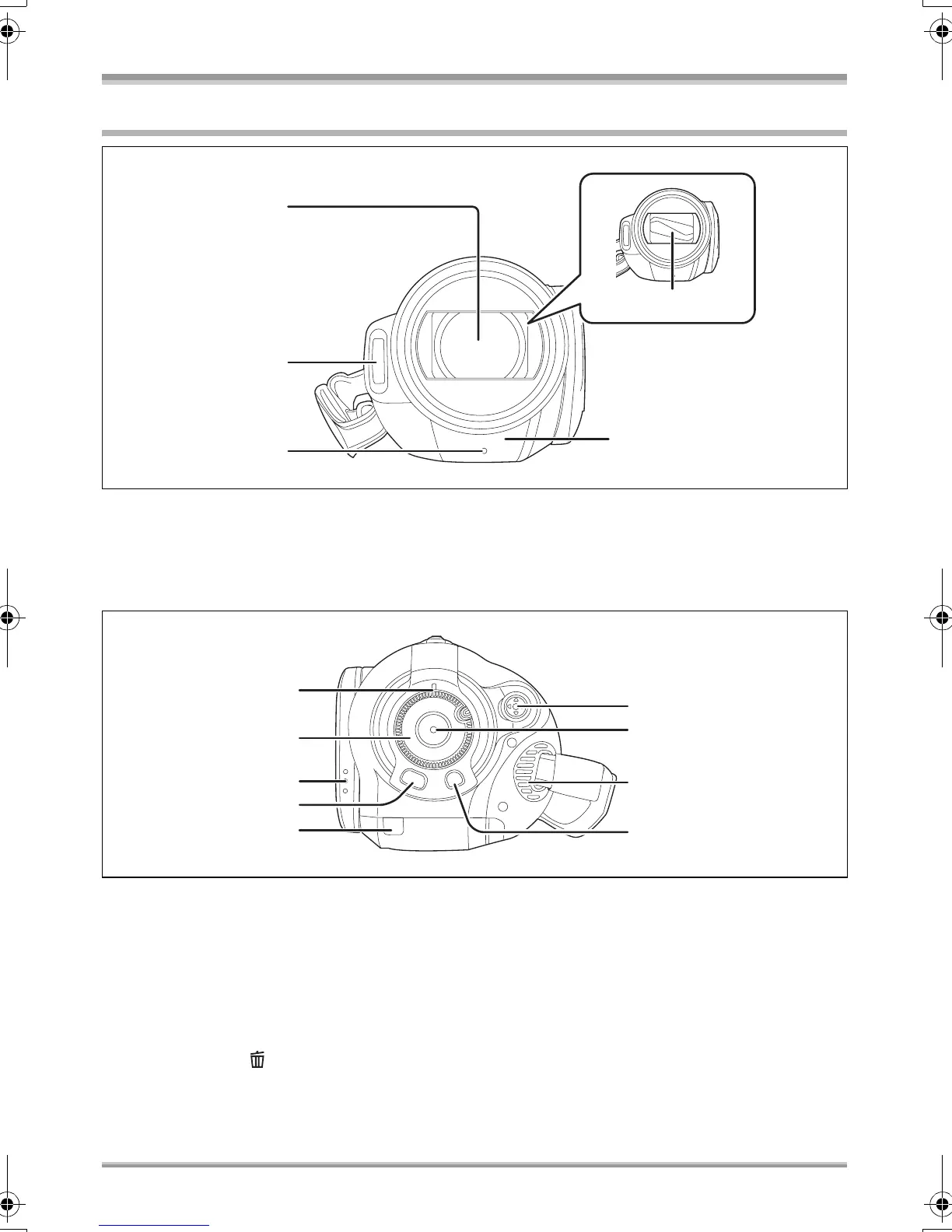

Parts identification and handling
1) Lens (LEICA DICOMAR)
2) Built-in flash (l 56)
3) Recording lamp (l 105)
4) White balance sensor/remote control sensor (l 22, 64)
5) Lens cover
6) Status indicator (l 29)
7) Mode dial (l 29)
8) LCD monitor open part (l 21)
9) Menu button [MENU] (l 36)
10) Battery cable cover (l 18)
11) Cursor button (l 32)
12) Recording start/stop button (l 43)
13) Cooling fan (inlet)
14) Delete button [ ] (l 72, 74)
ª About the cooling fan
≥The cooling fan rotates to prevent the internal temperature rising. Take care not to cover the inlet and
outlet when using this unit.
1
2
3
4
5
11
1
3
1
4
1
2
6
7
8
9
10
