30 Microphone terminal [MIC]
A compatible plug-in powered microphone can
be used as an external microphone.
Audio will be stereo (2 ch) with the external
microphone input.
Make sure that the microphone cable is out of
the way from the lens so it will not be recorded
in the images.
When the unit is connected with the AC
adaptor, sometimes noise may be heard
depending on the microphone type. In this
case, please switch to the battery for the power
supply and the noise will stop.
31 Mode dial ( 21)
32 Recording start/stop button ( 35)
33 Status indicator ( 21)
34 LCD/EVF select switch [EVF/LCD] ( 29)
35 Viewfiner ( 29)
36 Eyepiece corrector dial ( 30)
37 Photoshot button [ ] ( 40)
38 Zoom lever [W/T] (In recording mode)
( 43)
Volume lever [&VOL'] (In playback
mode) ( 71)

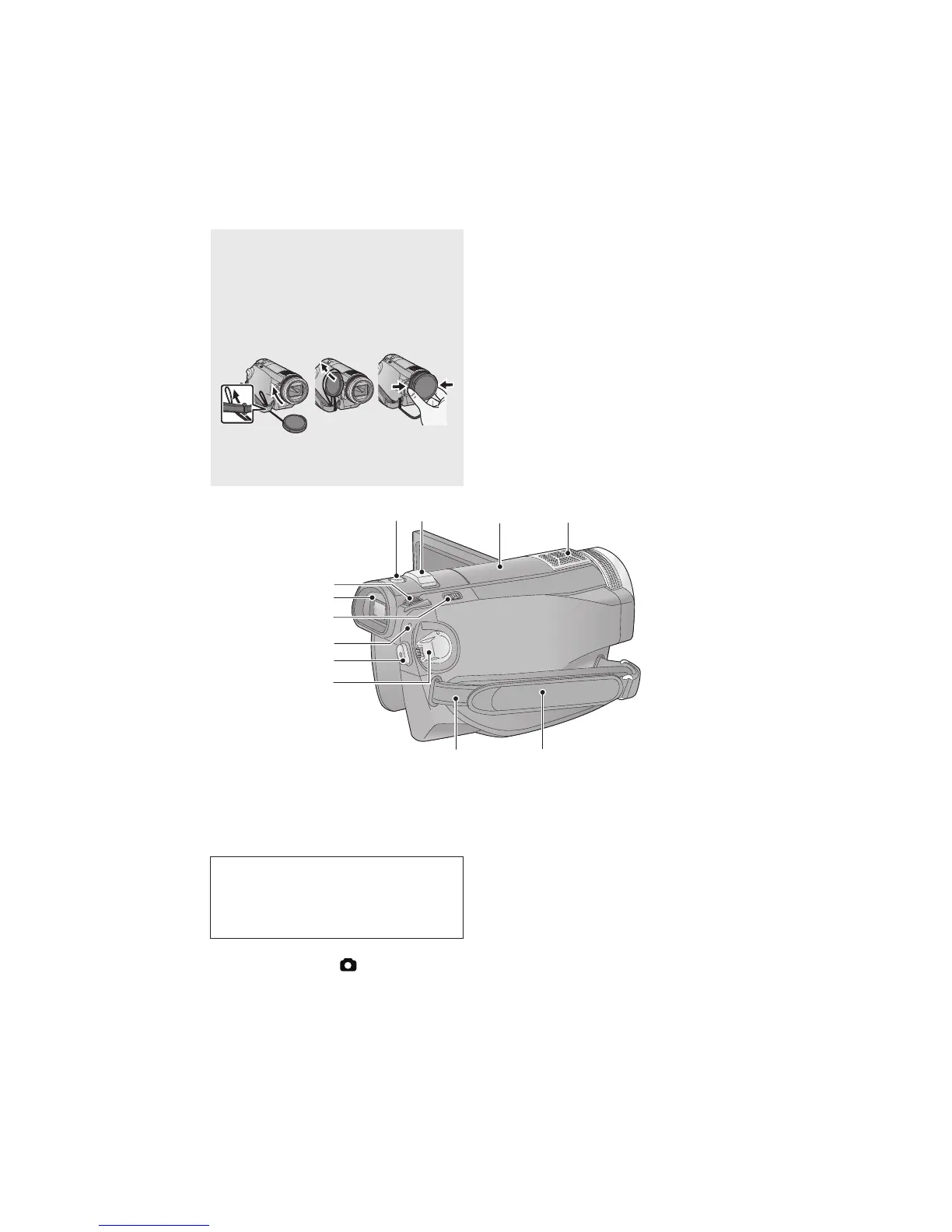

Attaching the lens cap
(Included in the Filter Kit
(VW-LF37WE; optional))
When the filter kit (VW-LF37WE; optional) is
used, protect the lens surface while the unit
is not used with the lens cap supplied with
the filter kit.
To attach or remove the lens cap, hold both
sides of the lens cap with the tips of your
finger and thumb.
31
32
33
34
35
36
37
38
39
40
41
42
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the viewfinder screen. However,
this is not a malfunction and does not affect
the recorded picture.
