1. Introduction and Installation
11

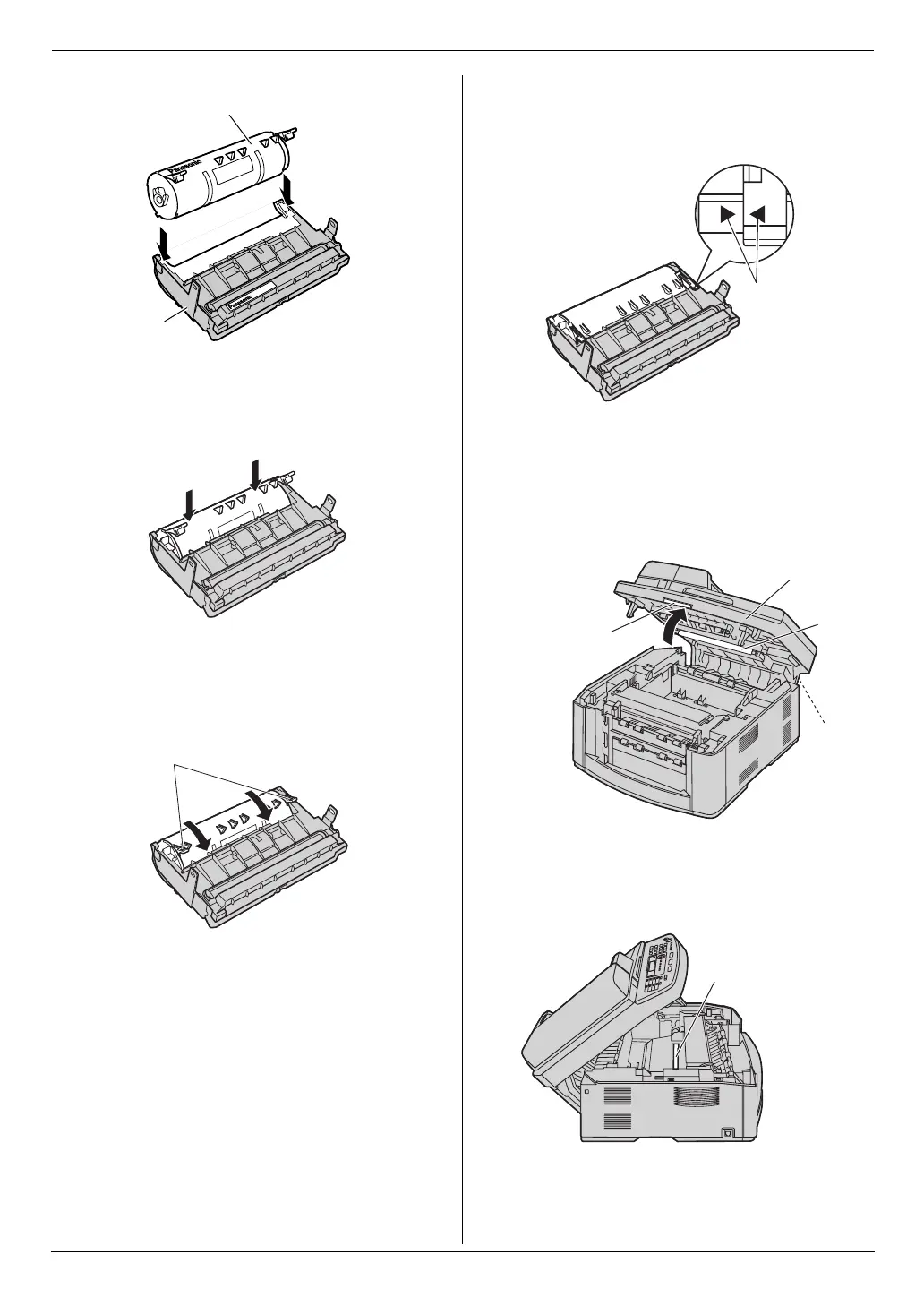

3 Place the toner cartridge (1) into the drum unit (2).
4 Firmly press down the toner cartridge to snap into
position.
5 Turn the two green levers (1) on the toner cartridge
firmly.
6 Make sure that the triangles (1) match to install the
toner cartridge correctly.
7 Lift the top cover release lever (1) and open the top
cover (2).
Important:
L Close the manual input tray (3) before
opening the top cover.
Note:
L Do not touch the transfer roller (4).
L If the lower glass (5) is dirty, clean it with a soft
and dry cloth.
2
1
1
1
1
2
4
3
5
FLB882CX-PFQX2773ZB-OI-en.book Page 11 Friday, October 5, 2007 11:45 AM
