1. Introduction and Installation
10

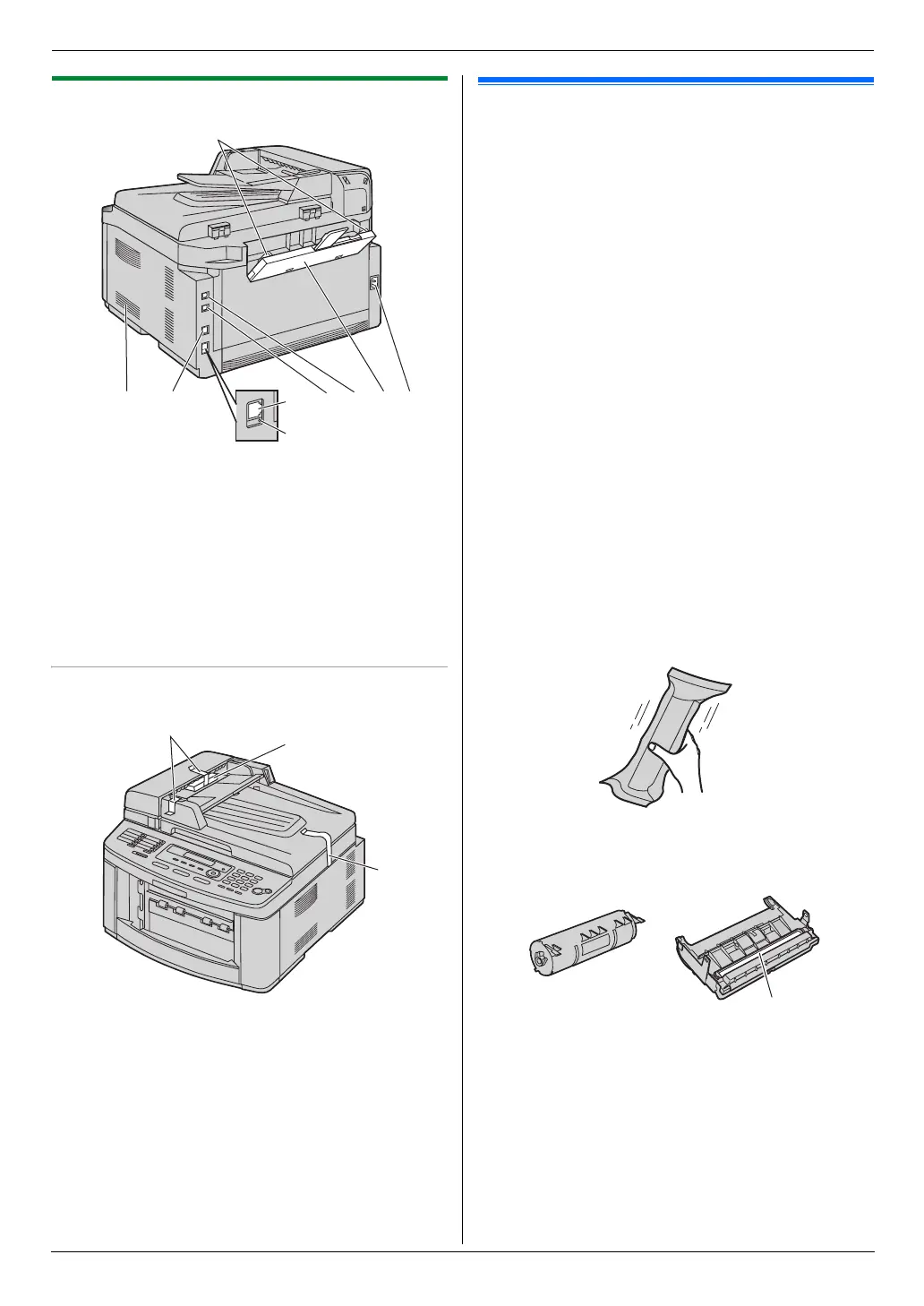

1.4.2 Rear view
Removing the shipping tape
Remove the shipping tape (1) and pad (2).
Note:
L Shipping tape positions are subject to change
without notice.
Installation
1.5 Toner cartridge and drum unit
The supplied toner cartridge is a starter toner cartridge.
Caution:
L Read the following instructions before you begin
installation. After you have read them, open the
drum unit protection bag. The drum unit contains
a photosensitive drum. Exposing it to light may
damage the drum. Once you have opened the
protection bag:
– Do not expose the drum unit to light for more
than 5 minutes.
– Do not touch or scratch the black drum
surface.
– Do not place the drum unit near dust or dirt,
or in a high humidity area.
– Do not expose the drum unit to direct
sunlight.
L We cannot be responsible for any damage to the
unit or degradation of print quality which may
occur from the use of a non-Panasonic toner
cartridge and drum unit.
L Do not leave the toner cartridge out of the
protection bag for a long time. It will decrease the
toner life.
L Do not add toner to the toner cartridge.
1 Before opening the protection bag of the new toner
cartridge, shake it vertically more than 5 times.
2 Remove the toner cartridge and drum unit from the
protection bags.
L Do not touch or scratch the black drum surface
(1).
A Recording paper guides
B Speaker
C USB interface connector
D LAN interface connector
E LED
F External telephone jack
G Telephone line jack
H Manual input tray
I Power inlet
A
B C H I
F
G
D
E
1
2
1
1
