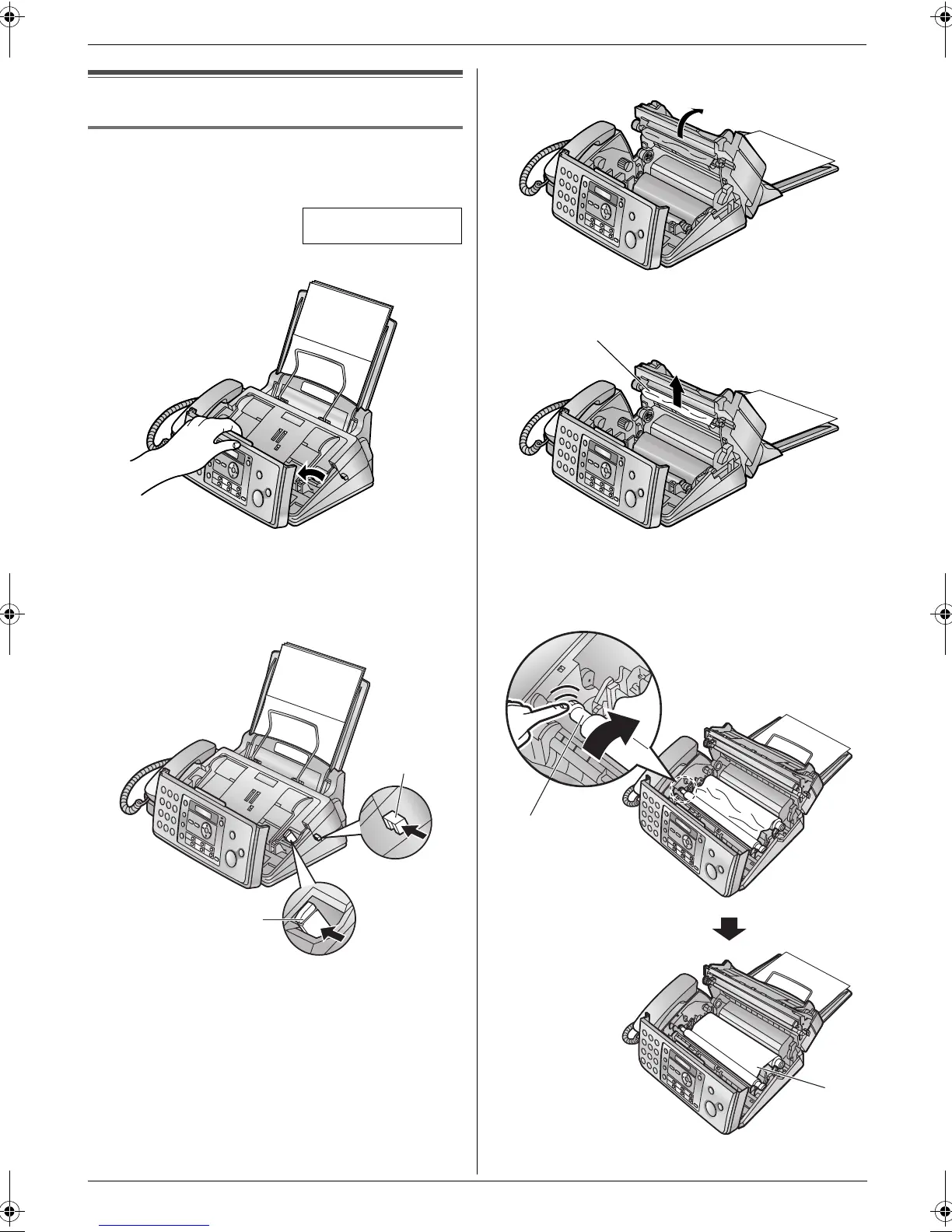

9 Maintenan ceJams
9.1 Recording paper jams
9.1.1 When the recording paper has
jammed in the unit
The display will show the following.
PAPER JAMMED
1 Open the front cover by pulling up the centre part.
2 Release the back cover by pushing the green button
(1).
L You can also release the back cover by pushing
in the green lever (2).
3 Open the back cover.
4 Remove the jammed recording paper (3).
5 Turn the blue gear (4) in the direction of the arrow
until the ink film is tight (5) and at least one layer of
ink film is wrapped around the blue core (6).
1
2
3
4
5
