Panasonic KX-FT931LA-B

167
KX-FT931LA-B

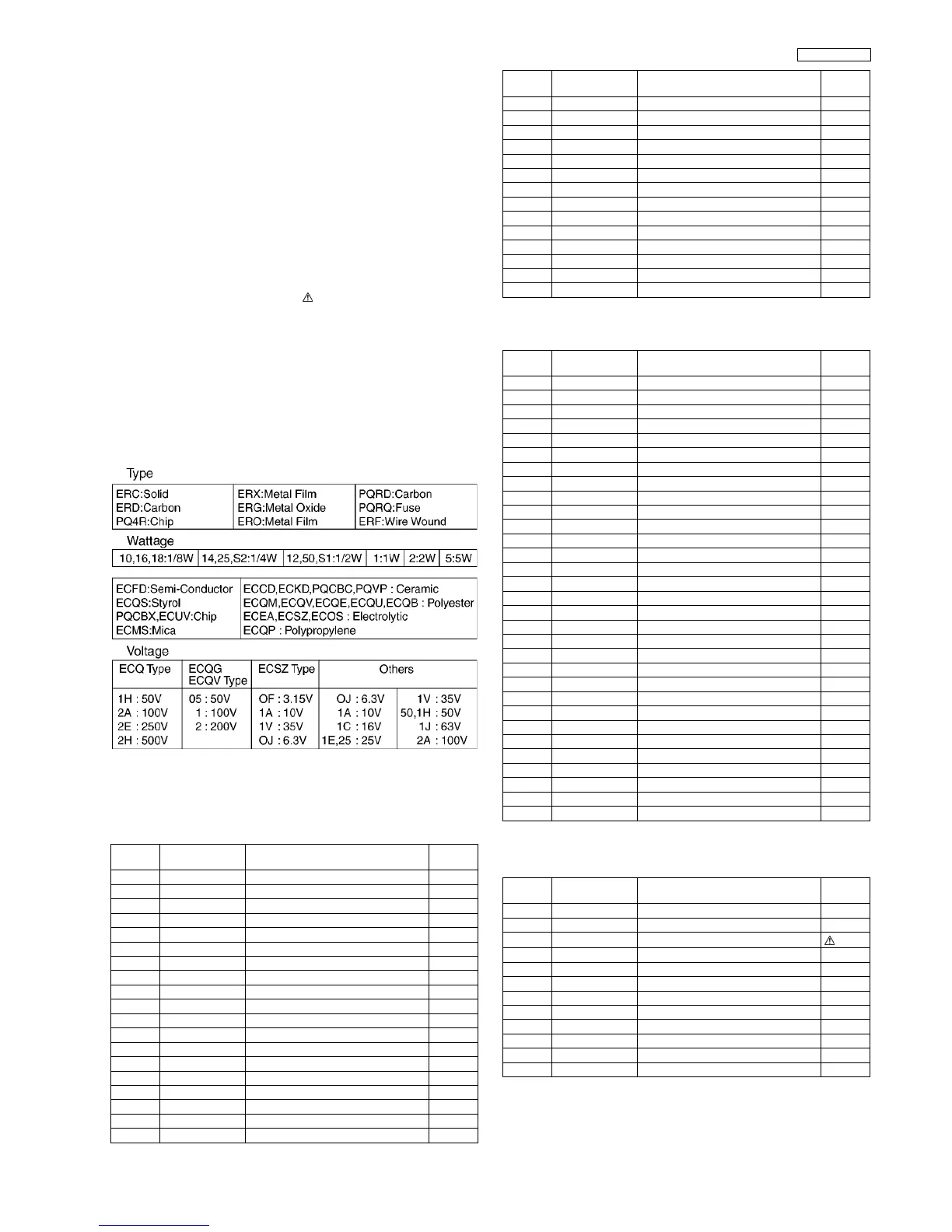

20.2. Replacement Parts List
Notes:
1. The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability is dependent
on the type of assembly, and in accordance with the laws
governing parts and product retention.
After the end of this period, the assembly will no longer be
available.
2. Important safety notice
Components identified by mark have special charac-
teristics important for safety. When replacing any of these
components, use only manufacture's specified parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) P=µµF
*Type & Wattage of Resistor
20.3. Cabinet and Mechaical Parts
20.3.1. Operation Panel Section
20.3.2. Upper Cabinet Section
20.3.3. Lower Cabinet Section
Ref.
No.
Part No. Part Name & Description Remarks
1 PFKS1139Z2 TRAY, DOCUMENT
2 PFQT2393Y LABEL, FACE DOWN
3 PFGV1018Z TRANSPARENT PLATE
4 PFGP1303V PANEL, LCD
5 PFGD1067Z TELEPHONE CARD
6 PFGG1280N2 GRILLE, Sub
7 PFHX1947Z1 SPACER, RING SHEET
8 PFBX1238Z5 BUTTON, START KEY
9 PFBX1237X3 BUTTON, DIAL KEY
10 PFBX1239Y3 BUTTON, FUNCTION KEY
11 PFBC1140Z1 BUTTON, ABSENT KEY
12 PFGG1278T2 GRILLE, OPERATION PANEL
13 PFDG1450Z GEAR, PLATEN
14 PFDJ1097Z SPACER, PLATEN ROLLER (Right)
15 PFDN1077Z ROLLER, PLATEN ROLLER
16 PFDJ1096Z SPACER, PLATEN ROLLER (Left)
17 PFDG1015Y GEAR
18 PFUS1222Z SPRING
19 PFKR1087Z1 GUIDE, RIGHT
20 PFKR1086Z1 GUIDE, LEFT
21 PFUV1088Z2 COVER, DOCUMENT GUIDE
22 PFHX1834Z READ SHEET (WHITE PLATE)
23 PFHG1210Z RUBBER, SEPARATION
24 PFHR1504Y COVER, SEPARATION HOLDER
25 PFUS1588Z SPRING, SEP. HOLDER
26 PFHR1503Z COVER, DOC. FEED SUPPORT
27 PFUS1631Z SPRING, DOC. SUPPORT
28 PFUV1105Z2 COVER, OPERATION PANEL
29 PFDF1017Z SHAFT
30 PFDR1045Z ROLLER, DOCUMENT SUB
31 PFUS1587Z SPRING, DOCUMENT SUB ROLLER
32 PFJS09M27Z CONNECTOR, 9 PIN
33 PFHX1973Z SPACER, SHEET
Ref.
No.
Part No. Part Name & Description Remarks
51 PFGT3129Z-M NAME PLATE
52 PFKV1135Z2 COVER
53 PFKM1173Z2 CABINET, HANDSET CRADLE
54 Not Used
55 PFDE1254Y1 LEVER S
56 PFUS1585Z SPRING, LOCK LEVER
57 PFDE1261Z SPACER, HOLDER (RIGHT)
58 L1CC00000061 PRINTER UNITS
59 PFDE1260Z SPACER, HOLDER (LEFT)
60 PFBH1031Z2 BUTTON, HOOK
61 PFDE1248Y LEVER, PAPER SENSOR
62 PFJS11N16Y CONNECTOR, 11 PIN
63 PFUS1589Z SPRING, HOOK LVER
64 PFAS50P003Z SPEAKER S
65 PFJS02N77Z CONNECTOR, 2 PIN S
66 PFQT2425Z LABEL, ARROW
67 PFUS1583Y SPRING, EARTH HEAD
68 PFQT2528Z LABEL, PAPER CAUTION
69 PFUS1254Z SPRING, POP UP
70 PFUS1581Z SPRING, EARTH LOCK LEVER
71 PFQT2751Z LABEL, PAPER SET
72 Not Used
73 PFKM1189Z2 CABINET, MAIN
74 PFJS07N09Y CONNECTOR, 7 PIN
75 N2GZBE000013 IMAGE SENSOR (CIS)
76 PFUS1702Z SPRING, POP UP
77 PFDG1449Z GEAR, FEED ROLLER
78 PFDN1078Z ROLLER, FEED
79 PFUS1584X SPRING, EARTH
80 PFHX1350Z SPACER, SHEET
81 PFUS1318Z SPRING, THERMAL HEAD
Ref.
No.
Part No. Part Name & Description Remarks
140 PFHA1001Z RUBBER, LEGS
141 PFMD1088Z BOTTOM FRAME
142 PFJA03A012Z POWER CORD
143 XWC4BFJ WASHER
144 PQLB1E1 INSULATOR, FERRITE CORE
145 J0KE00000101 FILTER
146 PQHR945Z BAND
147 PFDE1253Y LEVER, JAM SENSOR
148 PFJS09P92X CONNECTOR, 9 PIN
149 PFDR1072Y ROLLER, SEPARATION
150 PFMH1173Z COVER, POWER SUPPLY BOARD
151 Not Used
Ref.
No.
Part No. Part Name & Description Remarks
