Panasonic KX-FT931LA-B

92
KX-FT931LA-B
12.5.4. ADF (Auto Document Feed) Section

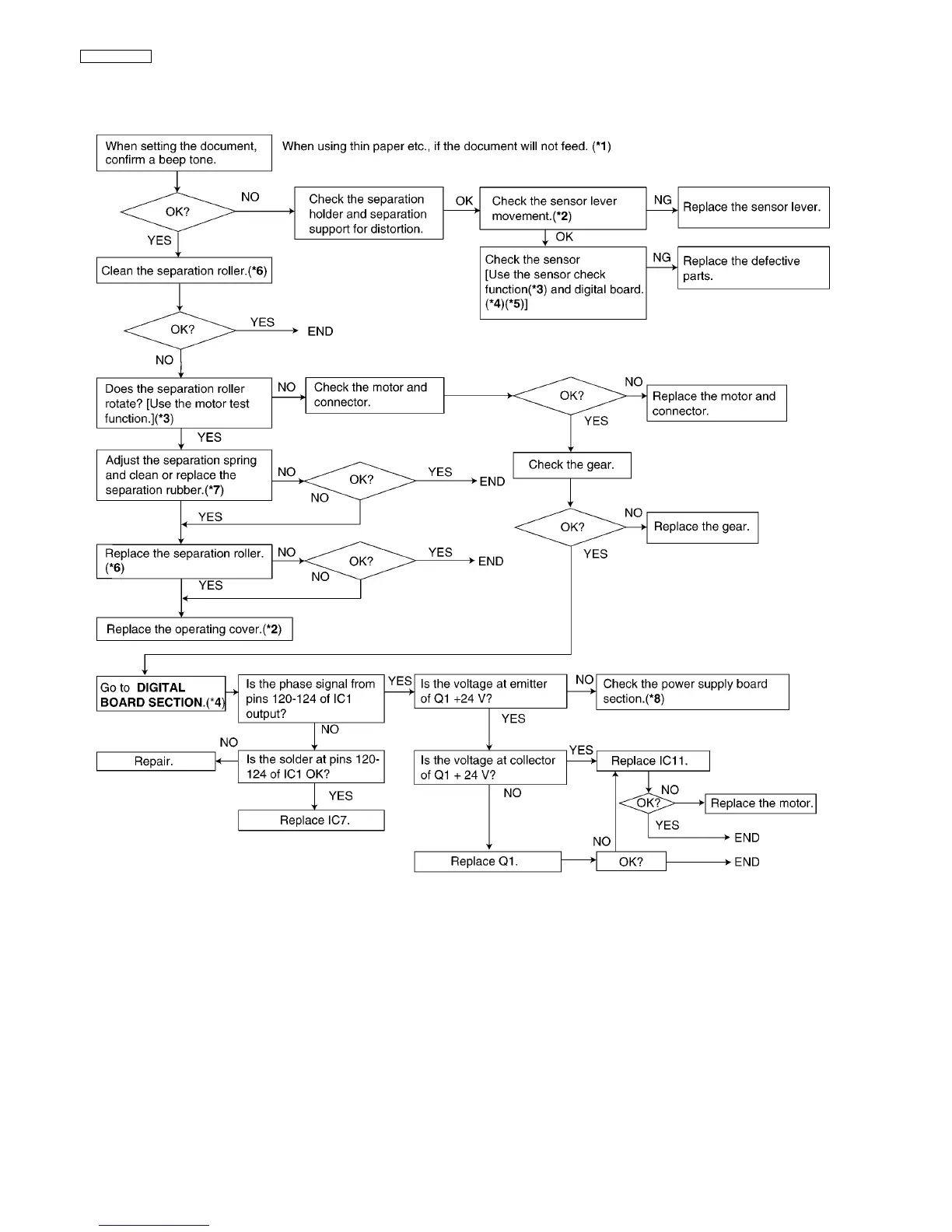

12.5.4.1. No Document Feed
Note:
(*1) : Refer to Multiple Feed (P.94)
(*2) : Refer to How to Remove the Operation Board, LCD and Platen Roller (P.120)
(*3) : Refer to Test Mode (P.54)
(*4) : Refer to Digital Board Section (P.99)
(*5) : Refer to Sensor Section (P.113)
(*6) : Refer to How to Remove the Gear Block and Separation Roller (P.126)
(*7) : Refer to How to Remove the Separation Holder and Document Feed Support (P.121)
(*8) : Refer to Power Supply Board Section (P.109)
