Panasonic KX-FT931LA-B

95
KX-FT931LA-B

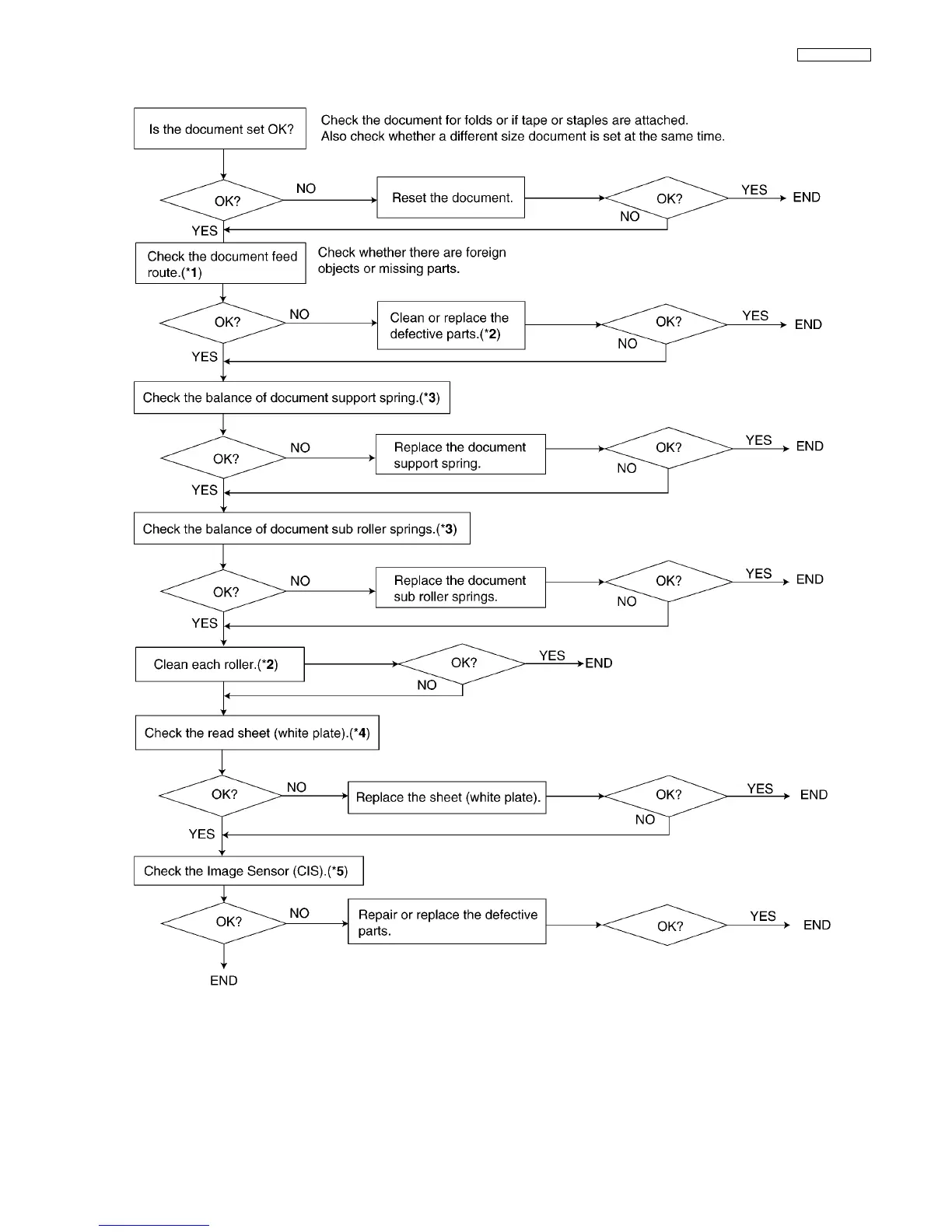

12.5.4.4. Skew
Note:
(*1) : Refer to Maintenance Items and Componet Locations (P.128)
(*2) : Refer to Disassembly and Assembly Instructions (P.117)
(*3) : Refer to How to Remove the Separation Holder and Document Feed Support (P.121)
(*4) : Refer to How to Remove the Operation Board, LCD and Platen Roller (P.120)
(*5) : Refer to How to Remove the Image Sensor (CIS) and Feed Roller (P.122)
