Panasonic KX-TDA100D

BRI4/BRI8 Card

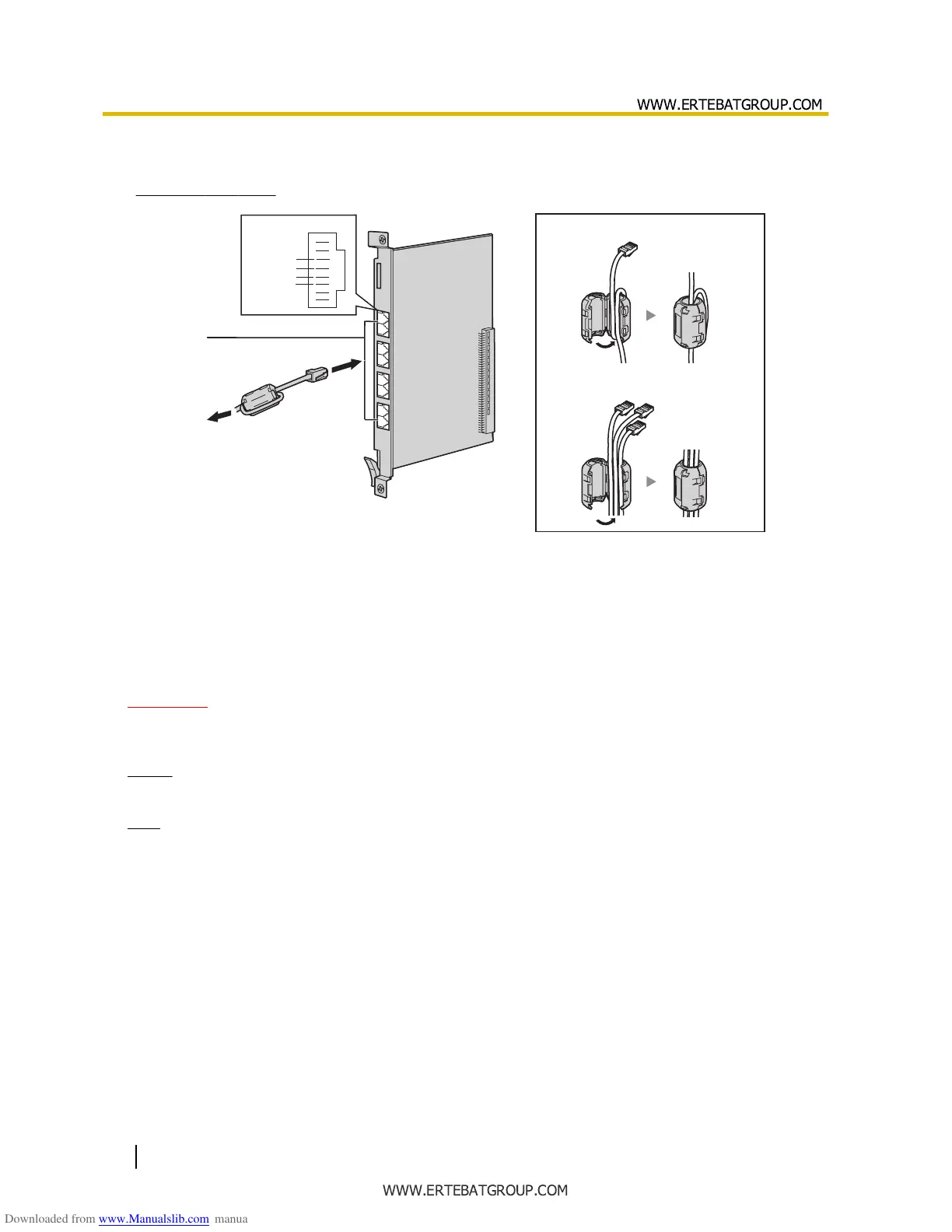

Example: BRI8 Card To attach the ferrite core
To NT1
LINE 1 to
LINE 8
RJ45
TX2(-)
RX1(-)
RX2(+)
TX1(+)
When using 1 or 2 cables:
When using 3 or 4 cables:
• For every 4 cables, use 1 ferrite core; a
ferrite
core
holds
a
maximum
of 4 cables.
• Attach the ferrite core as close to the
card's connector as possible.
Accessories (included): Ferrite core(s) ´ 1 (BRI4 card) or 2 (BRI8 card)
User-supplied (not included): RJ45 connector
CAUTION
Connect
these
optional
service
cards
to the trunk through an NT1; do not connect to the U interface of the
trunk directly.
Notice
When connecting the RJ45 connector, attach the included ferrite core.
Note
• LINE 5 to LINE 8 are for BRI8 card only.
• These optional service cards have 100 W of terminal resistance. For use in point to multi-point
connection, the cards must be placed at the end of the bus.
14 Getting Started
2.4 Installing the Trunk Cards
