KX-TG9471B/KX-TG9472B/KX-TGA939T

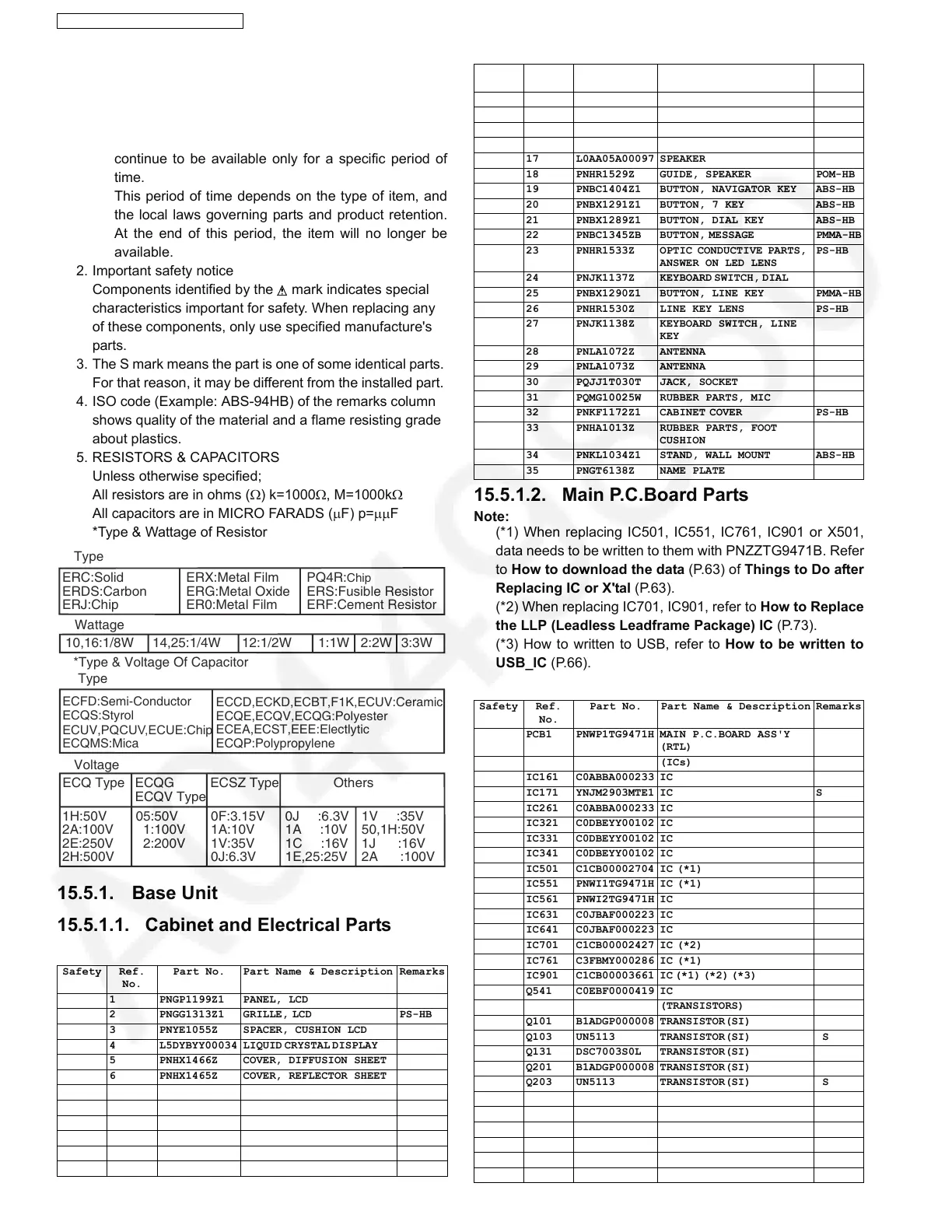

15.5. Replacement Parts List
1. RTL (Retention Time Limited)
Note:
The “RTL” marking indicates that its Retention Time is
Limited.
When production is discontinued, this item will
continue to be available only for a specific period of
time.
This period of time depends on the type of item, and
the local laws governing parts and product retention.
At the end of this period, the item will no longer be
available.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) p=µµF
*Type & Wattage of Resistor
15.5.1. Base Unit
15.5.1.1. Cabinet and Electrical Parts
15.5.1.2. Main P.C.Board Parts
Note:
(*1) When replacing IC501, IC551, IC761, IC901 or X501,
data needs to be written to them with PNZZTG9471B. Refer
to How to download the data (P.63) of Things to Do after
Replacing IC or X'tal (P.63).
(*2) When replacing IC701, IC901, refer to How to Replace
the LLP (Leadless Leadframe Package) IC (P.73).
(*3) How to written to USB, refer to How to be written to
USB_IC (P.66).
Safety Ref.
No.
Part No. Part Name & Description Remarks
1 PNGP1199Z1 PANEL, LCD
2 PNGG1313Z1 GRILLE, LCD PS-HB
3 PNYE1055Z SPACER, CUSHION LCD
4 L5DYBYY00034 LIQUID CRYSTAL DISPLAY
5 PNHX1466Z COVER, DIFFUSION SHEET
6 PNHX1465Z COVER, REFLECTOR SHEET
7 PNHR1528Z LCD PLATE PMMA-HB
8 PNHR1527Z GUIDE, LCD ABS-HB
9 PNHX1502Z COVER, LCD SHEET
10 PNJE1121Z LEAD WIRE, FFC
11 PNKV1136Z1 COVER, LCD ABS-HB
12 PNGP1198Z1 PANEL, UPPER
Type
ERC:Solid
ERDS:Carbon
ERJ:Chip
ERX:Metal Film
ERG:Metal Oxide
ER0:Metal Film
PQ4R: Chip
ERS:Fusible Resistor
ERF:Cement Resistor
Type
ECFD:Semi-Conductor
ECQS:Styrol
ECUV,PQCUV,ECUE:Chip
ECQMS:Mica
ECCD,ECKD,ECBT,F1K,ECUV:Ceramic
ECQE,ECQV,ECQG:Polyester
ECEA,ECST,EEE:Electlytic
ECQP:Polypropylene
Wattage
*Type & Voltage Of Capacitor
10,16:1/8W 14,25:1/4W 12:1/2W 1:1W 2:2W 3:3W
Voltage
ECQ Type ECQG
ECQV Type
05:50V
1:100V
2:200V
ECSZ Type
0J :6.3V
1A :10V
1C :16V
1E,25:25V
1V :35V
50,1H:50V
1J :16V
2A :100V
0F:3.15V
1A:10V
1V:35V
0J:6.3V
Others
1H:50V
2A:100V
2E:250V
2H:500V
13 PNGP1204Z1 PANEL, LINE KEY
14 6SA522A RUBBER PARTS, RING
15 PNKM1233Z1 UPPER CABINET PS-HB
16 PNBH1016Z1 HOOK LEVER ABS-HB
1 7 L 0 A A 0 5 A 0 0 0 9 7 S P E A K E R
18 PNHR1529Z GUIDE, SPEAKER POM-HB
19 PNBC1404Z1 BUTTON, NAVIGATOR KEY ABS-HB
20 PNBX1291Z1 BUTTON, 7 KEY ABS-HB
21 PNBX1289Z1 BUTTON, DIAL KEY ABS-HB
22 PNBC1345ZB BUTTON, MESSAGE PMMA-HB
23 PNHR1533Z OPTIC CONDUCTIVE PARTS,
ANSWER ON LED LENS
PS-HB
24 PNJK1137Z KEYBOARD SWITCH, DIAL
25 PNBX1290Z1 BUTTON, LINE KEY PMMA-HB
26 PNHR1530Z LINE KEY LENS PS-HB
27 PNJK1138Z KEYBOARD SWITCH, LINE
KEY
2 8 P N L A 1 0 7 2 Z A N T E N N A
2 9 P N L A 1 0 7 3 Z A N T E N N A
30 PQJJ1T030T JACK, SOCKET
31 PQMG10025W RUBBER PARTS, MIC
32 PNKF1172Z1 CABINET COVER PS-HB
33 PNHA1013Z RUBBER PARTS, FOOT
CUSHION
34 PNKL1034Z1 STAND, WALL MOUNT ABS-HB
35 PNGT6138Z NAME PLATE
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PNWP1TG9471H MAIN P.C.BOARD ASS'Y
(RTL)
(ICs)
I C 1 6 1 C 0 A B B A 0 0 0 2 3 3 I C
I C 1 7 1 Y N J M 2 9 0 3 M T E 1 I C S
I C 2 6 1 C 0 A B B A 0 0 0 2 3 3 I C
I C 3 2 1 C 0 D B E Y Y 0 0 1 0 2 I C
I C 3 3 1 C 0 D B E Y Y 0 0 1 0 2 I C
I C 3 4 1 C 0 D B E Y Y 0 0 1 0 2 I C
IC501 C1CB00002704 IC (*1)
IC551 PNWI1TG9471H IC (*1)
I C 5 6 1 P N W I 2 T G 9 4 7 1 H I C
I C 6 3 1 C 0 J B A F 0 0 0 2 2 3 I C
I C 6 4 1 C 0 J B A F 0 0 0 2 2 3 I C
IC701 C1CB00002427 IC (*2)
IC761 C3FBMY000286 IC (*1)
IC901 C1CB00003661 IC (*1) (*2) (*3)
Q 5 4 1 C 0 E B F 0 0 0 0 4 1 9 I C
(TRANSISTORS)
Q101 B1ADGP000008 TRANSISTOR(SI)
Q103 UN5113 TRANSISTOR(SI) S
Q131 DSC7003S0L TRANSISTOR(SI)
Q201 B1ADGP000008 TRANSISTOR(SI)
Q203 UN5113 TRANSISTOR(SI) S
Q231 DSC7003S0L TRANSISTOR(SI)
Q381 B1ADGE000012 TRANSISTOR(SI)
Q386 B1ADGE000012 TRANSISTOR(SI)
Q387 B1ABDF000017 TRANSISTOR(SI)
Q621 DSA2001R0L TRANSISTOR(SI)
Q622 PQVTDTC143E TRANSISTOR(SI) S
Safety Ref.
No.
Part No. Part Name & Description Remarks
