KX-TG9471B/KX-TG9472B/KX-TGA939T

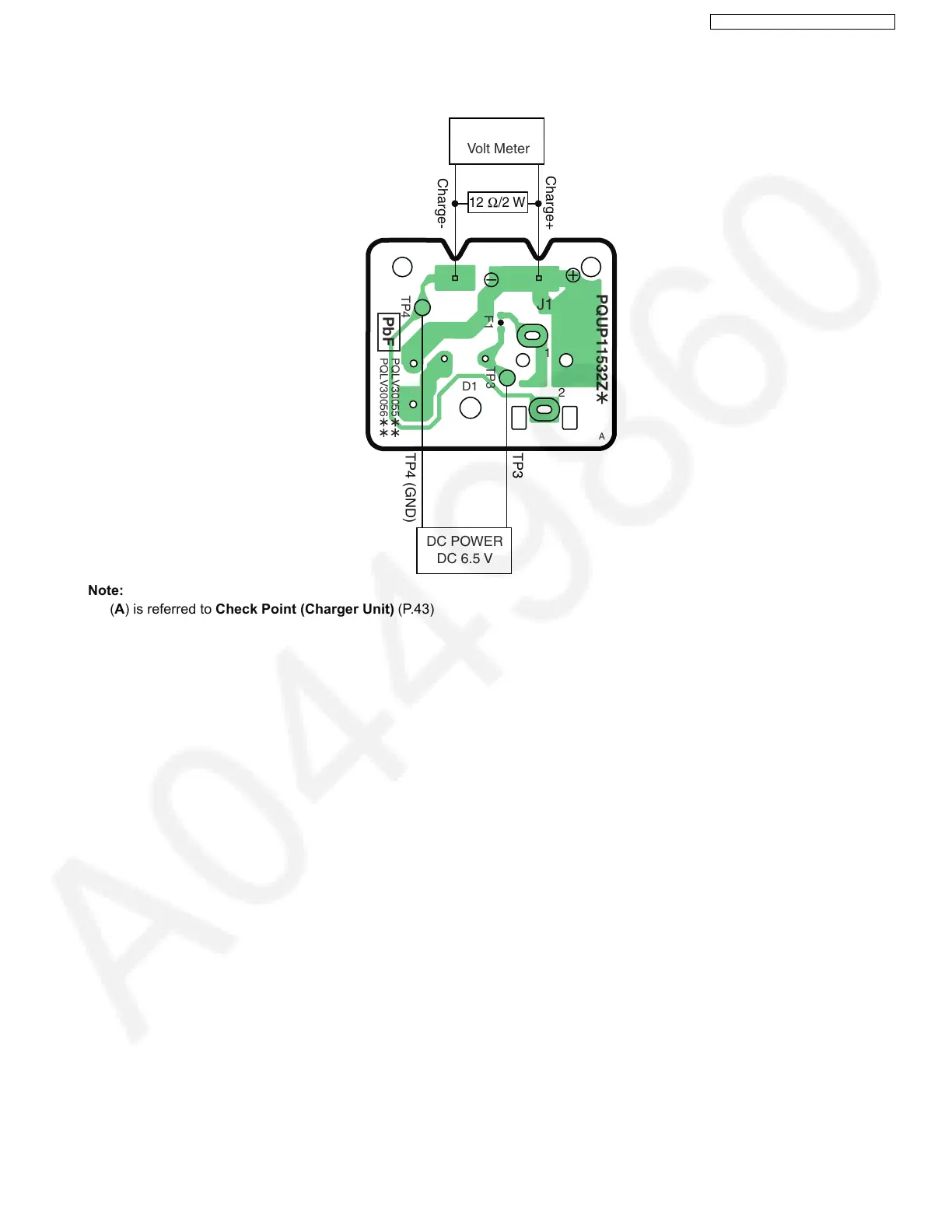

11.4. Adjustment Standard (Charger Unit)
When connecting the simulator equipment for checking, please refer to below.
11.4.1. Bottom View
Note:
(A) is referred to Check Point (Charger Unit) (P.43)
TP4
TP3
1
2
J1
D1
A
F1
PbF
PQLV30055 PQLV30056
PQUP11532Z
Charge-
Charge+
12 /2 W
Digital
Volt Meter
(A)
DC POWER
DC 6.5 V
TP3
TP4 (GND)
