Panasonic KX-TG9471B

108
KX-TG9471B/KX-TG9472B/KX-TGA939T

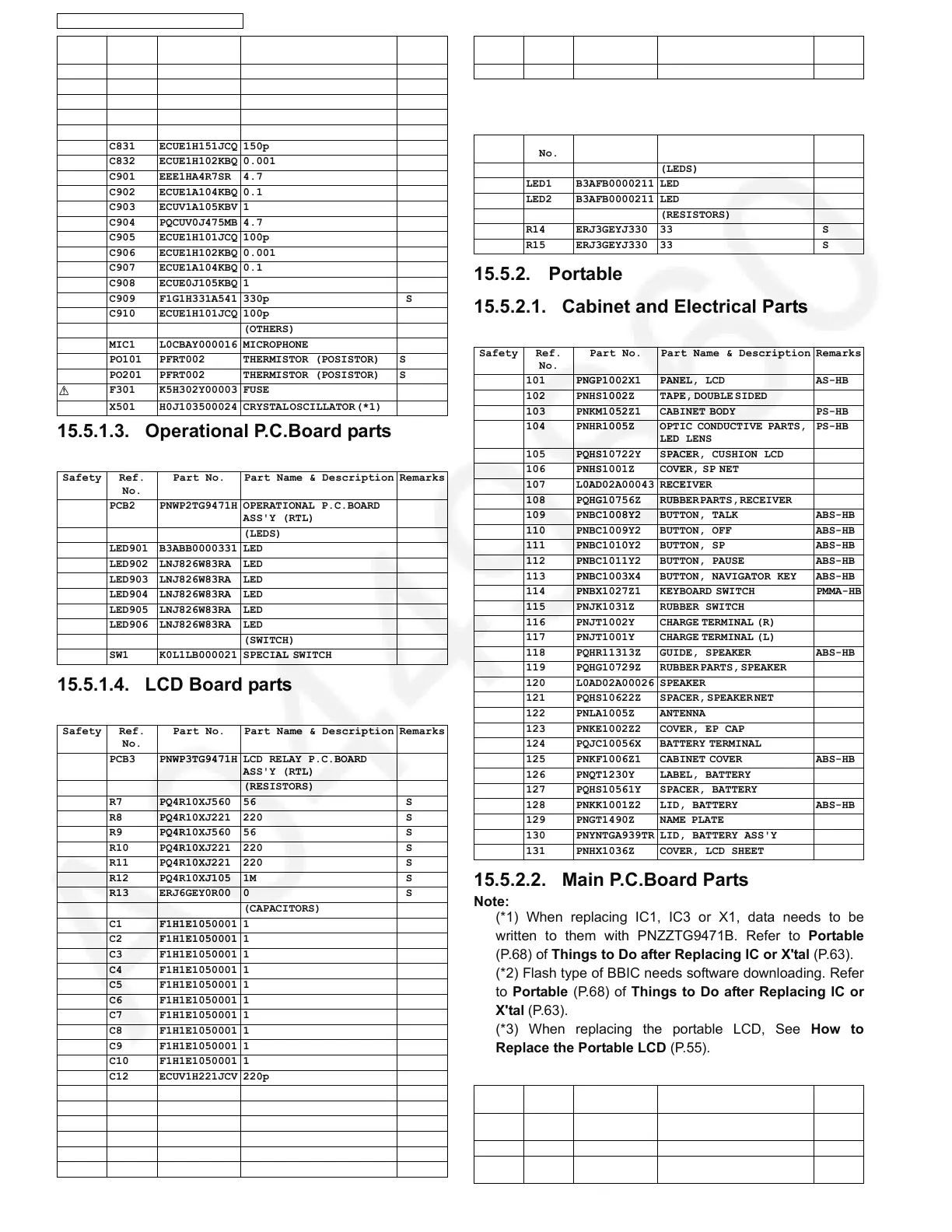

15.5.1.3. Operational P.C.Board parts
15.5.1.4. LCD Board parts
15.5.1.5. LED Board parts
15.5.2. Portable
15.5.2.1. Cabinet and Electrical Parts
15.5.2.2. Main P.C.Board Parts
Note:
(*1) When replacing IC1, IC3 or X1, data needs to be
written to them with PNZZTG9471B. Refer to Portable
(P.68) of Things to Do after Replacing IC or X'tal (P.63).
(*2) Flash type of BBIC needs software downloading. Refer
to Portable (P.68) of Things to Do after Replacing IC or
X'tal (P.63).
(*3) When replacing the portable LCD, See How to
Replace the Portable LCD (P.55).
C803 ECUE1H7R0CCQ 7
C814 ECUE1H100DCQ 10p
C819 ECUE1H100DCQ 10p
C821 ECUE1H220JCQ 22p
C824 ECUE1H220JCQ 22p
C831 ECUE1H151JCQ 150p
C832 ECUE1H102KBQ 0.001
C901 EEE1HA4R7SR 4.7
C902 ECUE1A104KBQ 0.1
C903 ECUV1A105KBV 1
C904 PQCUV0J475MB 4.7
C905 ECUE1H101JCQ 100p
C906 ECUE1H102KBQ 0.001
C907 ECUE1A104KBQ 0.1
C908 ECUE0J105KBQ 1
C909 F1G1H331A541 330p S
C910 ECUE1H101JCQ 100p
(OTHERS)
MIC1 L0CBAY000016 MICROPHONE
PO101 PFRT002 THERMISTOR (POSISTOR) S
PO201 PFRT002 THERMISTOR (POSISTOR) S
F301 K5H302Y00003 FUSE
X501 H0J103500024 CRYSTAL OSCILLATOR (*1)
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB2 PNWP2TG9471H OPERATIONAL P.C.BOARD
ASS'Y (RTL)
(L ED S)
LED901 B3ABB0000331 LED
LED902 LNJ826W83RA LED
LED903 LNJ826W83RA LED
LED904 LNJ826W83RA LED
LED905 LNJ826W83RA LED
LED906 LNJ826W83RA LED
(SWITCH)
SW1 K0L1LB000021 SPECIAL SWITCH
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB3 PNWP3TG9471H LCD RELAY P.C.BOARD
ASS'Y (RTL)
(RESISTORS)
R7 PQ4R10XJ560 56 S
R8 PQ4R10XJ221 220 S
R9 PQ4R10XJ560 56 S
R10 PQ4R10XJ221 220 S
R11 PQ4R10XJ221 220 S
R 1 2 P Q 4 R 1 0 X J 1 0 5 1 M S
R13 ERJ6GEY0R00 0 S
(CAPACITORS)
C1 F1H1E1050001 1
C2 F1H1E1050001 1
C3 F1H1E1050001 1
C4 F1H1E1050001 1
C5 F1H1E1050001 1
C6 F1H1E1050001 1
C7 F1H1E1050001 1
C8 F1H1E1050001 1
C9 F1H1E1050001 1
C10 F1H1E1050001 1
C12 ECUV1H221JCV 220p
C13 ECUV1H221JCV 220p
C14 ECUV1H680JCV 68p
C15 ECUV1H101JCV 100p
C16 ECUV1H221JCV 220p
(CONNECTORS)
CN1 K1MN08BA0111 CONNECTOR
Safety Ref.
No.
Part No. Part Name & Description Remarks
CN2 K1MN20BA0111 CONNECTOR
Safety Ref.
No.
Part No. Part Name & Description Remarks
(L ED S)
LED1 B3AFB0000211 LED
LED2 B3AFB0000211 LED
(RESISTORS)
R14 ERJ3GEYJ330 33 S
R15 ERJ3GEYJ330 33 S
Safety Ref.
No.
Part No. Part Name & Description Remarks
101 PNGP1002X1 PANEL, LCD AS-HB
102 PNHS1002Z TAPE, DOUBLE SIDED
103 PNKM1052Z1 CABINET BODY PS-HB
104 PNHR1005Z OPTIC CONDUCTIVE PARTS,
LED LENS
PS-HB
105 PQHS10722Y SPACER, CUSHION LCD
106 PNHS1001Z COVER, SP NET
107 L0AD02A00043 RECEIVER
108 PQHG10756Z RUBBER PARTS, RECEIVER
109 PNBC1008Y2 BUTTON, TALK ABS-HB
110 PNBC1009Y2 BUTTON, OFF ABS-HB
111 PNBC1010Y2 BUTTON, SP ABS-HB
112 PNBC1011Y2 BUTTON, PAUSE ABS-HB
113 PNBC1003X4 BUTTON, NAVIGATOR KEY ABS-HB
114 PNBX1027Z1 KEYBOARD SWITCH PMMA-HB
115 PNJK1031Z RUBBER SWITCH
116 PNJT1002Y CHARGE TERMINAL (R)
117 PNJT1001Y CHARGE TERMINAL (L)
118 PQHR11313Z GUIDE, SPEAKER ABS-HB
119 PQHG10729Z RUBBER PARTS, SPEAKER
1 2 0 L 0 A D 0 2 A 0 0 0 2 6 S P E A K E R
121 PQHS10622Z SPACER, SPEAKER NET
122 PNLA1005Z ANTENNA
123 PNKE1002Z2 COVER, EP CAP
124 PQJC10056X BATTERY TERMINAL
125 PNKF1006Z1 CABINET COVER ABS-HB
126 PNQT1230Y LABEL, BATTERY
127 PQHS10561Y SPACER, BATTERY
128 PNKK1001Z2 LID, BATTERY ABS-HB
129 PNGT1490Z NAME PLATE
130 PNYNTGA939TR LID, BATTERY ASS'Y
131 PNHX1036Z COVER, LCD SHEET
Safety Ref.
No.
Part No. Part Name & Description Remarks
PCB100 PNWPTGA939TR MAIN P.C.BOARD ASS'Y
(RTL)
(ICs)
IC1 C1CB00002906 IC (BBIC (FLASH)) (*1)
( * 2 )
Safety Ref.
No.
Part No. Part Name & Description Remarks
