Panasonic KX-TG9471B

41
KX-TG9471B/KX-TG9472B/KX-TGA939T
(K)* Transmitted Power Con-
firmation
- Remove the Antenna before starting step from 1 to 7.
1. Configure the DECT tester (CMD60) as follows;
<Setting>
• Short A_1 and GND.
•Test mode: FP
• Traffic Carrier: 2
• Traffic Slot: 4
• Mode: Loopback
• PMID: 00000
• RF LEVEL = -70 dBm.
2. Execute the command “testmode”.
3. Execute the command “sendchar dmv 2 2”.
4. Check that “Signalling Status” has been set to “Locked”, then press “ACCEPT
RFPI”.
5. Initiate connection from Dect tester (“set up connect”)
6. Execute the command “ANT1”.
7. Confirm that the NTP value at ANT is 17dBm ~ 20.5 dBm.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811

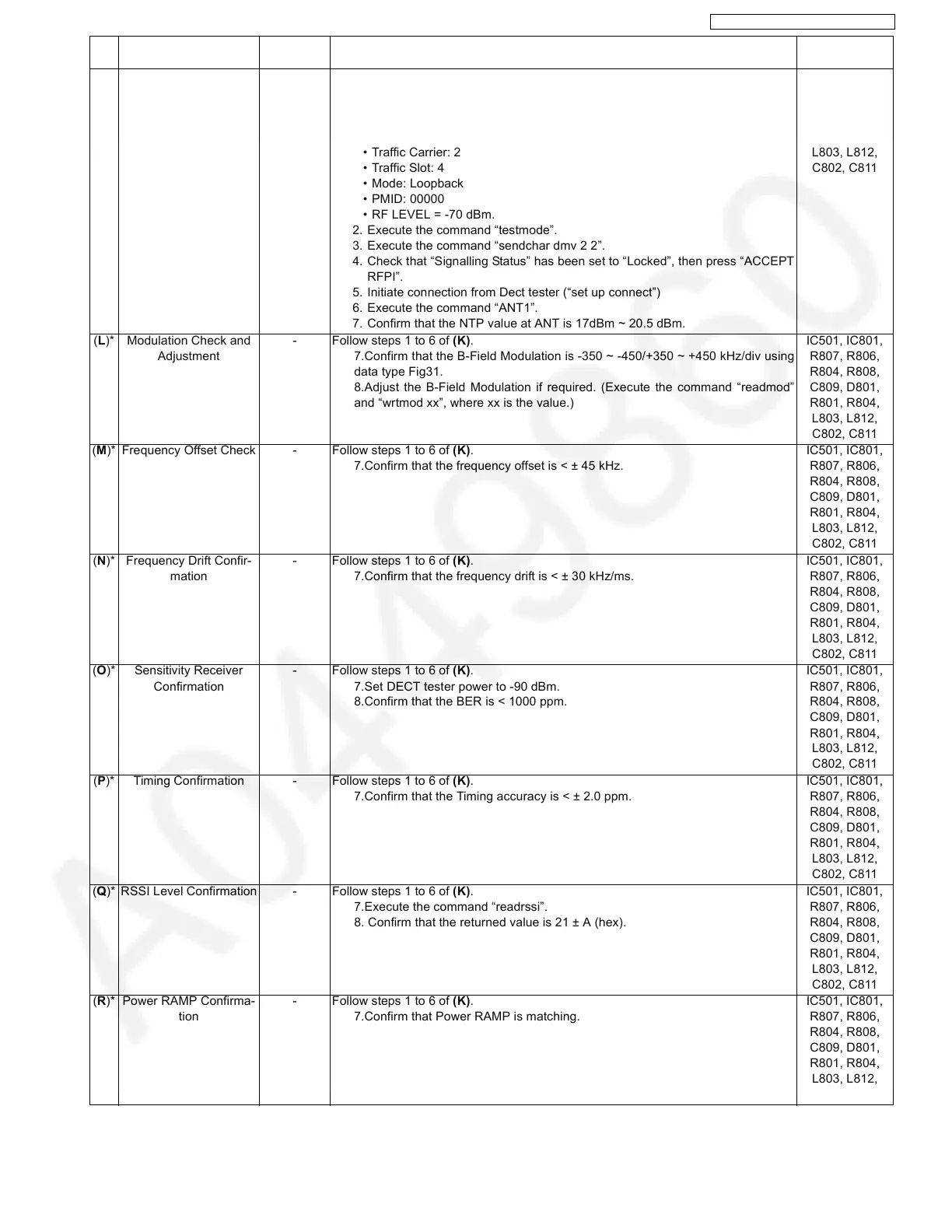

(L)* Modulation Check and
Adjustment
- Follow steps 1 to 6 of (K).
7.Confirm that the B-Field Modulation is -350 ~ -450/+350 ~ +450 kHz/div using
data type Fig31.
8.Adjust the B-Field Modulation if required. (Execute the command “readmod”
and “wrtmod xx”, where xx is the value.)
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(M)* Frequency Offset Check - Follow steps 1 to 6 of (K).
7.Confirm that the frequency offset is < ± 45 kHz.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(N)* Frequency Drift Confir-
mation
- Follow steps 1 to 6 of (K).
7.Confirm that the frequency drift is < ± 30 kHz/ms.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(O)* Sensitivity Receiver
Confirmation
- Follow steps 1 to 6 of (K).
7.Set DECT tester power to -90 dBm.
8.Confirm that the BER is < 1000 ppm.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(P)* Timing Confirmation - Follow steps 1 to 6 of (K).
7.Confirm that the Timing accuracy is < ± 2.0 ppm.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(Q)* RSSI Level Confirmation - Follow steps 1 to 6 of (K).
7.Execute the command “readrssi”.
8. Confirm that the returned value is 21 ± A (hex).
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
(R)* Power RAMP Confirma-
tion
- Follow steps 1 to 6 of (K).
7.Confirm that Power RAMP is matching.
IC501, IC801,
R807, R806,
R804, R808,
C809, D801,
R801, R804,
L803, L812,
C802, C811
Items Check
Point
Procedure Check or
Replace Parts
