Panasonic KX-W1500

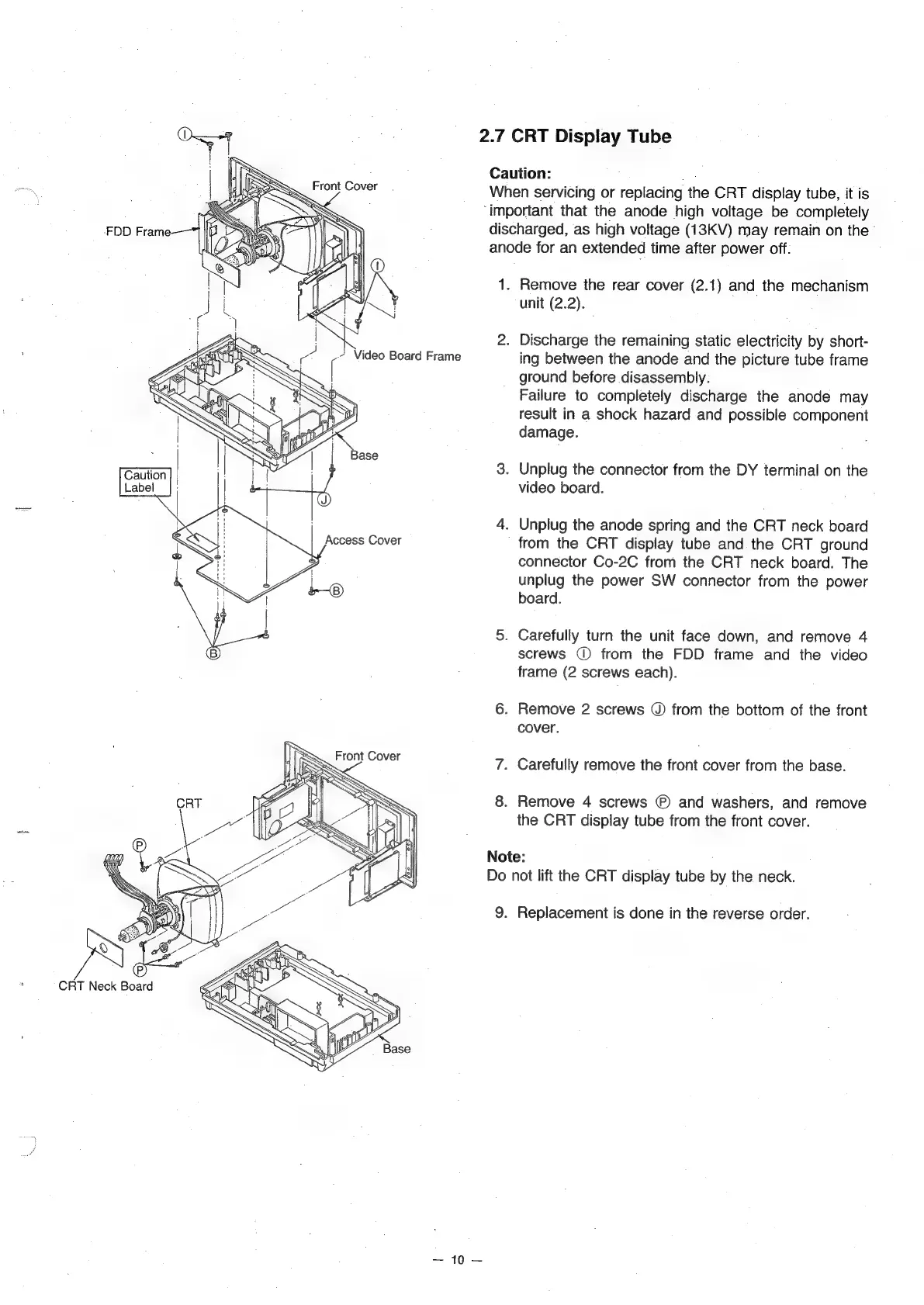

2.7 CRT Display Tube
2240) =
Caution: —
When servicing or replacing the CRT display tube, it is
‘important that the anode high voltage be completely
discharged, as high voltage (13KV) may remain on the’
anode for an extended time after power off.
1.
Remove the rear cover (2.1) and the mechanism
unit (2.2).
. Discharge the remaining static electricity by short-
ing between the anode and the picture tube frame
ground before disassembly.
Failure to completely discharge the anode may
result in a shock hazard and possible component
damage.
. Unplug the connector from the DY terminal on the
video board.
. Unplug the anode spring and the CRT neck board
from the CRT display tube and the CRT ground
connector Co-2C from the CRT neck board. The
unplug the power SW connector from the power
board.
. Carefully turn the unit face down, and remove 4
screws (© from the FDD frame and the video
frame (2 screws each).
. Remove 2 screws @) from the bottom of the front
cover.
. Carefully remove the front cover from the base.
. Remove 4 screws ® and washers, and remove
the CRT display tube from the front cover.
Note:
Do not lift the CRT display tube by the neck.
9.
Replacement is done in the reverse order.
