Panasonic KX-W1500

Selector |=
Y Switch
Board
Rubber Feet
$
;
' Function:

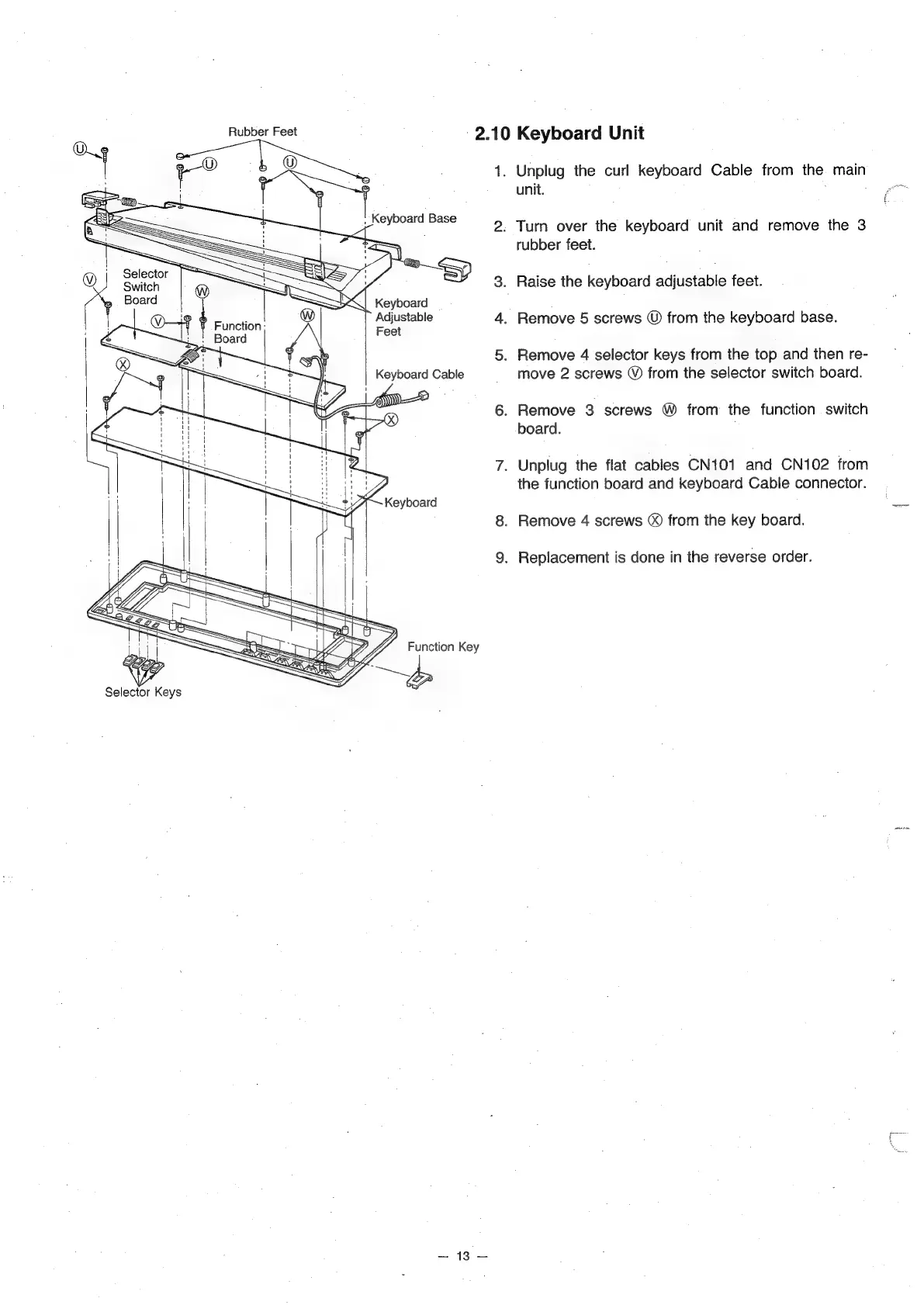

2.10 Keyboard Unit
' Keyboard Base
| Keyboard
Adjustable
Feet
Keyboard Cable
Function Key
3 43 =
1.
Unplug the curl keyboard Cable from the main
unit.
. Turn over the keyboard unit and remove the 3
rubber feet.
. Raise the keyboard adjustable feet.
. Remove 5 screws © from the keyboard base.
. Remove 4 selector keys from the top and then re-
move 2 screws ™) from the selector switch board.
. Remove 3 screws W from the function . switch
board.
. Unplug the flat cables CN101 and CN102 from
the function board and keyboard Cable connector.
. Remove 4 screws ® from the key board.
Replacement is done in the reverse order.
