Panasonic KX-W1500

Access Cover
12
As

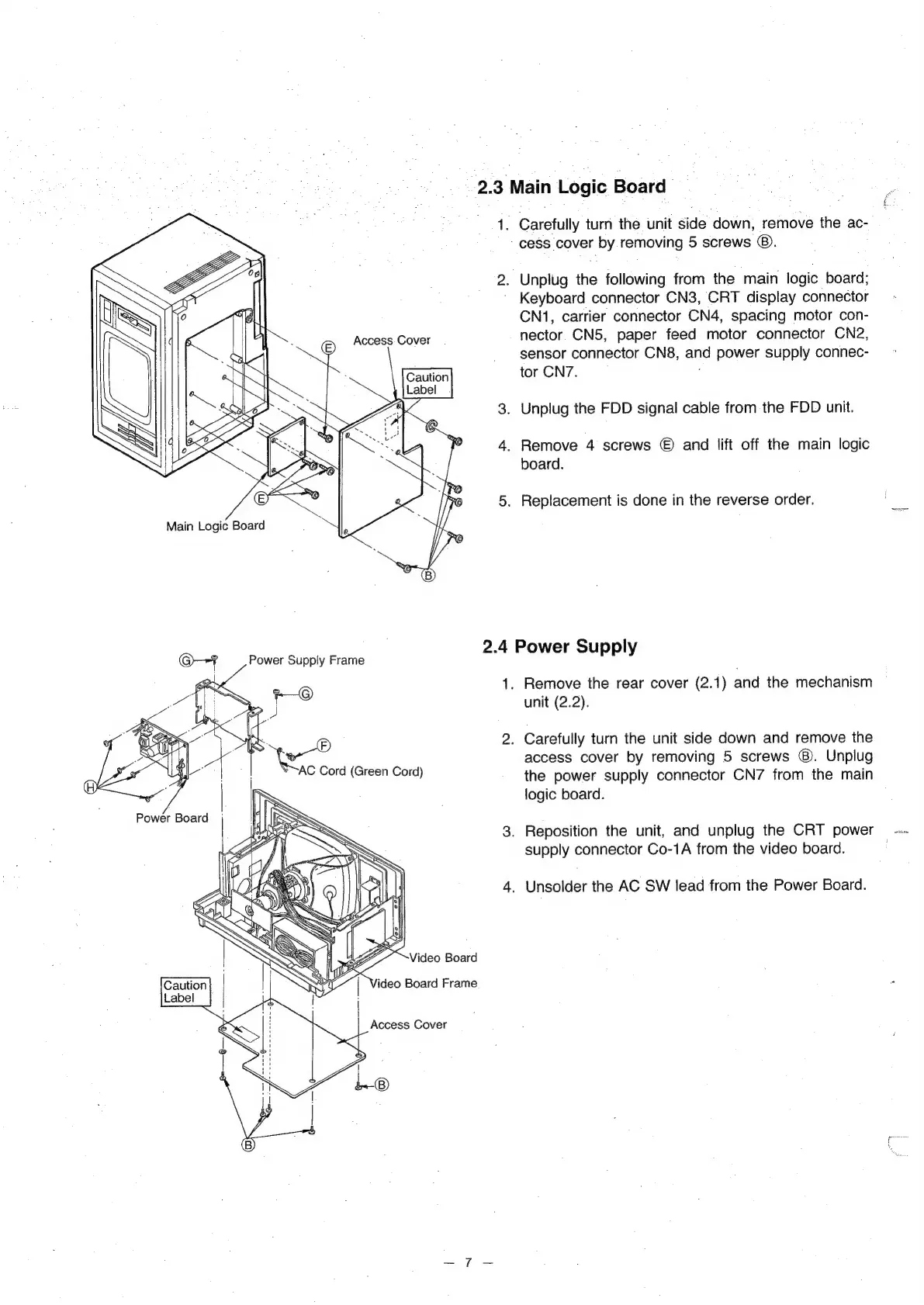

2.3 Main Logic Board
Carefully turn the unit side down, remove the ac-
- cess cover by removing 5 screws ©).
. Unplug the following from the main logic board;
Keyboard connector CN3, CRT display connector
CN1, carrier connector CN4, spacing motor con-
nector CN5, paper feed motor connector CN2,
sensor connector CN8, and power supply connec-
tor CN7. ;
. Unplug the FDD signal cable from the FDD unit.
. Remove 4 screws ©) and lift off the main logic
board.
Replacement is done in the reverse order.
2.4 Power Supply
Remove the rear cover (2.1) and the mechanism —
unit (2.2).
. Carefully turn the unit side down and remove the
access cover by removing 5 screws ®. Unplug
the power supply connector CN7 from the main
logic board.
. Reposition the unit, and unplug the CRT power
supply connector Co-1A from the video board.
. Unsolder the AC SW lead from the Power Board.
