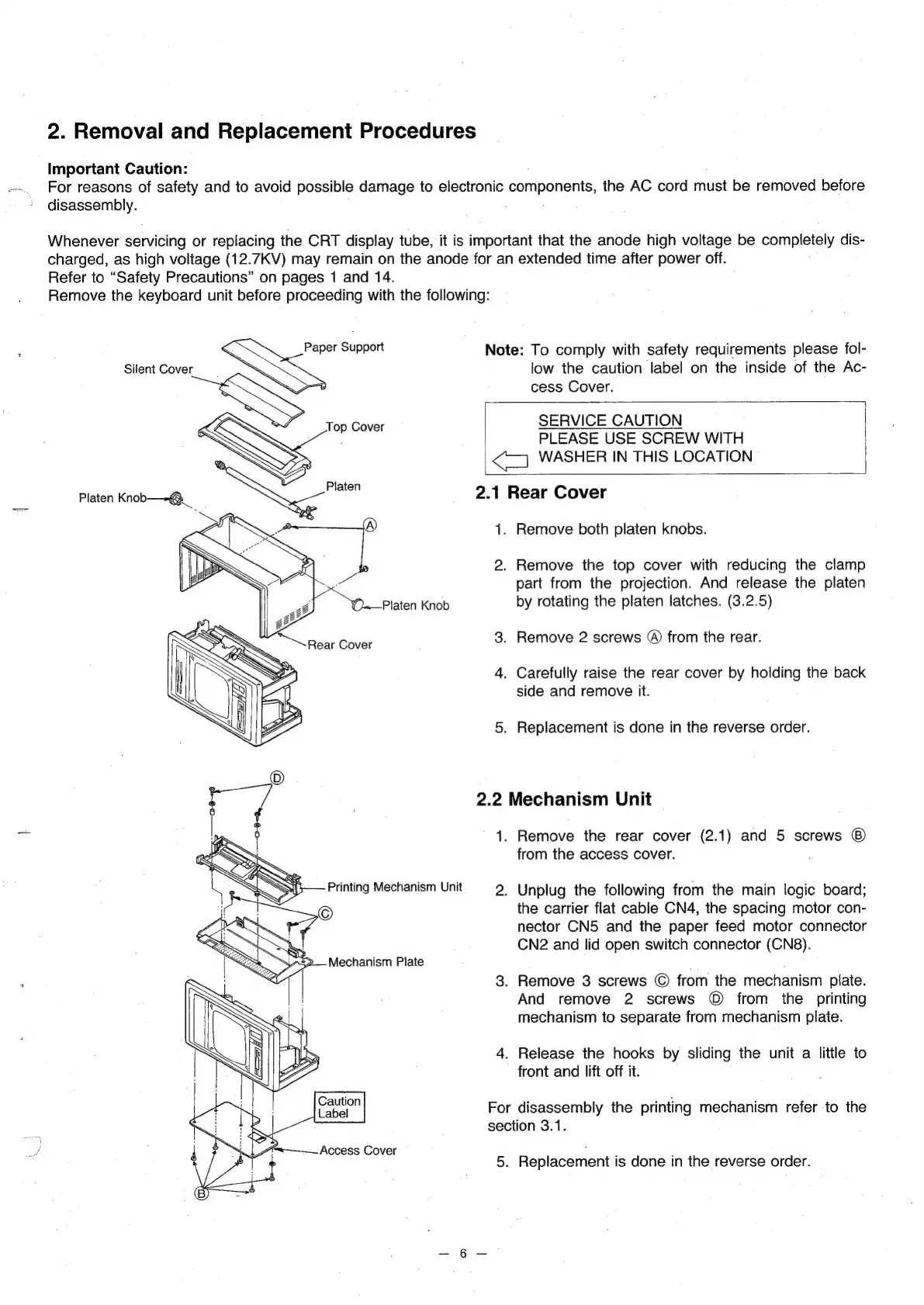

2.
Removal
and
Replacement
Procedures
Important
Caution:
For
reasons
of
safety
and
to
avoid
possible
damage
to
electronic
components,
the
AC
cord
must
be
removed
before
disassembly.
Whenever
servicing
or
replacing
the
CRT
display
tube,
it
is
important
that
the
anode
high
voltage
be
completely
dis-
charged,
as
high
voltage
(12.7KV)
may
remain
on
the
anode
for
an
extended
time
after
power
off.
Refer
to
“Safety
Precautions”
on
pages
1
and
14.
Remove
the
keyboard
unit
before
proceeding
with
the
following:
Paper
Support
Note:
To
comply
with
safety
requirements
please
fol-
Silent
Cover
low
the
caution
label
on
the
inside
of
the
Ac-
cess
Cover.
SERVICE
CAUTION
PLEASE
USE
SCREW
WITH
Platen
Platen
Knob—-@
A
Printing
Mechanism
Unit
2
Mechanism
Plate
1.
2.
1.
2.1
Rear
Cover
Se
|
<=)
WASHER
IN
THIS
LOCATION
Remove
both
platen
knobs.
Remove
the
top
cover
with
reducing
the
clamp
part
from
the
projection.
And
release
the
platen
by
rotating
the
platen
latches.
(3.2.5)
.
Remove
2
screws
@
from
the
rear.
.
Carefully
raise
the
rear
cover
by
holding
the
back
side
and
remove
it.
.
Replacement
is
done
in
the
reverse
order.
2.2
Mechanism
Unit
Remove
the
rear
cover
(2.1)
and
5
screws
from
the
access
cover.
.
Unplug
the
following
from
the
main
logic
board;
the
carrier
flat
cable
CN4,
the
spacing
motor
con-
nector
CN5
and
the
paper
feed
motor
connector
CN2
and
lid
open
switch
connector
(CN8).
.
Remove
3
screws
©
from
the
mechanism
plate.
And
remove
2
screws
©
from
the
printing
mechanism
to
separate
from
mechanism
plate.
.
Release
the
hooks
by
sliding
the
unit
a
little
to
front
and
lift
off
it.
For
disassembly
the
printing
mechanism
refer
to
the
section
3.1.
5.
Replacement
is
done
in
the
reverse
order:
