Panasonic KX-W1500

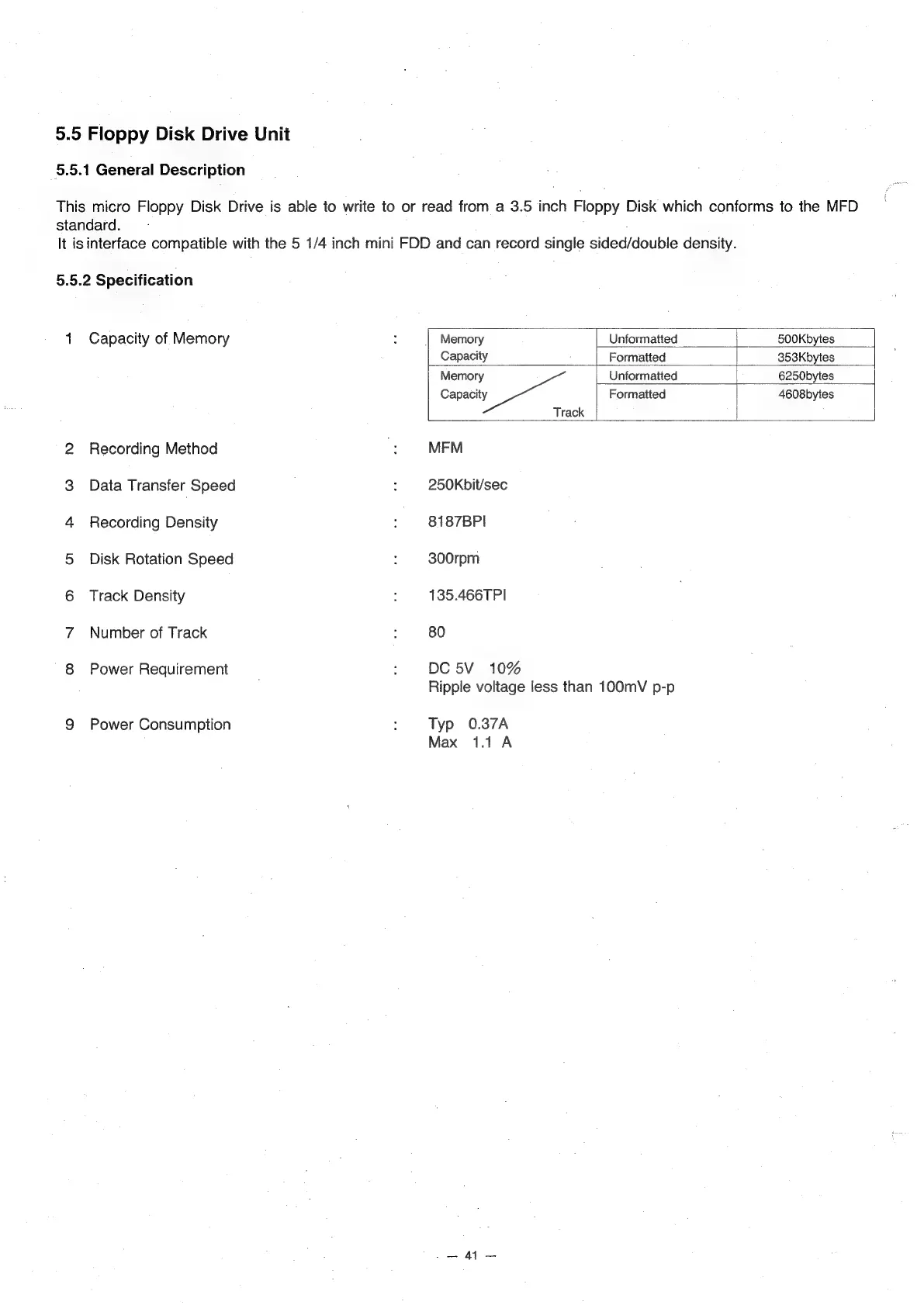

5.5 Floppy Disk Drive Unit
5.5.1 General Description
This micro Floppy Disk Drive is able to write to or read from a 3.5 inch Floppy Disk which conforms to the MFD
standard. :
It is interface compatible with the 5 1/4 inch mini FDD and can record single sided/double density.
5.5.2 Specification
1 Capacity of Memory : Memory Unformatted 500Kbytes
Capacity Formatted 353Kbytes
Memory Unformatted 6250bytes
Cepeay Formatted A4608bytes
Track
2 Recording Method ': MFM
3 Data Transfer Speed : 250Kbit/sec
4 Recording Density : 8187BPI
5 Disk Rotation Speed : 300rpm
6 Track Density : 135.466TPI
7 Number of Track : 80
8 Power Requirement : DC5V 10%
Ripple voltage less than 100mV p-p
9 Power Consumption ; Typ 0.37A
Max 1.1 A
