Panasonic KX-W1500

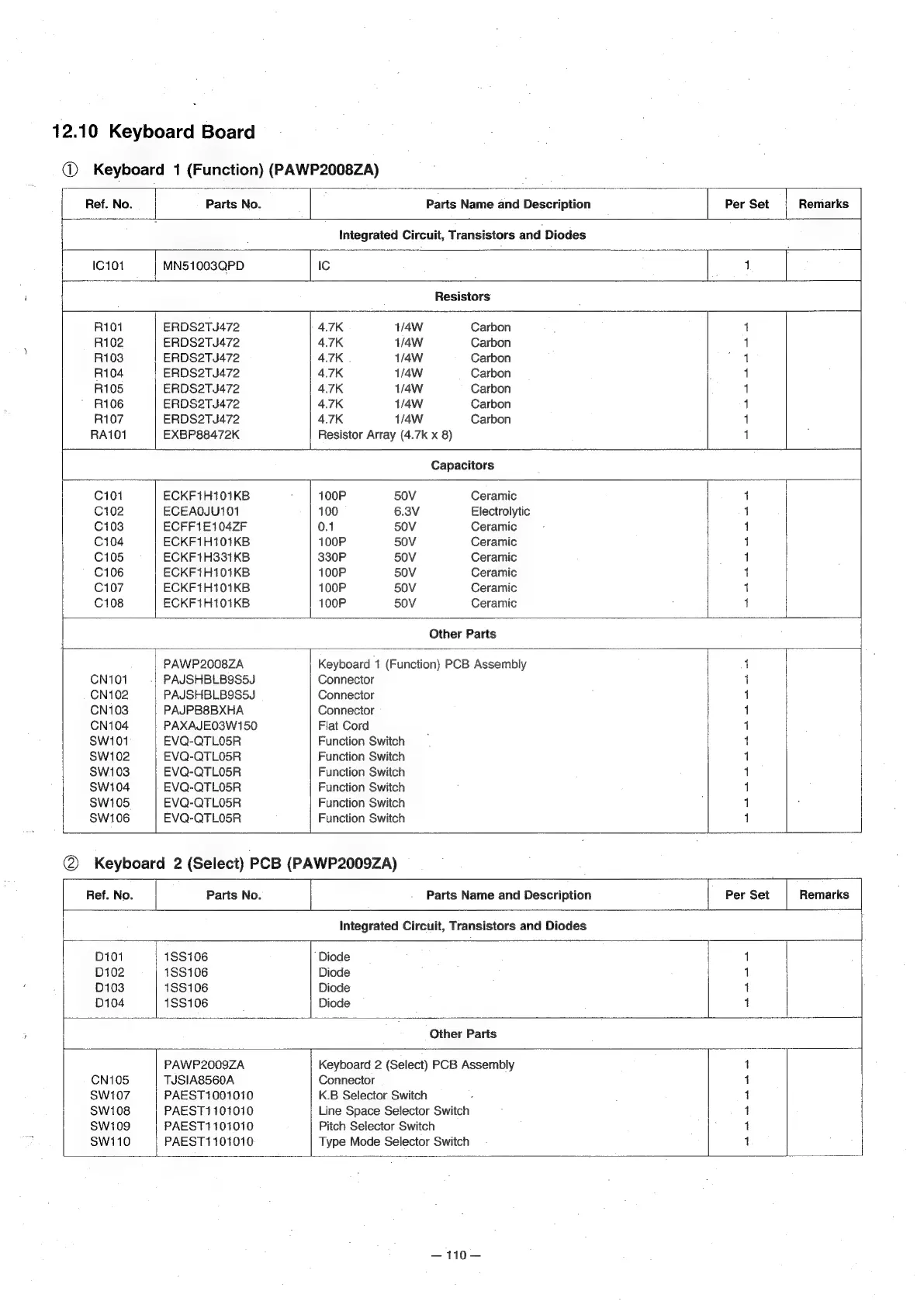

12.10 Keyboard Board
‘oO Keyboard 1 (Function) (PAWP2008ZA)
Ref. No. Parts No. Parts Name and Description Per Set Remarks
Integrated Circuit, Transistors and Diodes
IC101 MN51003QPD Ic 1
Resistors
R101 ERDS2TJ472 4.7K 1/4W Carbon 1
R102 ERDS2TJ472 4.7K 1/4W Carbon 1
R103 ERDS2TJ472 ATK . 1/4W Carbon 1
R104 ERDS2TJ472 4.7K 1/4W Carbon 1
R105 ERDS2TJ472 4.7K 1/4W Carbon 1
R106 ERDS2TJ472 4.7K 1/4W Carbon 1
R107 ERDS2TJ472 4.7K 1/4W Carbon 1
RA101 EXBP88472K Resistor Array (4.7k x 8) 1
Capacitors
Ci01 ECKF1H101KB 100P 50V Ceramic 1
C102 ECEAQOJU101 100 6.3V Electrolytic 1
C103 ECFF1E104ZF 0.1 50V Ceramic 4
C104 ECKF1H101KB 100P 50V Ceramic 1
C105 ECKF1H331KB 330P 50V Ceramic 1
C106 ECKF1H101KB 100P 50V Ceramic 1
C107 ECKF1H101KB 100P 50V Ceramic 1
C108 ECKF1H101KB 100P 50V Ceramic 1
Other Parts
| Re SIAR ae Sa ae : —_—_———_|
; PAWP2008ZA Keyboard 1 (Function) PCB Assembly 1
CN101 PAJSHBLB9S5J Connector 1
CN102 PAJSHBLB9S5J Connector 1
CN103 PAJPB8BXHA Connector 1
CN104 PAXAJE03W150 Flat Cord 1
Sw101 EVQ-QTLO5R Function Switch 1
Sw102 EVQ-QTLO5R Function Switch 1
SW103 EVQ-QTLO5R Function Switch 1
SW104 EVQ-QTLO5R Function Switch 1
SW105 EVQ-QTLO5R Function Switch 1
SW106 EVQ-QTLO5R Function Switch 1
Keyboard 2 (Select) PCB (PAWP2009ZA)
Ref. No. Parts No. Parts Name and Description Per Set Remarks
Integrated Circuit, Transistors and Diodes
D101 1SS106 ‘Diode 1
D102 1SS106 Diode 1
D103 1SS106 Diode 1
D104 1SS106 Diode 1
Other Parts
PAWP2009ZA Keyboard 2 (Select) PCB Assembly 1
CN105 TJSIA8560A Connector 1
SW107 PAEST1001010 K.B Selector Switch 1
SW108 PAEST1101010 Line Space Selector Switch 1
Swt09 PAEST1101010 Pitch Selector Switch 1
SW110 PAEST1101010 Type Mode Selector Switch 1
— 110 —
