Panasonic KX-W1500

Underscore Spoke
Hammer
Adjustment Screw
Daisywheel Motor
Adjustment
Screw
Daisywheel
. | 1.5~2.0mm
~ HHHHH
Ribbon Tape
Drive Cam
L— /
incsit]
G) Adjustment Screw
Ka
U
Ribbon Holder
eae
[]
(Top View)
ee ee

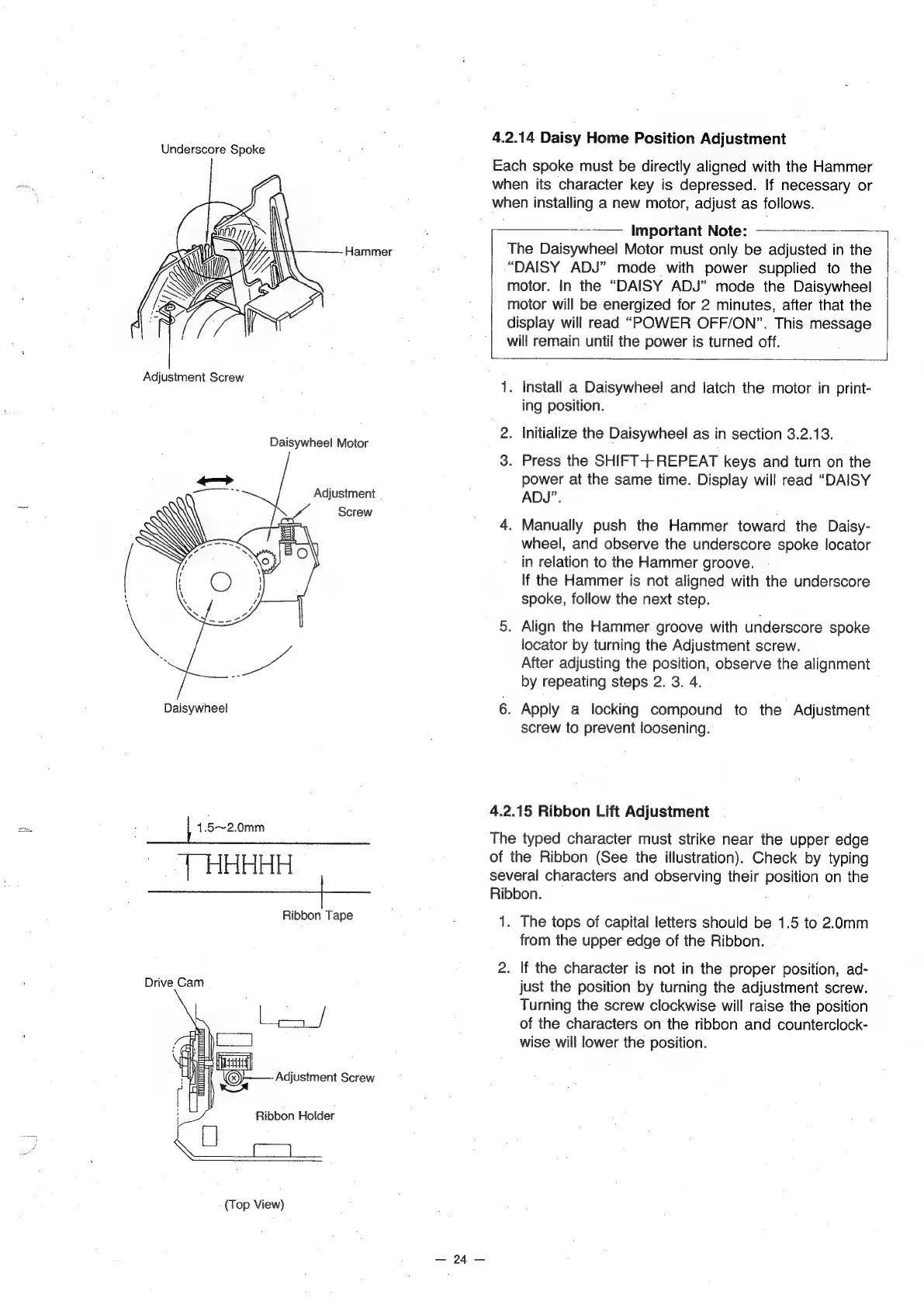

4.2.14 Daisy Home Position Adjustment
Each spoke must be directly aligned with the Hammer
when its character key is depressed. If necessary or
when installing a new motor, adjust as follows.
Important Note:
The Daisywheel Motor must only be adjusted in th
“DAISY ADJ” mode with power supplied to the
motor. In the “DAISY ADJ” mode the Daisywheel
motor will be energized for 2 minutes, after that the
display will read “POWER OFF/ON”. This message
will remain until the power is turned off.
1. Install a Daisywheel and latch the motor in print-
ing position.
2. Initialize the Daisywheel as in section 3.2.13.
3. Press the SHIFT+REPEAT keys and turn on the
power at the same time. Display will read “DAISY
ADJ”.
4. Manually push the Hammer toward the Daisy-
wheel, and observe the underscore spoke locator
in relation to the Hammer groove. -
lf the Hammer is not aligned with the underscore
spoke, follow the next step.
5. Align the Hammer. groove with underscore spoke
locator by turning the Adjustment screw.
After adjusting the position, observe the alignment
by repeating steps 2. 3. 4.
6. Apply a locking compound to the Adjustment
screw to prevent loosening.
4.2.15 Ribbon Lift Adjustment
The typed character must strike near the upper edge
of the Ribbon (See the illustration). Check by typing
several characters and observing their position on the
Ribbon.
1. The tops of capital letters should be 1.5 to 2.0mm
from the upper edge of the Ribbon.
2. If the character is not in the proper position, ad-
just the position by turning the adjustment screw.
Turning the screw clockwise will raise the position
of the characters on the ribbon and counterclock-
wise will lower the position.
