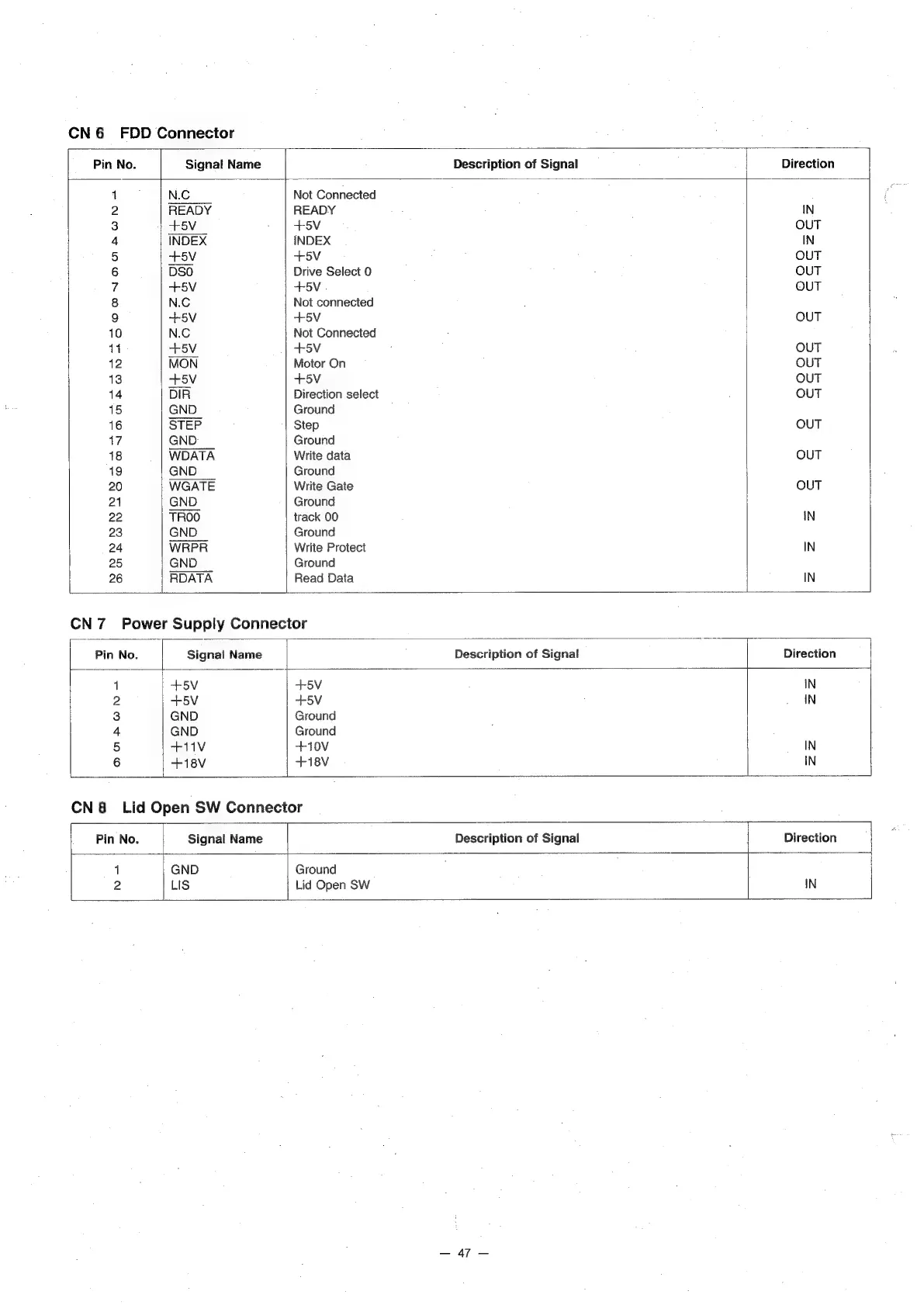

CN 6 FDD Connector
Pin No. Signal Name Description of Signal Direction
1 N.C Not Connected
2 READY READY IN
3 +5V +5V OUT
4 INDEX INDEX IN
5 +5V +5V OUT
6 DSO Drive Select 0 OUT
7 +5V +5V OUT
8 N.C Not connected
9 +5V +5V OUT
10 N.C Not Connected
11 +5V +5V OUT
12 MON Motor On OUT
13 +5V +5V OUT
14 DIR Direction select OUT
15 GND Ground
16 STEP Step OUT
17 GND Ground
18 WDATA Write data OUT
19 GND Ground
20 WGATE Write Gate OUT
21 GND Ground
22 TROO track 00 IN
23 GND Ground
24 WRPR Write Protect IN
25 GND Ground
26 RDATA Read Data IN
CN 7 Power Supply Connector
Pin No. Signal Name Description of Signal Direction
1 +5V +5V IN
2 +5V +5V IN
3 GND Ground
4 GND Ground
5 +11V +10V IN
6 +18V +18V IN
CN 8 _ Lid Open SW Connector
Pin No. Signal Name Description of Signal | Direction
1 GND Ground
2 LIS Lid Open SW IN
— 47 —
