Panasonic KX-W1500

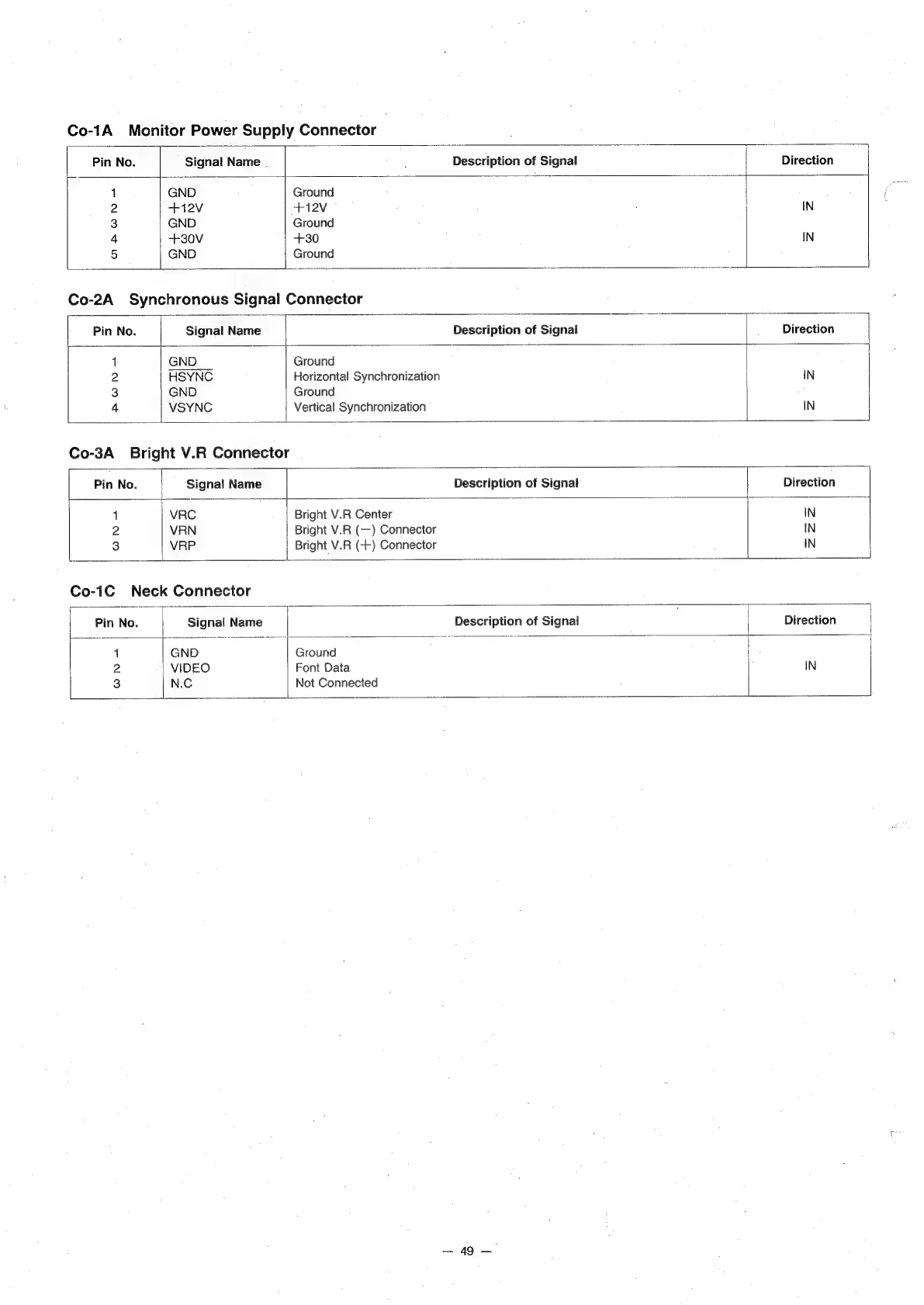

Co-1A Monitor Power Supply Connector
— 49 —
Pin No. Signal Name Description of Signal Direction
1 GND Ground
2 +12V +12Vv IN
3 GND Ground
4 +30V +30 IN
5 GND Ground
Co-2A Synchronous Signal Connector
Pin No. Signal Name Description of Signal Direction
1 GND Ground
2 HSYNC Horizontal Synchronization IN
3 GND Ground
4 VSYNC Vertical Synchronization IN
Co-3A_ Bright V.R Connector
Pin No. Signal Name Description of Signal Direction
1 VRC Bright V.R Center IN
2 VRN Bright V.R (—) Connector IN
3 VRP Bright V.R (++) Connector IN
Co-1C Neck Connector
Pin No Signal Name Description of Signal Direction
1 GND Ground
2 VIDEO Font Data IN
3 N.C Not Connected
