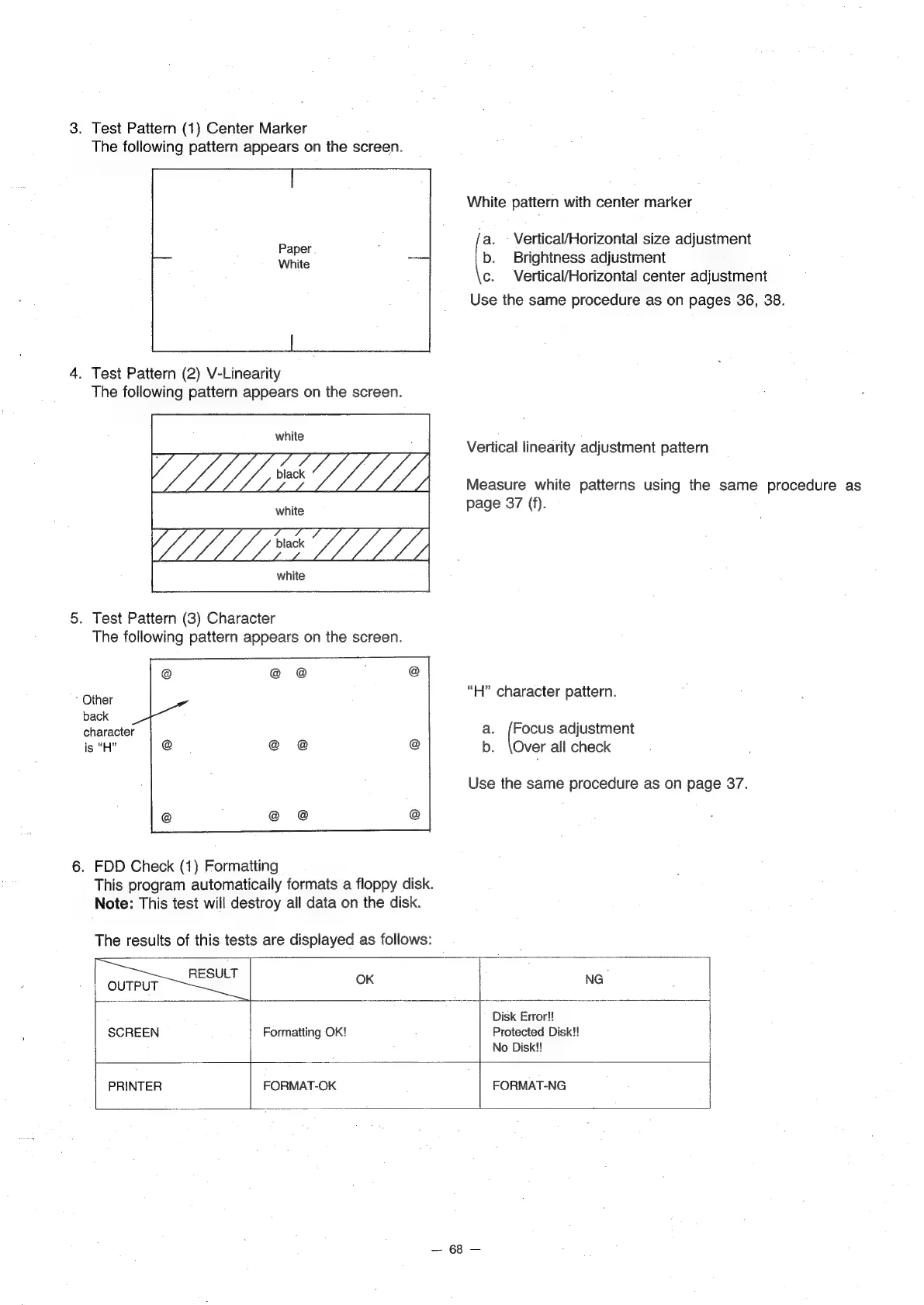

3. Test Pattern (1) Center Marker
The following pattern appears on the screen.
4. Test Pattern (2) V-Linearity
The following pattern appears on the screen.
white
Vids UUEIE,
white
white
LAMM WE,
ea ae
5. Test Pattern (3) Character
The following pattern appears on the screen.
~- Other
back
character
is “H”
6. FDD Check (1) Formatting
This program automatically formats a floppy disk.
Note: This test will destroy all data on the disk.
The results of this tests are displayed as follows:
White pattern with center marker
b. Brightness adjustment
‘a. Vertical/Horizontal size adjustment
c. Vertical/Horizontal center adjustment
Use the same procedure as on pages 36, 38.
Vertical linearity adjustment pattern
Measure white patterns using the same procedure as
page 37 (f).
“H” character pattern.
a. {Focus adjustment
b. \Over all check
Use the same procedure as on page 37.
RESULT ;
OUTPUT OK NG
Disk Error!!
SCREEN Formatting OK! Protected Disk!!
No Disk!!
PRINTER FORMAT-OK FORMAT-NG
